UPSPro, 12/24V 450W OUT, 100Ah SLA Battery, 1200Wh
- SKU: UPL12/24-100-600
$2,295.64 $2,416.46
Product Information

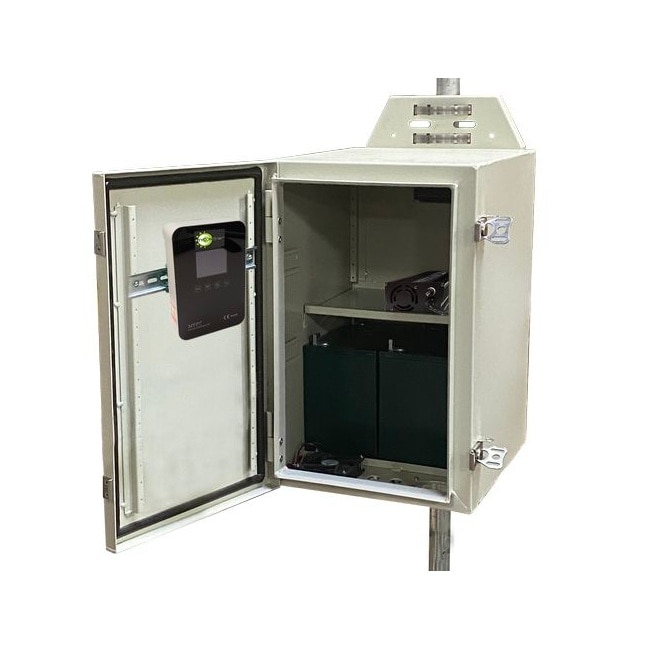

UPSPro 450W 1200VA, 12/24VDC 30A Unregulated Output, 120/240VAC Input, Large Alum Encl, 100Ah AGM Batteries. Solar Ready.
Specifications
Specifications UPL12/24-100-600
| Battery Voltage (DC) | 12VDC or 24VDC (customer configurable) |
| Input Voltage (AC) | 120/240VAC, 50/60Hz, 5A Max. |
| Capacities (Amp Hr) | 100Ah |
| Avail Storage Capacity (Watt Hr) | 1200Whr |
| Max Output Power | 600W |
| Suggested Maximum Load | 450W |
| Maximum Instantaneous Load | 30A 500msec |

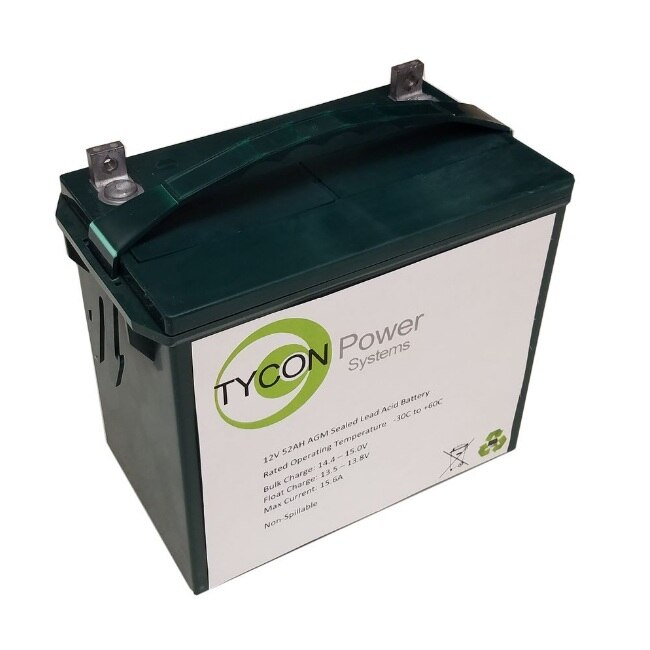

| Battery Type | Maintenance Free,Valve Regulated, Sealed Lead Acid, AGM |
| Battery Life | 5+ years |
| Battery Cable Fuse | 6x32mm 30A 250V Ceramic Fuse |

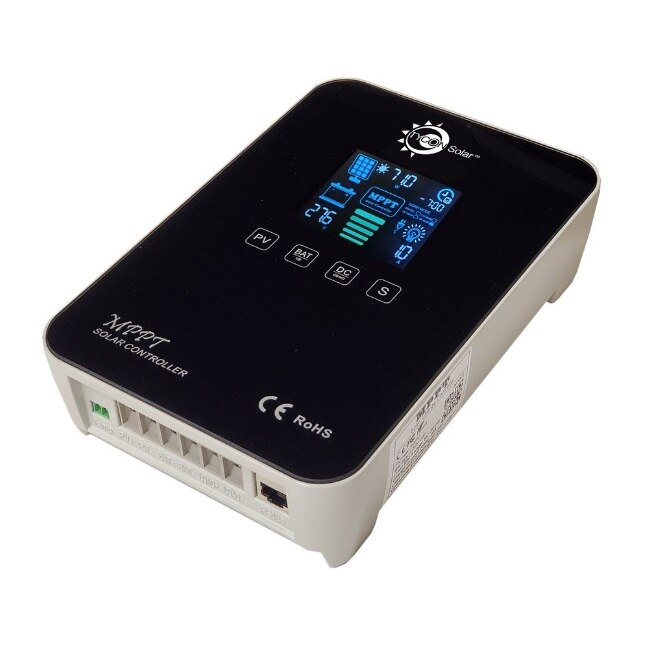

| Controller Type | 60A MPPT Solar Controller with Status Display and 30A Load with on/off switch |
| Maximum Solar Panel Size | 780W @ 12V Battery Config, 1560W @ 24V Battery Config |
| Controller Display Status | Battery Voltage, Charging Voltage, Charging Current, Load Current, Temperature |
| Bulk Charge | 14.4V / 28.8V |
| Float Charge | 13.8V / 27.5V |
| Over-discharge protection | 11V / 22V |
| Over-discharge recovery voltage | 12.6V / 25.2V |
| Controller Self Consumption | <1W |
| Enclosure Type | Pole/Wall Mount Powder Coat Aluminum |
| Enclosure Size | 21 x 14 x 15" (533 x 356 x 381mm) |
| Operating Temperature | -40°C to +65°C (-40°F to 149°F) |
| System Weight (without batteries) | 26lbs (12kg) |
| Battery Weight | 2 x 40lbs (18kg) |
| Certifications | Individual components used have CE Certifications. |
| Warranty | 3 Years |
