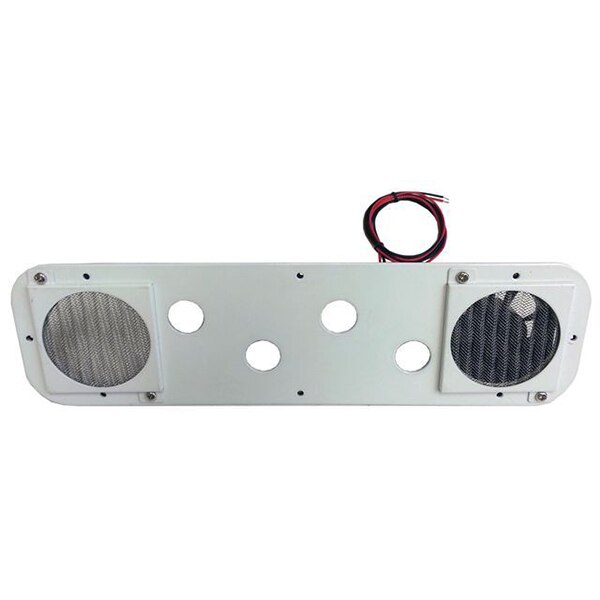

PowerVent system for RPST (ENC-ST-23x14x12) enclosure. 12VDC/24VDC, 45C Thermostat
- SKU: RPST-POWERVENT-24
$13.01 $13.70
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
PowerVent system for RPST (ENC-ST-23x14x12) enclosure. 12VDC/24VDC, 45C Thermostat
Specifications
Specifications RPST-POWERVENT-24
| Voltage Requirements | 12VDC to 24VDC |
| Power Requirements | 1W @ 12VDC - when temperature over 50C (122F) |
| Power Connection | 1 meter 22AWG 2 Conductor red/black wire |
| Fan Air Volume | 14 CFM min |
| Filter Mesh x 2 | Stainless Mesh - 0.050" Openings |
| Cable Ports | 29mm holes x 4 for Cable Gland |
| Mounting | 8 Existing Screws in Enclosure Bottom Plate |
| Operating Temperature | -30C to +65C (-22F to 149F) |
| Humidity (RH) 5% | 95% (non-condensing) |
