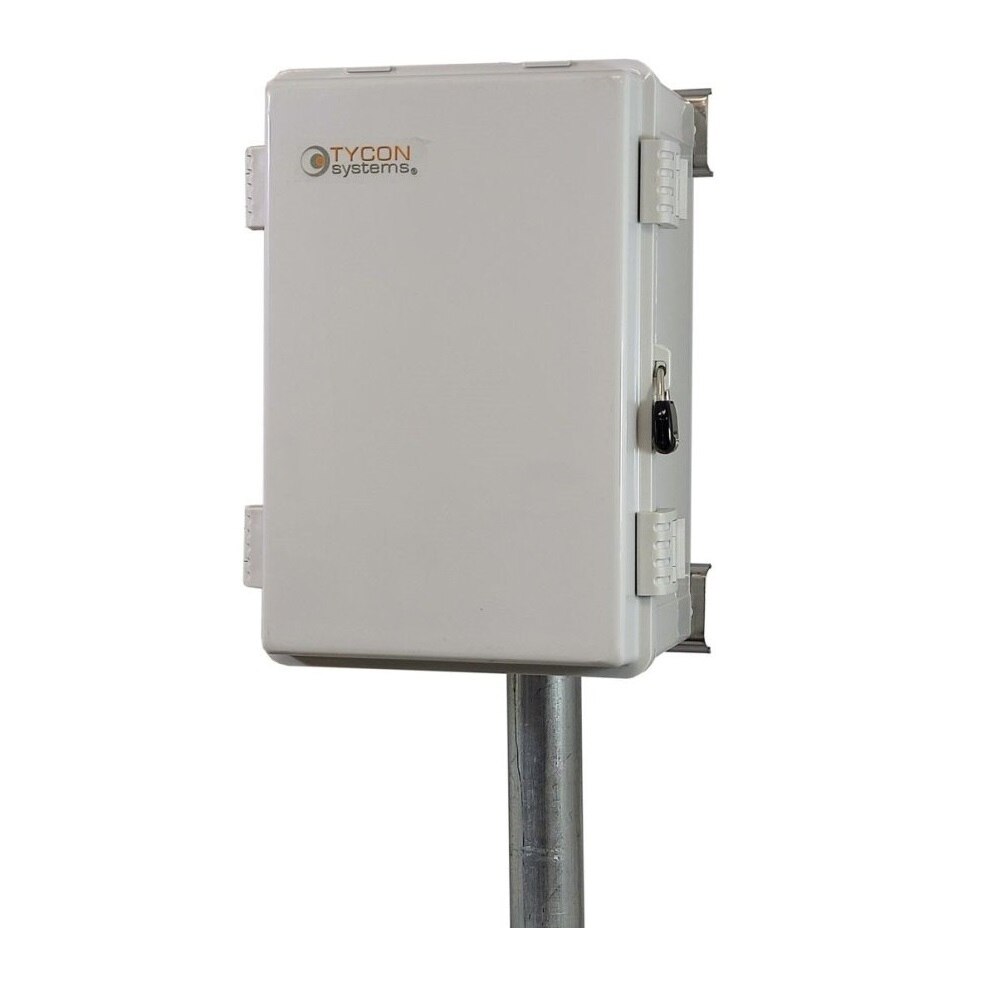

UV Resistant Polycarbonate IP66 Enclosure
- SKU: ENC-PL-15x11x6
$121.65 $128.06
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
UV Resistant Polycarbonate IP66 Enclosure
Specifications
Specifications ENC-PL-15x11x6
| Enclosure Type | UV Protected Polycarbonate |
| Weatherproofing | Nema 4X / IP65 |
| Enclosure Mounting | Wall or pole mount with included hardware |

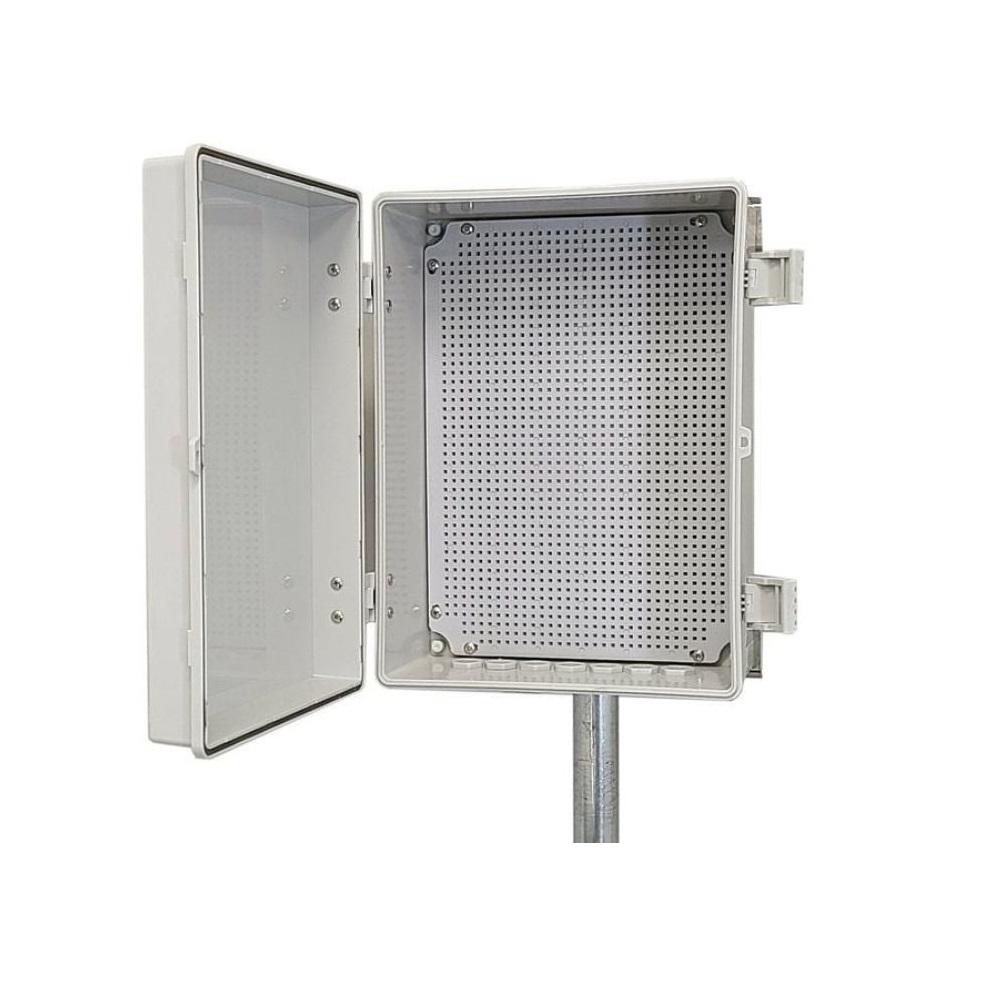

| Interior Mounts | Perforated ABS Plate, 7.5 x 7.5mm grid |
| Recommended screw for plate | #8 x 3/8 (4 x 9.5mm) sheet metal screw |
| Feedthrough Holes | Qty 7 20mm (0.787”) diameter |

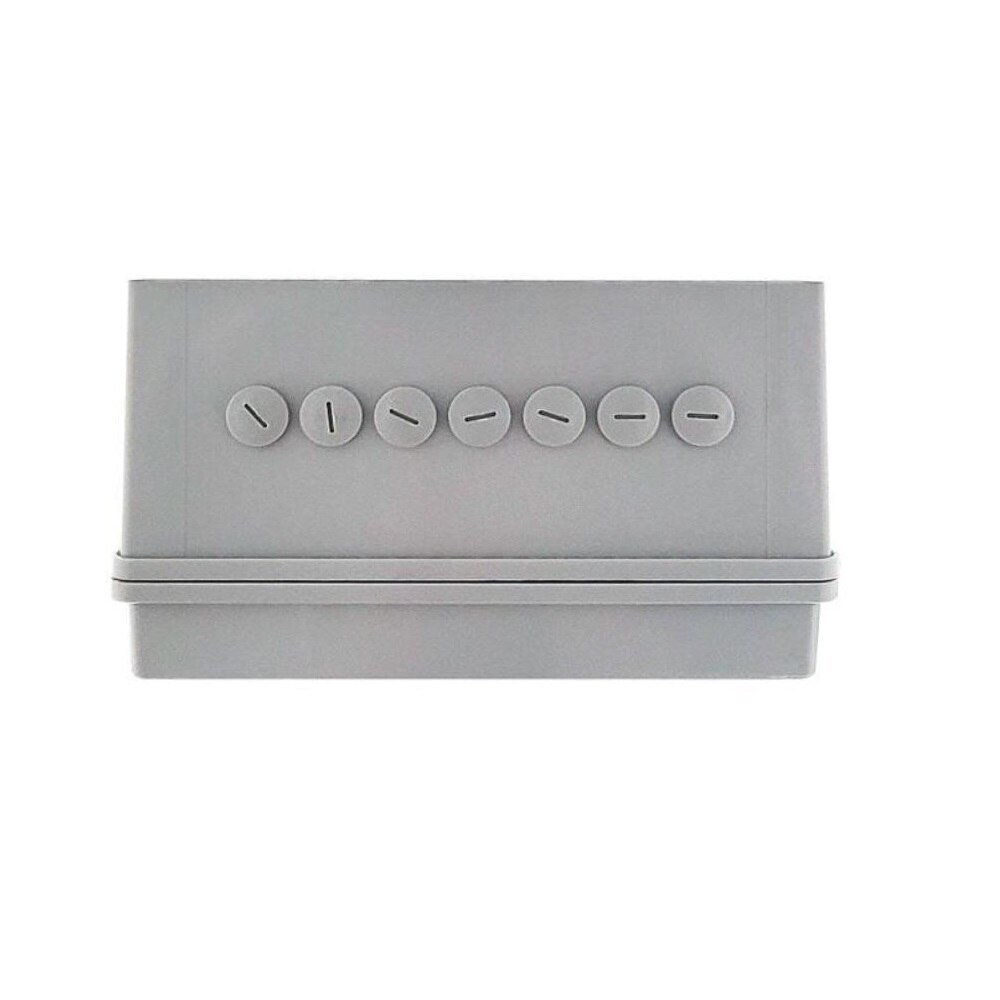

| Waterproof Hole Plugs | Qty 7 20mm gasketed screw plugs(included) |
| Pole Mount Type | Qty 2 Stainless Steel Hose Clamps (included) |
| External Size (LxWxD) | 15.7 x 12.7 x 6.7" (400 x 323 x 170mm) |
| Internal Size (LxWxD) | 15 x 11 x 6.5" (381 x 279 x 165mm) |
| Weight | 6lb (2.7kg) |
| Warranty | 3 Years |
