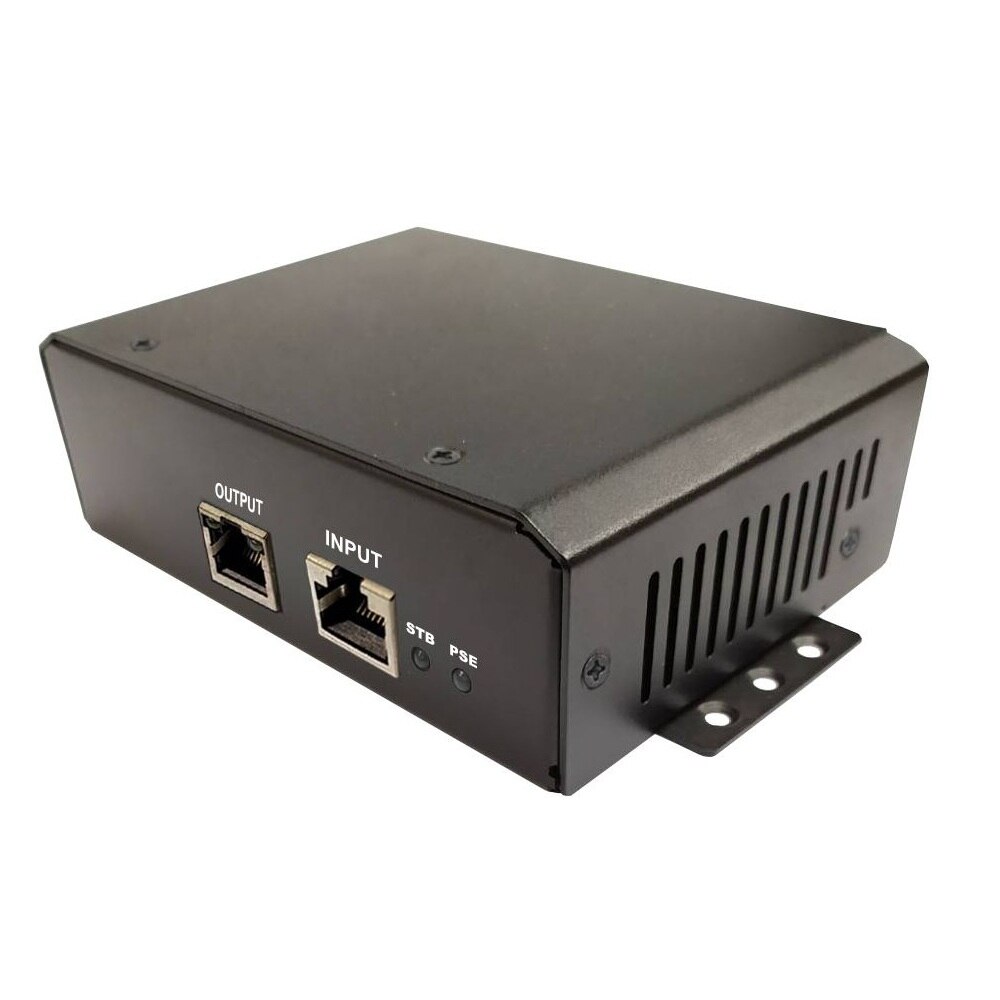

Gigabit 10-60VDC IN 56VDC OUT 70W 4 Pair Hi Power 802.3at PoE inserter. For Axis Q60 series PTZ cameras. UPOE Compatible. Metal Housing
- SKU: TP-DC-1256GD-VHP
$332.80 $350.32
Product Information
Gigabit 10-60VDC IN 56VDC OUT 70W 4 Pair Hi Power 802.3at PoE inserter. For Axis Q60 series PTZ cameras. UPOE Compatible. Metal Housing
Specifications
Specifications
| Input Voltage | +/- 10VDC to 60VDC |

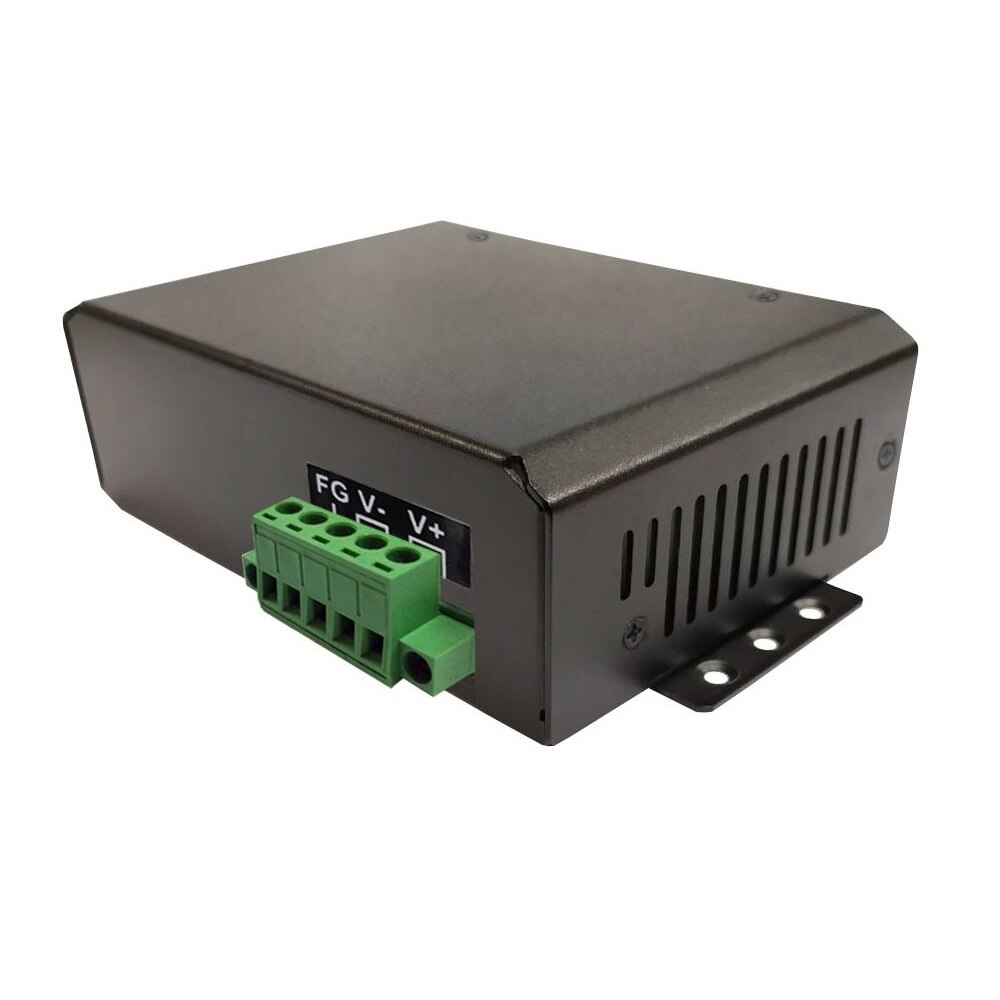

| DC Input Connector | Removeable Screw Type Compression Wire Terminal, 5 Pin (12 AWG Max) |
| POE Specification | 802.3bt Class 8 ( 8 Wire , 4 Pair ) 3456V+, 1278V- |
| LED Definition | RJ45 Output Connector: Left LED: Green = Pins 1,2,3,6 are Powered Right LED: Green = Pins 4,5,7,8 are Powered Main LED: STB LED: RED = PoE Output is OFF PSE LED: GREEN = PoE Output is ON |
| Output Voltage (+/-2.5%) | 56VDC |
| Data in & Data/POE Output Connector | RJ45 (Shielded) |
| Data Rate | Up to 5 Gigabit |
| Output Current (max) | 1.25A |
| Output Power (max) | 70W |
| Self-Consumption Power | 2W |
| Low Voltage Protection | ~8-9VDC Unit will power down to conserve battery |
| Other protections | Overcurrent (110% of rated), Short Circuit, Reverse Polarity, Surge Protection |
| Efficiency | 85% Min (10VDC to 60VDC Input) (Full Load) |
| Line Regulation, Ripple, Noise | 1% |
| Load Regulation | 5% |
| EMC Standards | EN55032/55035 |
| Safety Standards | EN62368-1 |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Operating Humidity (RH) | 5% - 90% |
| MTBF (Mean Time Between Failure) | 102,277 Hours |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Dimensions (LxWxH) | 86 x 139 x 40mm (3.4 x 5.5 x 1.57”) |
| Weight | 550g (19.4oz) |
| Warranty | 3 Years |
