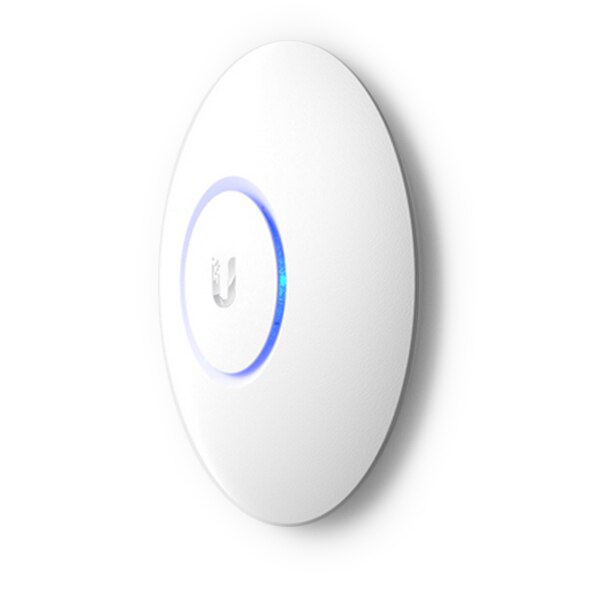

UniFi AP AC Lite 802.11ac Dual Radio Access Point Ideal for High-Performance Network. 160x31.45mm, For Indoor Use, 2.4 GHz Speed 300 Mbps, 5 GHz Speed 867 Mbps, One 10/100/1000 Ethernet Port
- SKU: UAP-AC-LITE-US
$122.54
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Ubiquiti Networks UniFi AP AC Lite 802.11ac Dual Radio Access Point Ideal for High-Performance Network. 160x31.45mm, For Indoor Use, 2.4 GHz Speed 300 Mbps, 5 GHz Speed 867 Mbps, One 10/100/1000 Ethernet Port
Specifications
| Dimensions | 160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24") |
| Weight With Mounting Kits | 170 g (6.0 oz) 185 g (6.5 oz) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Buttons | Reset |
| Antenna | (2) Dual-Band Antennas, 3 dBi Each |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Power Method | Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter* |
| Maximum Power Consumption | 6.5W |
| Maximum TX Power 2.4GHz 5GHz | 20 dBm 20 dBm |
| BSSID | Up to Four per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 200+ |
| Standard | Data Rates |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 1, 2, 5.5, 11 Mbps |
