EdgeSwitch, 48-port, Lite, Non-POE
- SKU: ES-48-LITE
Product Information

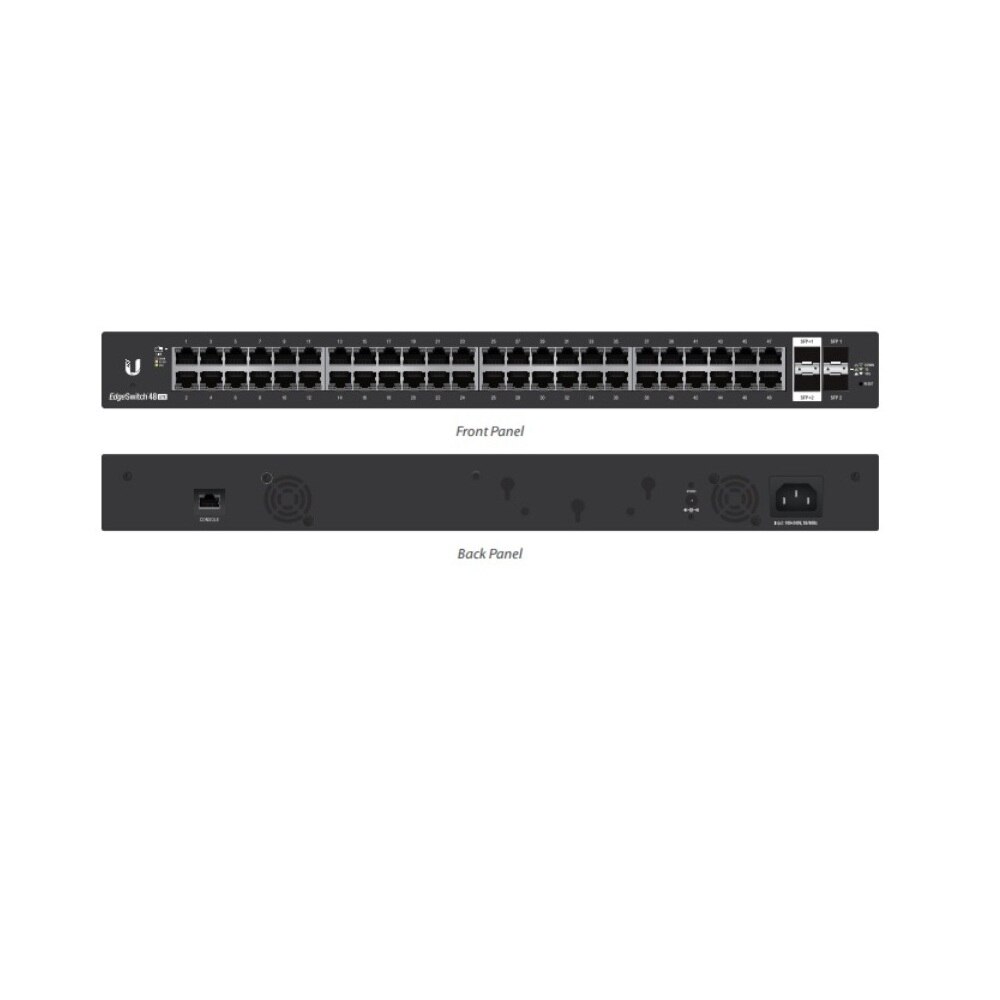

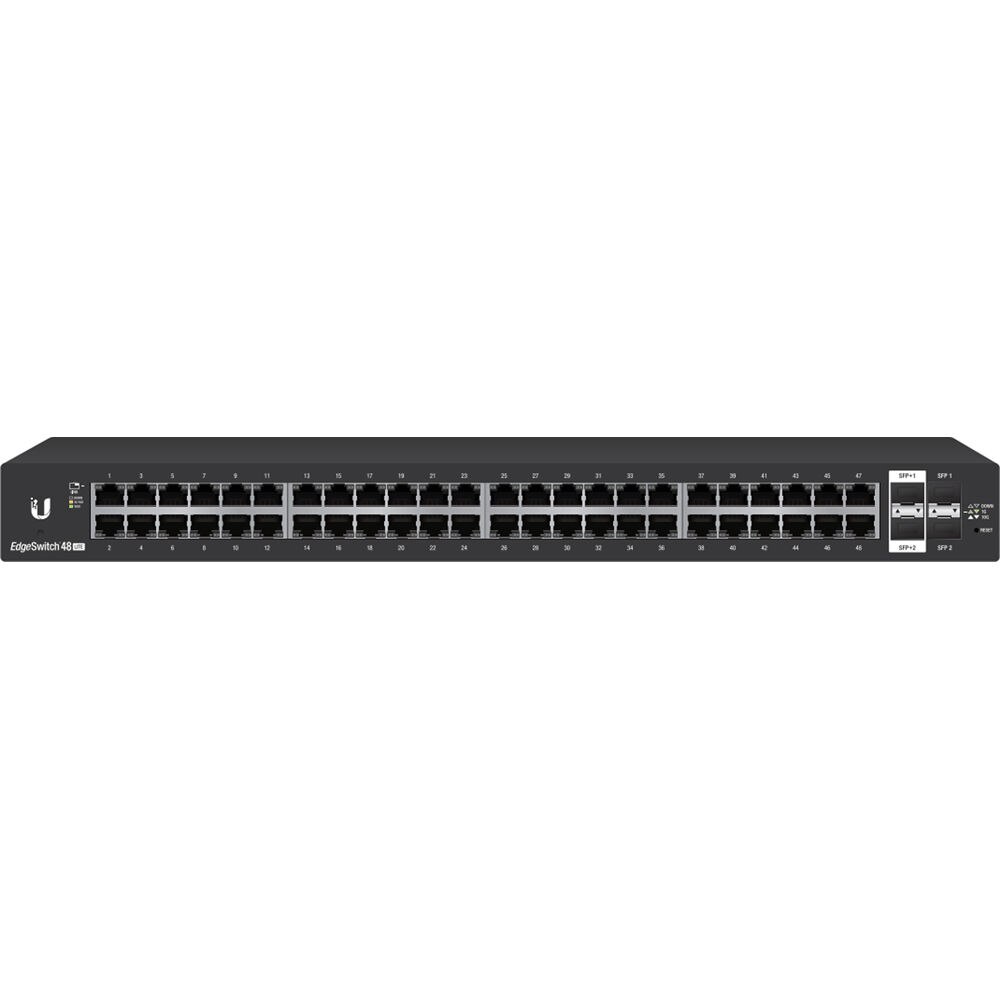

Ubiquiti ES-48-Lite
EdgeSwitch 48 Lite 48-Port Managed Gigabit Switch with SFP
Layer 2/3 switch with (48) Gigabit RJ45 ports, (2) SFP+ ports, (2) SFP ports, and a 56W power supply.
- (48) GbE RJ45 ports
- (2) SFP and (2) SFP+ ports
- Wall or rack-mountable
Powerful Enterprise Switch Models
The EdgeSwitch™ Lite simultaneously processes traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for the fanless, 24-port models and up to 70 Gbps for the 48-port models.
Enterprise-Class Features
The EdgeSwitch™ Lite supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Specifications
Specifications ES-48-LITE
| Dimensions | 443 x 43 x 286 mm (17.44 x 1.69 x 11.26") |
| Weight Rack-Mount Brackets Included Rack-Mount Brackets Excluded | 3.65 kg (8.05 lb) 3.56 kg (7.85 lb) |
| Total Non-Blocking Throughput | 70 Gbps |
| Switching Capacity 140 Gbps | 140 Gbps |
| Forwarding Rate | 104.16 Mpps |
| Max. AC Power Consumption | 56W |
| Power Method AC DC | 100-240VAC/50-60 Hz, Universal Input DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector |
| Power Supply | AC/DC, Internal, 56W DC |
| LEDs Per Port Serial Console Port RJ45 Data Ports SFP+/SFP Data Ports | N/A Speed/Link/Activity Speed/Link/Activity |
| Networking Interfaces | (48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Certifications | CE, FCC, IC |
| Rackmount | Yes, 1U High |
| ESD/EMP Protection | Air: ±24 kV, Contact: ±24 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
