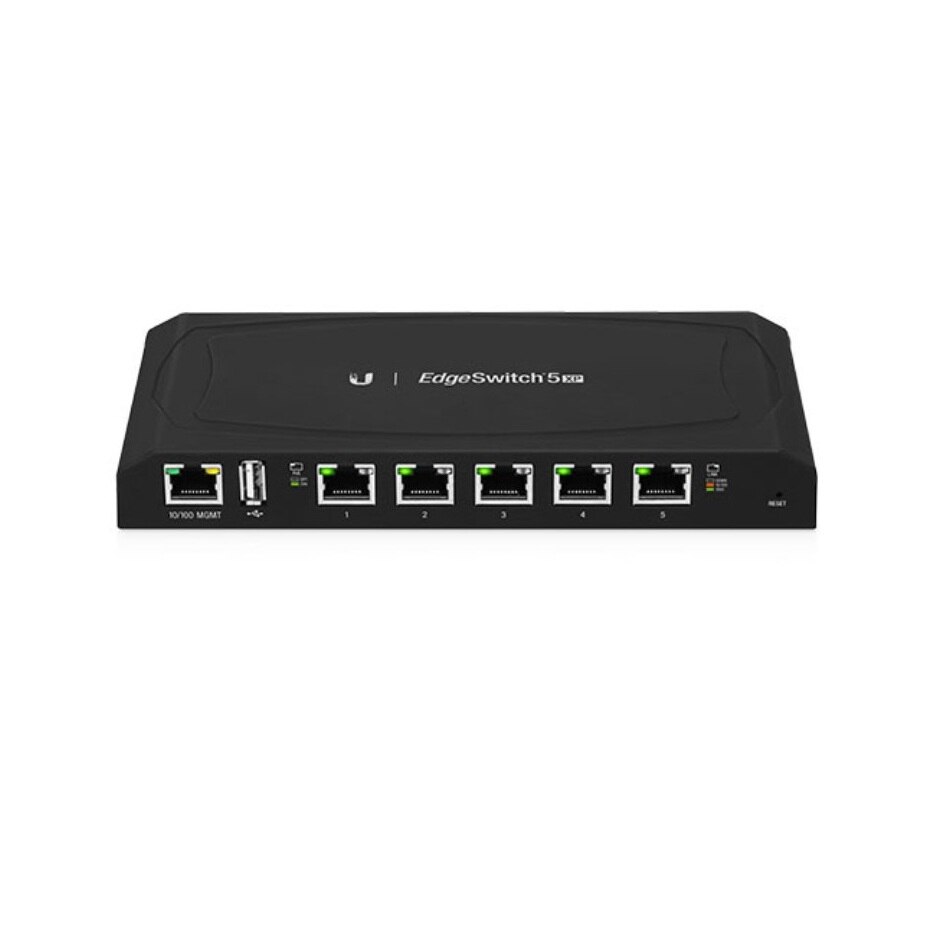

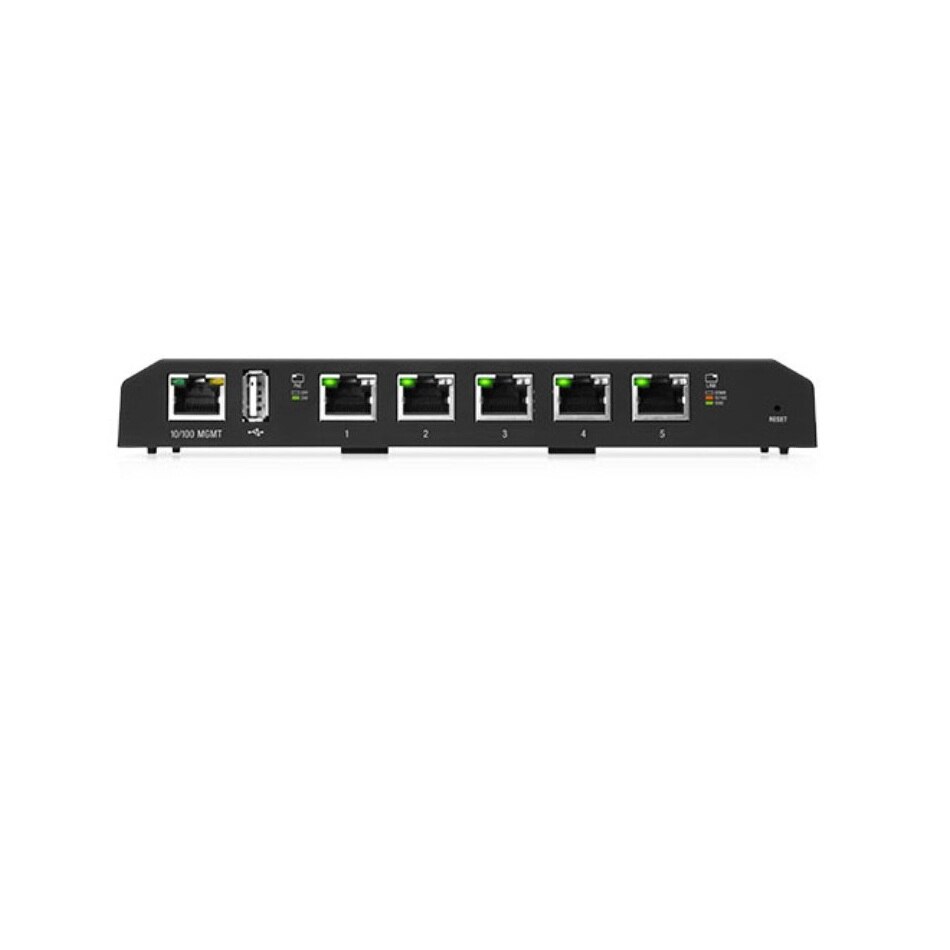

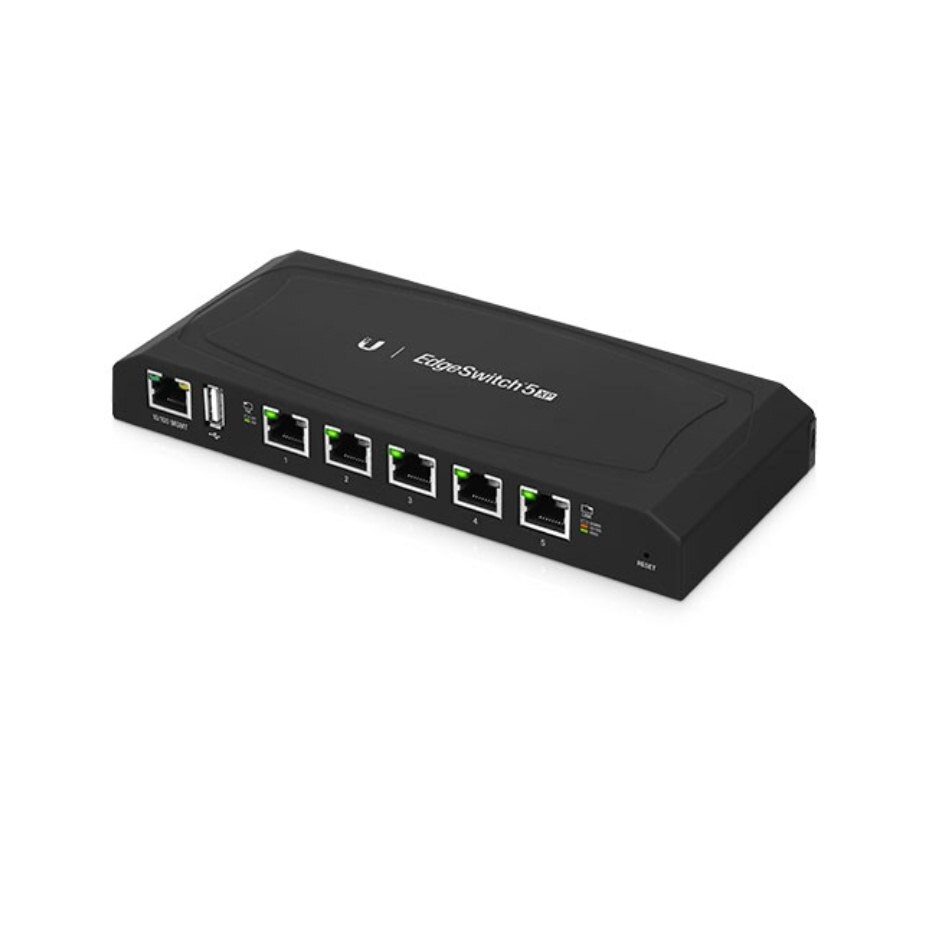

Ubiquiti UISP EdgeSwitch 5XP Switch
- SKU: ES-5XP
$144.57
Product Information
Compact but powerful switch with (5) Gigabit PoE ports and an intuitive EdgeSwitch XP interface.
Specifications
Specifications ES-5XP
| Dimensions | 197 x 87.5 x 27.3 mm |
| Weight | 250 g |
| Power Input | 24VDC, 2.5A Power Adapter (Included) |
| Max. Power Consumption | 60 W |
| PoE Out Voltage Range | 22-24VDC |
| Max. PoE Wattage Per Data Port | 11.5 W |
| ESD Rating | 24 kV Air / 24 kV Contact |
| PoE Method | Passive |
| Button | Reset |
| USB Port | 2.0 Type A (Reserved for Future Use) |
| Processor | MIPS 24K, 400 MHz |
| System Memory | 64 MB |
| Code Storage | 8 MB |
| Certifications | CE, FCC, IC |
| Wall-Mount | Yes |
| Operating Temperature | -25 to 55°C (-13 to 131° F) |
| Operating Humidity | 90% Non-Condensing |
| PoE Configurable Per Port | |
| Management Port | N/A |
| Data Ports | Off/24V |
| LEDs Per Port | |
| Management Port | Power /Link/Activity |
| Data Ports | PoE, Speed/Link/Activity |
| Networking Interfaces | |
| Management Port | (1) 10/100 Ethernet Port |
| Data Ports | (5) 10/100/1000 Ethernet Ports |
