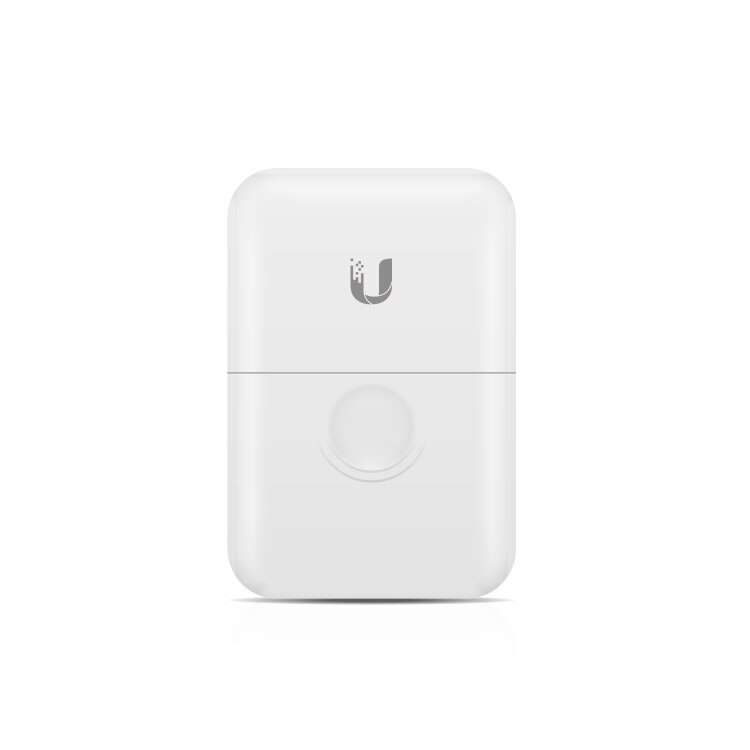

Ubiquiti UniFi Ethernet Surge Protector
- SKU: ETH-SP-G2
$17.27
Product Information
ESD protection for outdoor high-speed networks.
Specifications
Specifications ETH-SP-Gen2
| Dimensions | 91 x 61 x 32.5 mm |
| Weight | 80g |
| Interface Connections | 2x RJ45 |
| ESD/EMP Protection | Absorbing Transient Current with Responce to Surge Voltage from 100V/s to 1kV/us |
| DC Spart | Over Voltage - 90V @ 100V/s |
| Maximum Impulse Spark | over Voltage - 700V @ 1kV/us |
| Discharge Current | 5kA Maximum / 0.5kA Normal |
| Maximum Insulation Resistance | 1Gohm @50V |
| Maximum Capacitance | 1.0 pF @ 1MHz |
| Data Line Protection | RJ45 10/100/1000 Ethernet |
| IEEE 802.3af POE Support | Yes |
| Shock and Vibration Certification | ETSI300-019-1.4 Standard |
| Operating Temperature | -30 to 65 C |
| Operating Humidity | 10 to 90% Noncondensing |
