Ubiquiti Networks LTU-PRO-US
- SKU: LTU-PRO-US
$245.42
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information

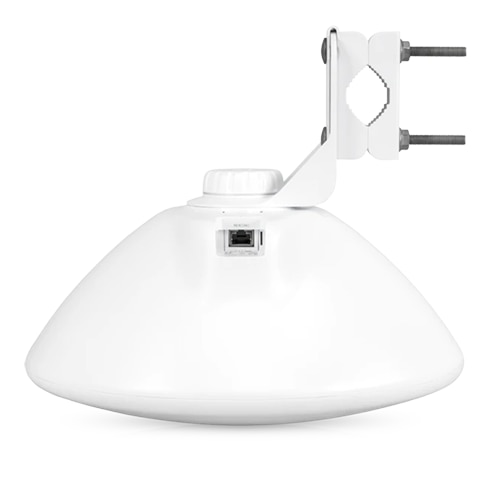

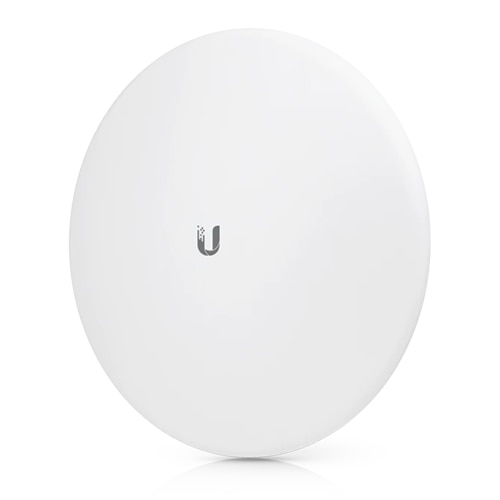

Ubiquiti 5 GHz LTU PRO (US Version)
Specifications
Specifications LTU-PRO-US
| Dimensions | 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86") |
| Weight | 1.3 kg (2.87 lb) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Enclosure | Outdoor UV Stabilized Plastic |
| Max. Power Consumption | 9W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8-) |
| Voltage Range | 22 -26V |
| Max. Conducted TX Power | 22 dBm (per Chain) |
| Gain | 24 dBi |
| Beamwidth | 14° |
| Sidelobe Level | -10 dB |
| Front-to-Back Ratio | 27 dB |

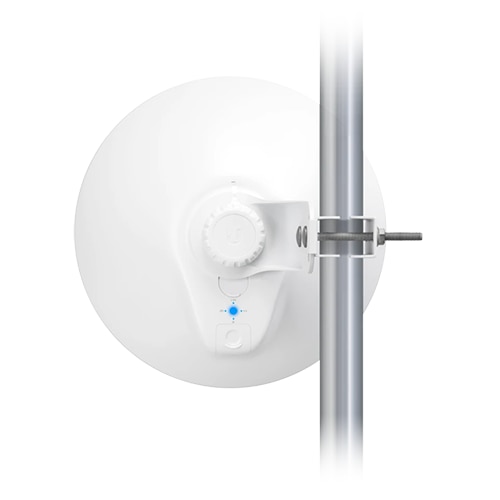

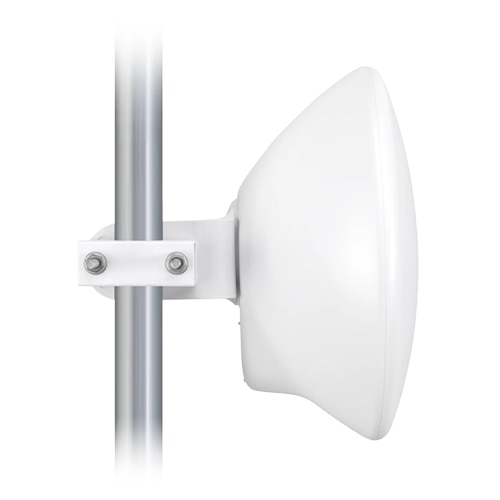

| Mounting | Pole-Mount (Kit Included) |
| Wind Loading | 150 N @ 200 km/h (33.72 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 -90% Noncondensing |
| Certifications | CE, FCC, IC |
| OPERATING FREQUENCY (MHZ) | |
| Worldwide | 2400 -2483.5* 4800 -6200* |
| US/CA | U-NII-1 U-NII-2A U-NII-2C U-NII-3 5150 -5250 5250 -5350 5470 -5725 5725 -5850 |
| EU | 2400 -2483.5 5150 -5875 |
