Ubiquiti Networks AF60-XR-US
- SKU: AF60-XR-US
Product Information

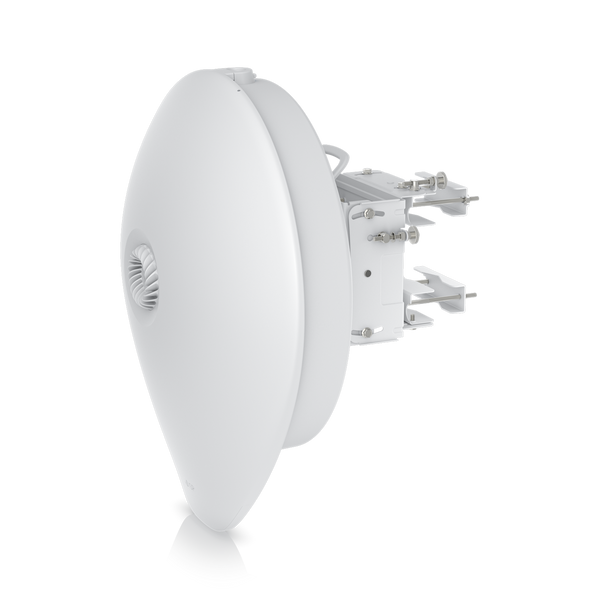

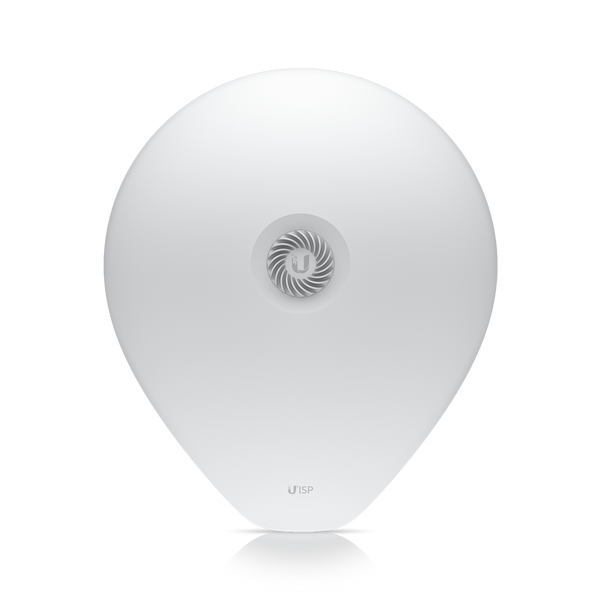

Ubiquiti Networks AF60-XR-US
UISP airFiber 60 XR
Multi-gigabit, 60 GHz bridge designed to create long-distance links and deliver 5.4 Gbps total throughput (2.7 Gbps duplex) over them.
It's also equipped with a 5 GHz backup radio for operational redundancy, as well as a Bluetooth radio to simplify setup via the UISP® Mobile app.
Managed with the UISP application: Version 1.4.3 and later Managed with the UISP Mobile app: Version 2.20 and later (iOS) / Version 2.21.5 and later (Android)
- 5 GHz backup radio
- Link range: 15+ km
- (1) 10G SFP+ port
- Integrated GPS
- Link planning support via the ISP Design Center
Works with Ubiquiti Internet Service Provider (UISP®) application:
- Centrally manage your networks and clients with ease.
- Organize your clients' plans, setup billing and invoicing, and grow your customer base.
- View network topology, advanced data analytics, and more.
- Set up devices quickly and manage them on the go with a powerful mobile app.
Specifications
Specifications AF60-XR-US
| Mechanical | ||

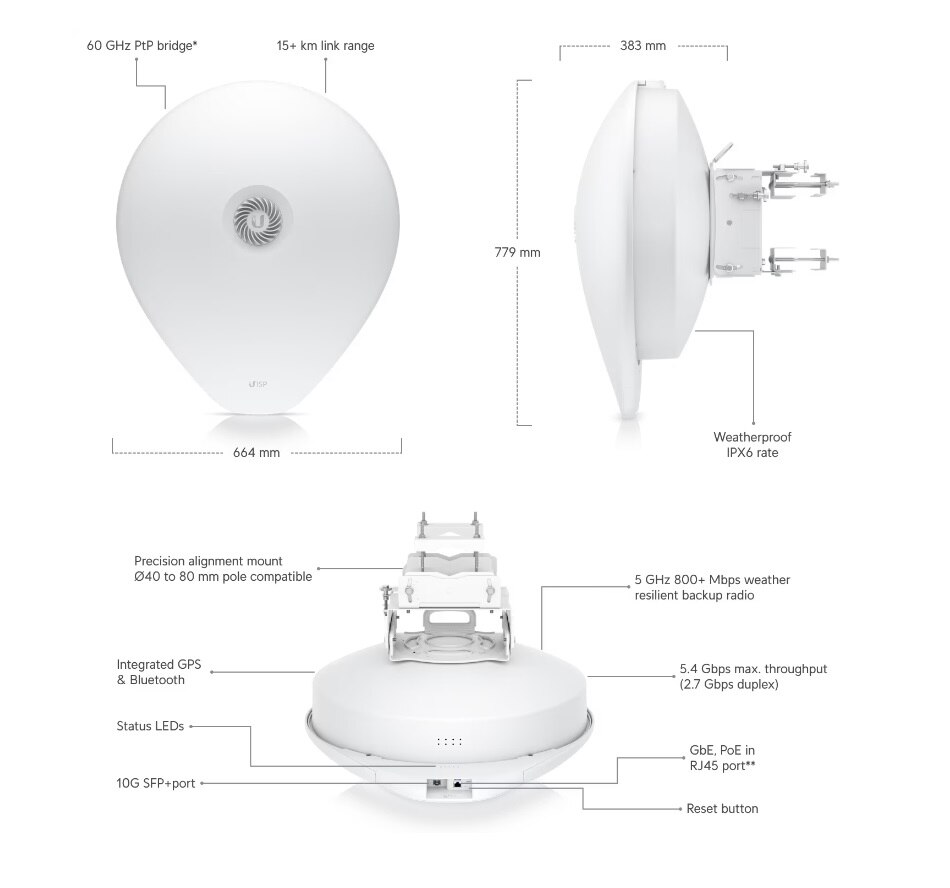

| Dimensions | 779 x 664 x 383 mm (30.7 x 26.1 x 15.1") | |
| Weight | Without mount: 8.6 kg (19 lb) With mount: 13 kg (28.7 lb) | |
| Enclosure materials | UV stabilized polycarbonate, steel | |
| Mount material | Galvanized steel | |
| Mounting | Precision alignment kit (included) | |
| Pole compatibility | Ø40 to 80 mm (Ø1.5 to 3.15") on pipe outer diameter | |
| Wind loading | 422 N at 200 km/h (94.86 lbf at 125 mph) | |
| Weatherproofing | IPX6 | |
| Hardware | ||
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz | |
| Memory | DDR3L1 GB | |
| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+port | |
| Max. power consumption | 24W | |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) | |
| Power supply | 48VDC, 0.65A gigabit PoE adapter (included) | |
| RF connections | Internal | |
| Button | Factory reset | |
| LEDs | Power, Ethernet, GPS, link | |
| Operating temperature | -40 to 55° C (-40 to 131° F) | |
| Operating humidity | 5 to 95% noncondensing | |
| Certifications | FCC, IC, CE | |
| Software | ||
| OS | airOS® | |
| Operating mode | PtP only | |
| Ubiquiti specific features | Integrated 60 GHz radio, discovery protocol, Wave technology | |
| Services | UISP, ping watchdog, NTP client, device discovery | |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test | |
| Network | Bridge mode | |
| Software management | Bluetooth management for easy setup over UISP app WEB UI | |
| Minimum software requirements | Any modern web browser/iOS™ or Android™ based smartphone | |
| System | ||
| Maximum throughput | 2.5+ Gbps | |
| Maximum range | 15+ km | |
| Encryption | WPA2-PSK (AES) | |
| RF | ||
| Operating frequency* | 57 to 71 GHz * Depends on regulatory region. | |
| Channel bandwidth | 2160, 1080 MHz | |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz * Depends on regulatory region. | |
| Modulation | 16QAM, BPSK, QPSK | |
| Beamwidth | Azimuth: ± 1° Elevation: ± 1° | |
| Management radio | 2400 - 2483.5 MHz | |
| Electrical downtilt | 0° | |
| Back-Up RF | ||
| Operating frequency* US/CA Worldwide | U-NII-1 5150 - 5250 Mhz U-NII-3 5725 - 5850 Mhz 5150 - 5875 MHz * Depends on regulatory region. | |
| Channel bandwidth | 20, 40, 80 MHz | |
| Modulation | BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6) | |
| Antenna gain | 26 dBi | |
| Beamwidth | Azimuth: ± 7° Elevation: ± 7° | |
| Cross-pol isolation | 14 dB | |
| Electrical downtilt | 0° | |
| LEDs | ||
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application | |
| Ethernet | Flashing blue: Ethernet activity | |
| GPS | Blue: receiving at least (4) GPS satellite signals | |
| Link | Blue: 5GHz link Blue: 60GHz link |
