Ubiquiti Networks AI Theta Lens
- SKU: AI Theta Lens
- Manufacturer: Ubiquiti Networks
Product Information
Ubiquiti Networks UVC-AI-Theta-ProLens50
AI Theta Pro Long-Distance Lens
Long-distance lens with enhanced low-light performance and dynamic range that connects to an AI Theta Hub.
Features:
- 4K (8MP) video resolution
- 53° horizontal field of view
- Exceptional image quality with superb low-light performance and enhanced dynamic range
- Ideal for capturing detail to secure business critical spaces such as retail point of sale
- Includes Standard Flush Mount for flat ceiling or wall mounting
- Compatible with AI Theta Pro Mounts

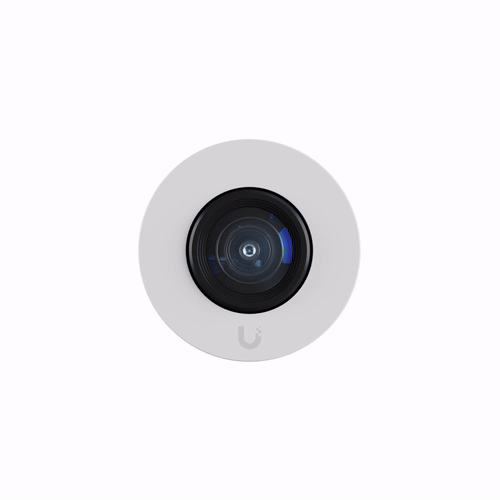

Ubiquiti Networks UVC-AI-Theta-ProLens110
AI Theta Pro Wide-Angle Lens
Wide-angle lens with enhanced low-light performance and dynamic range that connects to an AI Theta Hub.
Features:
- 4K (8MP) video resolution
- 110.4° horizontal field of view
- Exceptional image quality with superb low-light performance and enhanced dynamic range
- Ideal for securing large, busy spaces such as entrances and lobbies
- Includes Standard Flush Mount for flat ceiling or wall mounting
- Compatible with AI Theta Pro Mounts

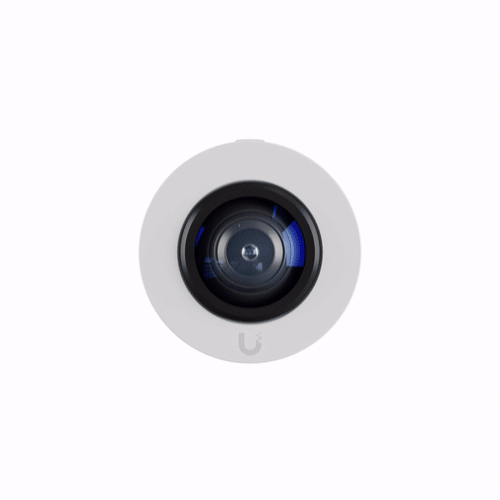

Ubiquiti Networks UVC-AI-Theta-ProLens360
AI Theta Pro 360 Lens
Ultra-wide 360° view lens with enhanced low-light performance and dynamic range that connects to an AI Theta Hub.
Features:
- 4K (8MP) resolution with ultra-wide 360° view
- Exceptional image quality with superb low-light performance and enhanced dynamic range
- Ideal for panoramic coverage of large, busy spaces such as entrances, lobbies, and retail floors
- Includes Standard Flush Mount for flat ceiling or wall mounting
- Compatible with AI Theta Pro Mounts

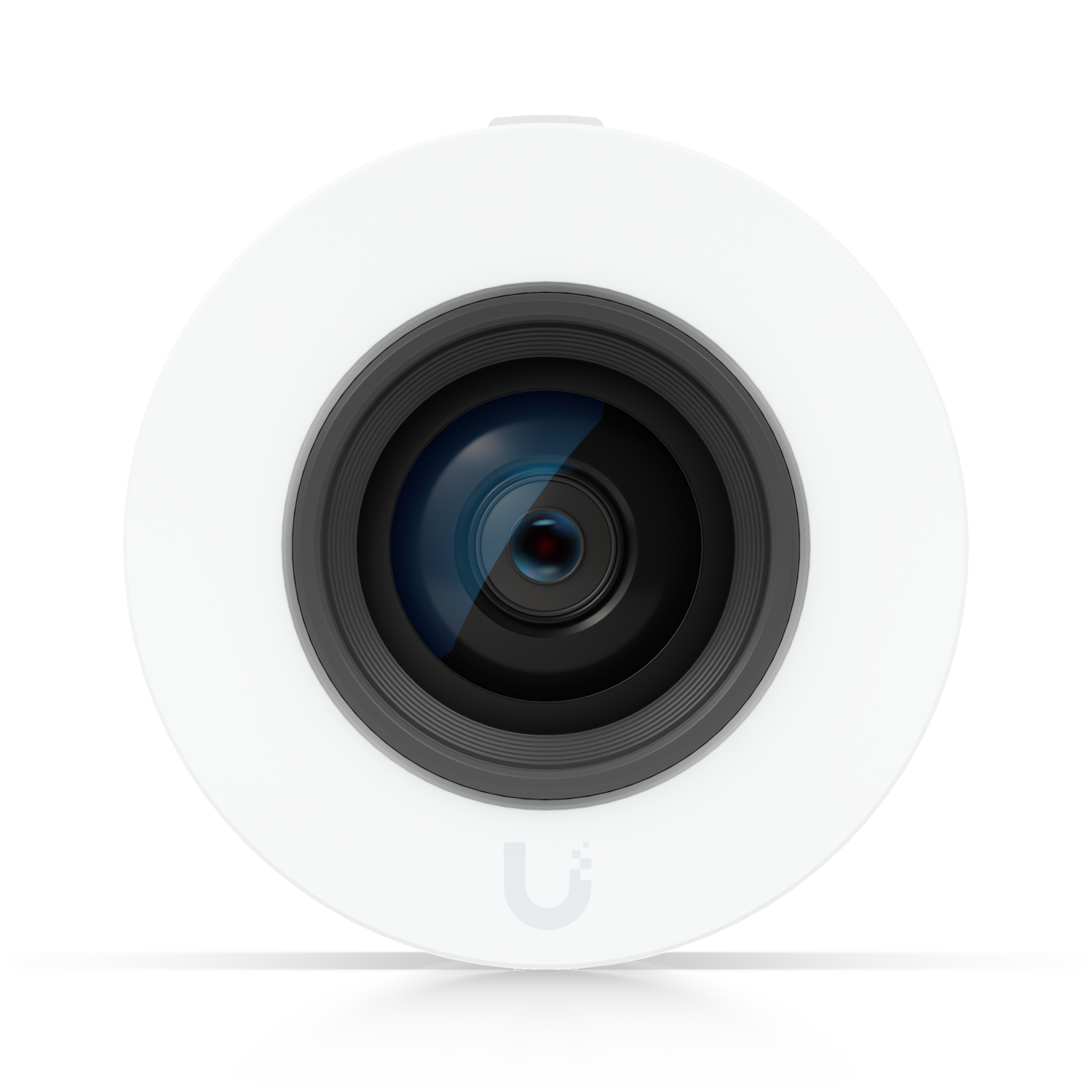

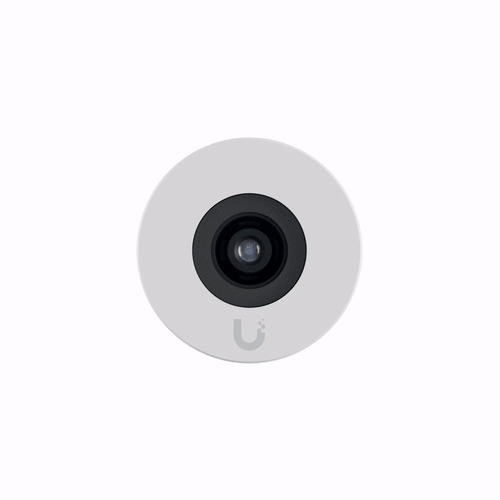

Ubiquiti Networks UVC-AI-Theta-Lens-LD
AI Theta Long-Distance Lens
Long-distance lens that connects to an AI Theta Hub.
Features:
- 4K (8MP) video resolution
- 36.2° horizontal field of view
- Ideal for capturing detail to secure business critical spaces such as retail point of sale
- Includes Standard Flush Mount for flat ceiling or wall mounting
- Compatible with AI Theta Angle Mount for flexible ceiling or wall mounting

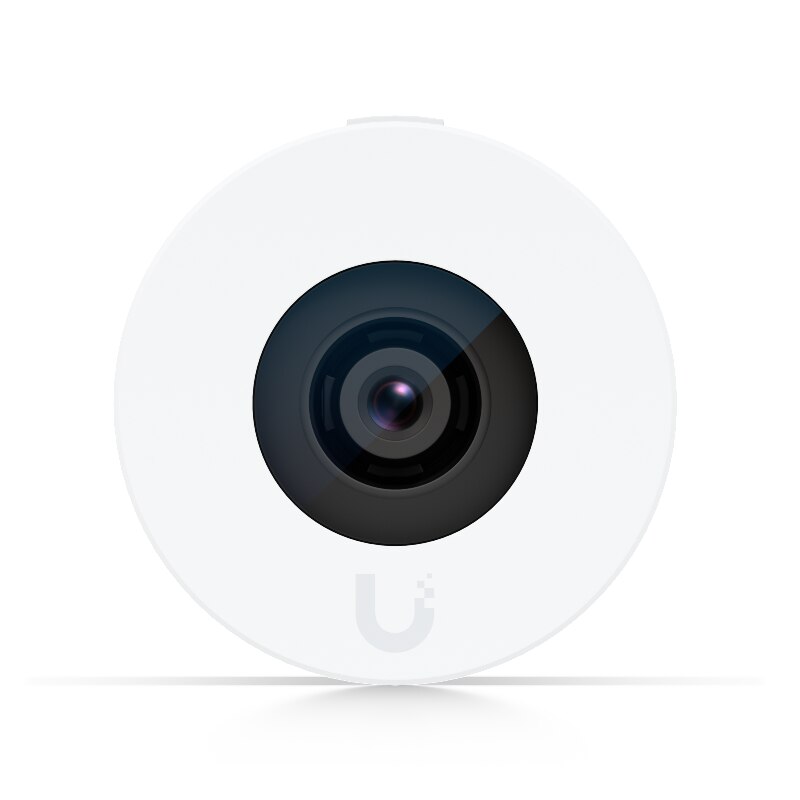

Ubiquiti Networks UVC-AI-Theta-Lens
AI Theta Lens
Wide-angle lens that connects to an AI Theta Hub.
Features:
- 4K (8MP) video resolution
- 97.5° horizontal field of view
- Ideal for securing large, busy spaces such as entrances and lobbies
- Includes Standard Flush Mount for flat ceiling or wall mounting
- Compatible with AI Theta Angle Mount for flexible ceiling or wall mounting
Ubiquiti Networks UVC-AI-Theta-Lens-360
AI Theta 360 Lens
Ultra-wide 360° view lens that connects to an AI Theta Hub.
Features:
- 4K (9MP) resolution with ultra-wide 360° view
- Ideal for panoramic coverage of large, busy spaces such as entrances, lobbies, and retail floors
- Includes Standard Flush Mount for flat ceiling or wall mounting
UVC-AI-Theta-ProLens50
UVC-AI-Theta-ProLens110
UVC-AI-Theta-ProLens360
UVC-AI-Theta-Lens-LD
UVC-AI-Theta-Lens
UVC-AI-Theta-Lens-360
Specifications

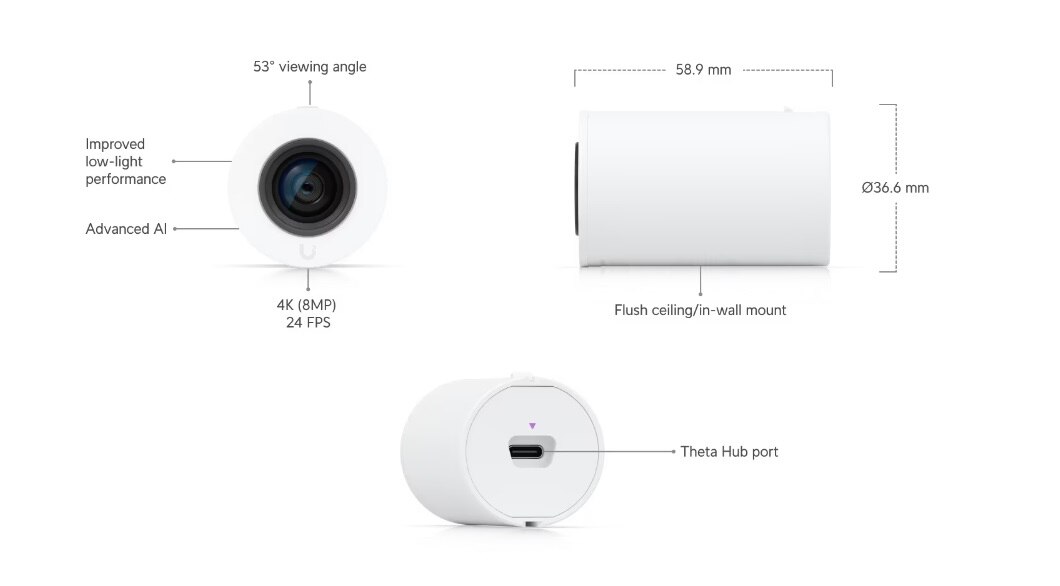

Specifications UVC-AI-Theta-ProLens50
| Mechanical | |
| Dimensions | Ø36.6 x 58.9 mm (Ø1.4 x 2.3”) |
| Weight | 60 g (0.13 lb) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Mounting material | Polycarbonate |
| Weatherproofing | Indoor only |
| Optics | |
| Sensor | 8MP 1/1.8" |
| Lens | Fixed focal length |
| View angle | H: 53°, V: 31°, D: 60° |
| Video | |
| Video compression | H.264 |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Max. frame rate | 24 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Power method | Theta proprietary |
| Power supply | 5V DC, 0.5A |
| Max. power consumption | 2.5W |
| Mounting | Wall, ceiling mount (Included) Angle mount (Sold separately) |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |

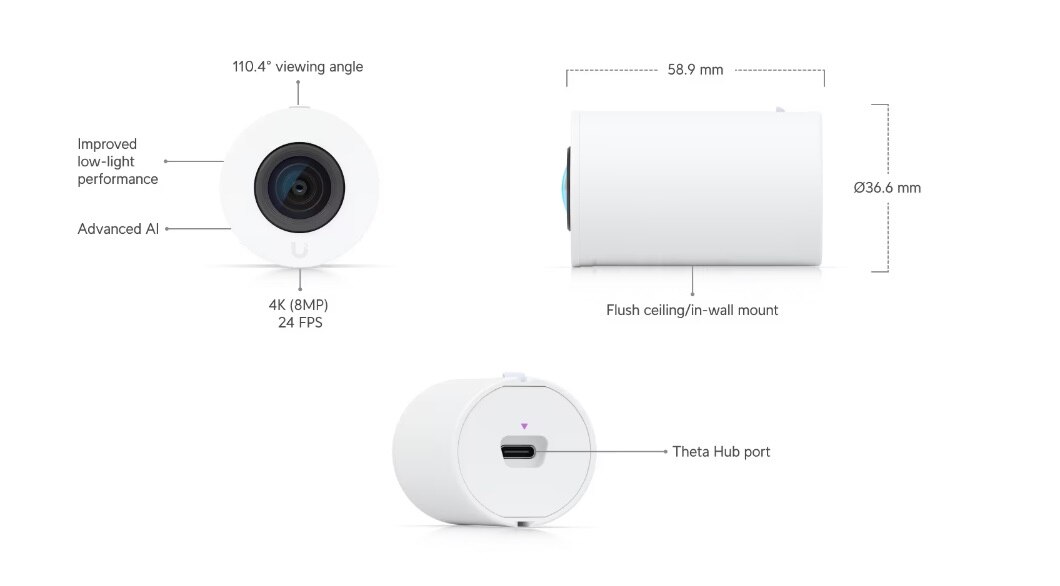

Specifications UVC-AI-Theta-ProLens110
| Mechanical | |
| Dimensions | Ø36.6 x 58.9 mm (Ø1.4 x 2.3”) |
| Weight | 50 g (0.11 lb) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Mounting material | Polycarbonate |
| Weatherproofing | Indoor only |
| Optics | |
| Sensor | 8MP 1/1.8" |
| Lens | Fixed focal length |
| View angle | H: 110.4°, V: 62.1°, D: 126.6° |
| Video | |
| Video compression | H.264 |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Max. frame rate | 24 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Power method | Theta proprietary |
| Power supply | 5V DC, 0.5A |
| Max. power consumption | 2.5W |
| Mounting | Wall, ceiling mount (Included) Angle mount (Sold separately) |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |

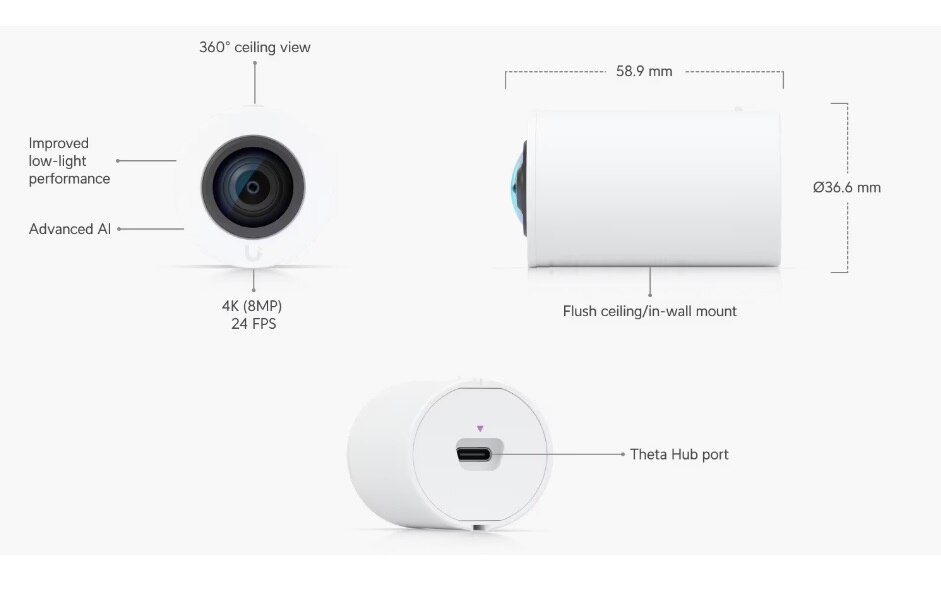

Specifications UVC-AI-Theta-ProLens360
| Mechanical | |
| Dimensions | Ø36.6 x 58.9 mm (Ø1.4 x 2.3”) |
| Weight | 58 g (0.12 lb) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Mounting material | Polycarbonate |
| Weatherproofing | Indoor only |
| Optics | |
| Sensor | 8MP 1/1.8" |
| Lens | Fixed focal length |
| View angle | H: 180°, V: 180°, D: 180° |
| Video | |
| Video compression | H.264 |
| Resolution | 4MP 2160 x 2160 (1:1) |
| Max. frame rate | 24 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Power method | Theta proprietary |
| Power supply | 5V DC, 0.5A |
| Max. power consumption | 2.5W |
| Mounting | Wall, ceiling mount (Included) Flush mount (Sold separately) |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
Specifications UVC-AI-Theta-Lens-LD
| Mechanical | |
| Dimensions | Ø22.8. x 43.5 mm (Ø0.9 x 1.7”) |
| Weight | 15 g (0.03 lb) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Mount material | Polycarbonate |
| Weatherproofing | Indoor only |
| Optics | |
| Sensor | 8MP CMOS |
| Lens | Fixed focal length |
| View angle | H: 36.2°, V: 27.7°, D: 44.4° |
| Video | |
| Video compression | H.264 |
| Resolution | 8MP 3264 x 2448 (4:3) |
| Max. frame rate | 24 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Power method | Theta proprietary |
| Power supply | 5V DC, 0.5A |
| Max. power consumption | 2.5W |
| Mounting | Wall, ceiling mount (Included) Angle mount (Sold separately) |
| Ambient operating temperature | -20 to 40° C (-4 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |

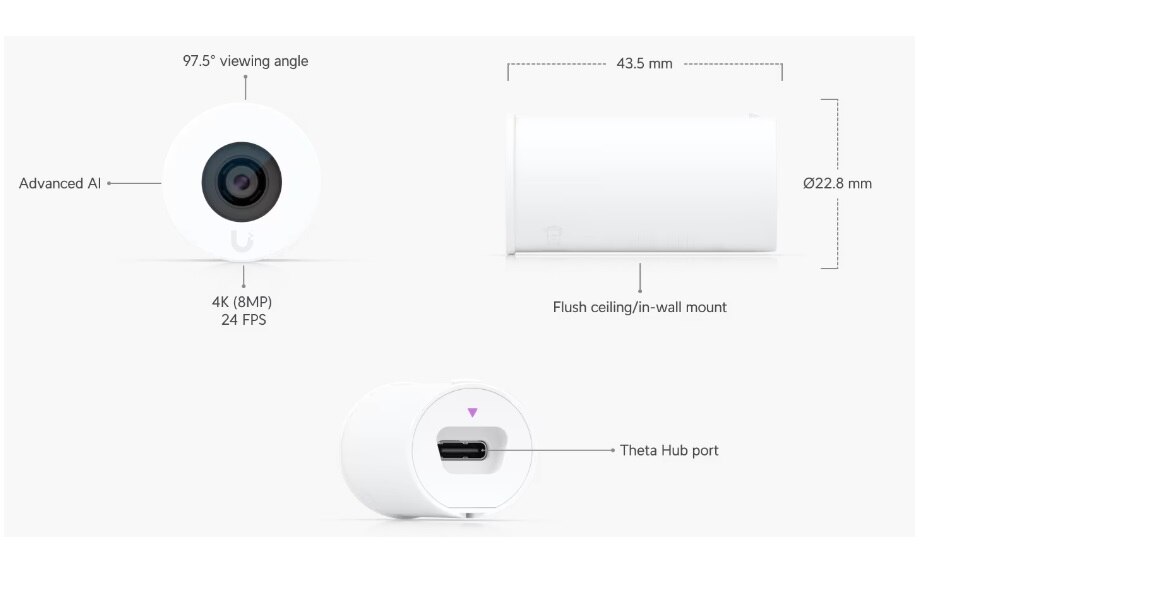

Specifications UVC-AI-Theta-Lens
| Mechanical | |
| Dimensions | Ø22.8. x 43.5 mm (Ø0.9 x 1.7”) |
| Weight | 15 g (0.03 lb) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Mount material | Polycarbonate |
| Weatherproofing | Indoor only |
| Optics | |
| Sensor | 8MP CMOS |
| Lens | Fixed focal length |
| View angle | H: 97.5°, V: 79.4°, D: 118.2° |
| Video | |
| Video compression | H.264 |
| Resolution | 8MP 3264 x 2448 (4:3) |
| Max. frame rate | 24 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Power method | Theta proprietary |
| Power supply | 5V DC, 0.5A |
| Max. power consumption | 2.5W |
| Mounting | Wall, ceiling mount (Included) Angle mount (Sold separately) |
| Ambient operating temperature | -20 to 40° C (-4 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |

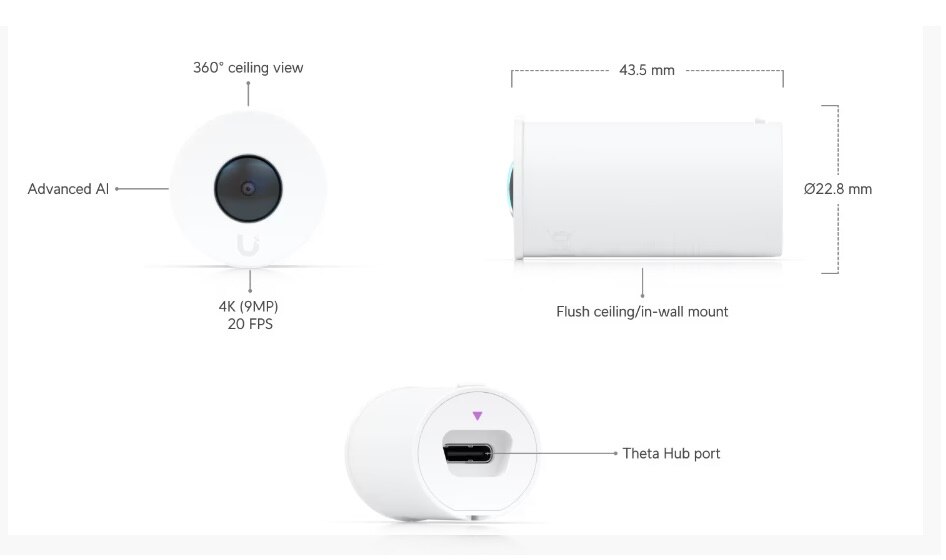

Specifications UVC-AI-Theta-Lens-360
| Mechanical | |
| Dimensions | Ø22.8. x 43.5 mm (Ø0.9 x 1.7”) |
| Weight | 15 g (0.03 lb) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Mount material | Polycarbonate |
| Weatherproofing | Indoor only |
| Optics | |
| Sensor | 12MP CMOS |
| Lens | Fixed focal length |
| View angle | H: 180°, V: 180°, D: 180° |
| Video | |
| Video compression | H.264 |
| Resolution | 4MP 2560 x 2560 (1:1) |
| Max. frame rate | 20 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Power method | Theta proprietary |
| Power supply | 5V DC, 0.5A |
| Max. power consumption | 2.5W |
| Mounting | Wall, ceiling mount (Included) Angle mount (Sold separately) |
| Ambient operating temperature | -20 to 40° C (-4 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
