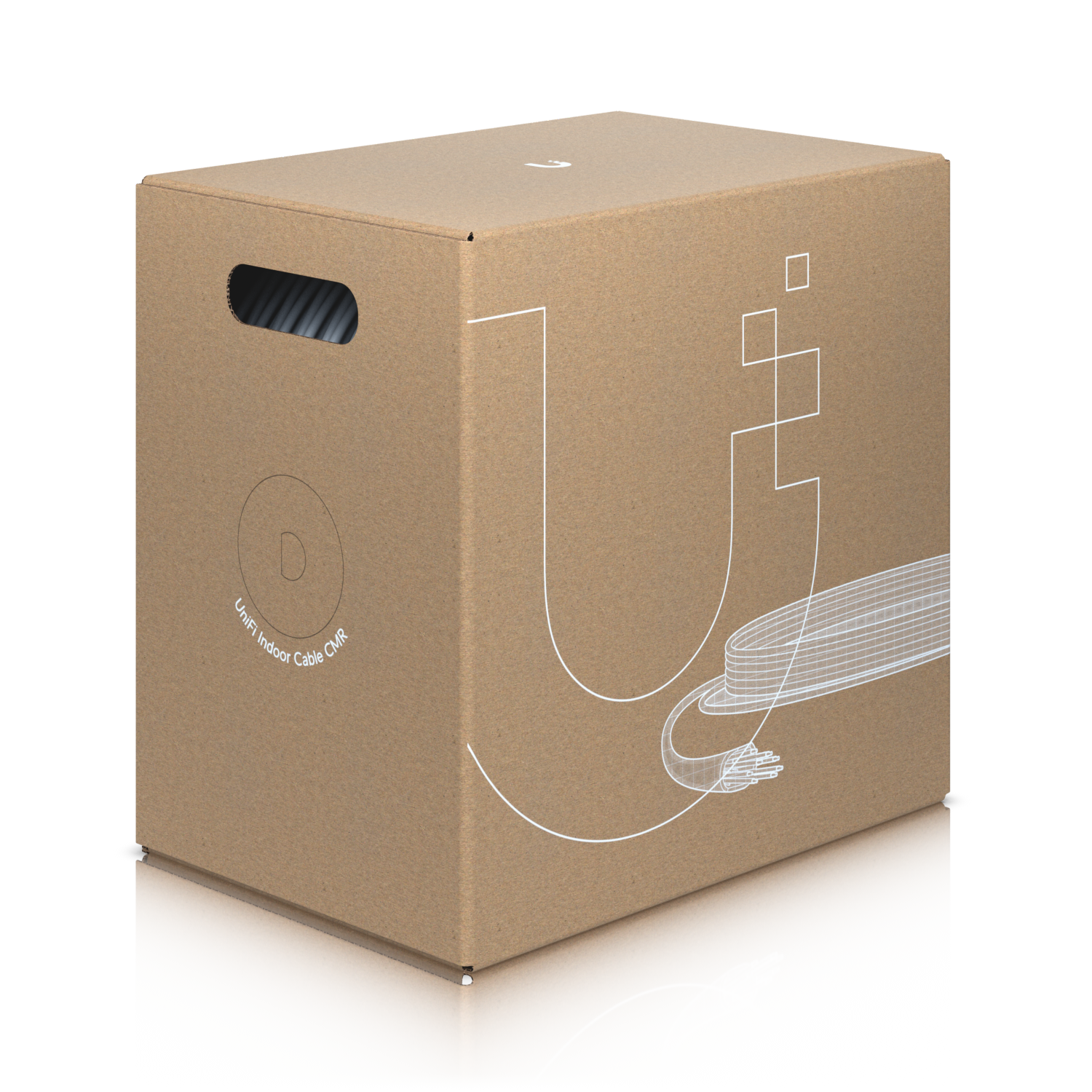

Ubiquiti Networks UniFi Box Cable
- SKU: Box Cable
- Manufacturer: Ubiquiti Networks
Product Information
Ubiquiti Networks U-Cable-C6-CMR
UniFi Indoor Cable Cat6 CMR
Category 6 Ethernet cable for high-speed, indoor deployments
Features:
- Category 6 UTP communications multipurpose cable
- Riser (CMR)-rated, fire-resistant jacket
- Anti-crosstalk divider
- Cable length 305 m
Ubiquiti Networks U-Cable-C6-CMP
UniFi Indoor Cable Cat6 CMP
Category 6 Ethernet cable for high-speed deployments located in environments that require plenum-rated cabling.
Features:
- Category 6 UTP communications multipurpose cable
- Riser (CMP)-rated, fire-resistant jacket
- Anti-crosstalk divider
- Cable length 305 m
Ubiquiti Networks UACC-Cable-C6A-CMR
UniFi Indoor Cable Cat6A CMR
Category 6A Ethernet cable for high-speed, indoor deployments.
Features:
- Category 6 UTP communications multipurpose cable
- Riser (CMR)-rated, fire-resistant jacket
- Anti-crosstalk divider
- Cable length 305 m
Ubiquiti Networks UACC-Cable-C6A-CMP
UniFi Indoor Cable Cat6A CMP
Category 6A Ethernet cable for high-speed deployments in environments that require plenum-rated cabling.
Features:
- Category 6 UTP communications multipurpose cable
- Riser (CMP)-rated, fire-resistant jacket
- Anti-crosstalk divider
- Cable length 305 m
Ubiquiti Networks UACC-Cable-C5e-Outdoor-Pro-305M-W
UniFi Outdoor Cable
Outdoor Category 5e cable designed to resist harsh weather damage and electromagnetic interference.
Features:
- Category 5e cable
- Insulated, weatherproof jacket
- Internal foil shielding and drain wire for increased ESD damage protection
- Cable length 305 m
Specifications
Specifications U-Cable-C6-CMR
| Length | 305 m (1,000 ft) |
| Type | Category 6 |
| Color | White |
| Box Dimensions | 474 x 346 x 458 mm (18.7 x 13.6 x 18") |
| Box Weight | 14.8 kg (32.7 lb) |
| Supported Data Rate | Up to 10 Gbps (10GBase-T) Max. 55 meters |
| Flame Rating | CMR |
| Shielding Type | UTP |
| Conductor Type | Solid bare copper |
| Conductor Wire Gauge | 23 AWG |
| Cable | |
| Jacket Diameter | 6.0 ± 0.2 mm |
| Jacket Material | PVC |
| Bend Radius | Min. 24 mm |
| Pulling Tension | Max. 110 N |
| Reference Bandwith | Up to 600 MHz |
| Anti-Crosstalk Divider | Yes |
| Ripcord | Yes |
| Standards | Electrical transmission: Flame test: Material and construction: |
| Installation Temperature | 0 to 60°C (32 to 140°F) |
| Ambient Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Ambient Operating Temperature | -20 to 60°C (-4 to 140°F) |
Specifications U-Cable-C6-CMP
| Length | 305 m (1,000 ft) |
| Type | Category 6 |
| Color | White |
| Box Dimensions | 474 x 346 x 458 mm (18.7 x 13.6 x 18") |
| Box Weight | 14.8 kg (32.5 lb) |
| Supported Data Rate | Up to 10 Gbps (10GBase-T) Max. 55 meters |
| Flame Rating | CMP |
| Shielding Type | UTP |
| Conductor Type | Solid bare copper |
| Conductor Wire Gauge | 23 AWG |
| Cable | |
| Jacket Diameter | 5.6 ± 0.2 mm |
| Jacket Material | Low smoke flame retardant PVC |
| Bend Radius | Min. 22.4 mm |
| Pulling Tension | Max. 110 N |
| Reference Bandwith | Up to 600 MHz |
| Anti-Crosstalk Divider | Yes |
| Ripcord | Yes |
| Standards | Electrical transmission: Flame test: Material and construction: |
| Installation Temperature | 0 to 60°C (32 to 140°F) |
| Ambient Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Ambient Operating Temperature | 20 to 60°C (-4 to 140°F) |
Specifications UACC-Cable-C6A-CMR
| Length | 305 m (1,000 ft) |
| Type | Category 6A |
| Color | White |
| Box Dimensions | 494 x 302 x 481 mm (19.4 x 11.9 x 18.9") |
| Box Weight | 19.3 kg (42.5 lb) |
| Supported Data Rate | Up to 10 Gbps (10GBase-T)Max. 100 meters |
| Flame Rating | CMR |
| Shielding Type | UTP |
| Conductor Type | Solid bare copper |
| Conductor Wire Gauge | 23 AWG |
| Cable | |
| Jacket Diameter | 7.05 ±0.2 mm |
| Jacket Material | PVC |
| Anti-Crosstalk Divider | Yes |
| Ripcord | Yes |
| Standards | Electrical transmission: Flame test: Material and construction: |
| Installation Temperature | 0 to 60°C (32 to 140°F) |
| Ambient Operating Temperature | -20 to 75°C (-4 to 167°F) |
Specifications UACC-Cable-C6A-CMP
| Length | 305 m (1,000 ft) |
| Type | Category 6A |
| Color | White |
| Box Dimensions | 494 x 302 x 481 mm (19.4 x 11.9 x 18.9") |
| Box Weight | 21.3 kg (47 lb) |
| Supported Data Rate | Up to 10 Gbps (10GBase-T) Max. 100 meters |
| Flame Rating | CMP |
| Shielding Type | UTP |
| Conductor Type | Solid bare copper |
| Conductor Wire Gauge | 23 AWG |
| Cable | |
| Jacket Diameter | 6.6 ±0.5 mm |
| Jacket Material | Low smoke flame retardant polyvinyl chloride (LSFRPVC) |
| Anti-Crosstalk Divider | Yes |
| Ripcord | Yes |
| Standards | |
| Installation Temperature | 0 to 50°C (32 to 122°F) |
| Ambient Operating Temperature | -20 to 60°C (-4 to 140°F) |
Specifications UACC-Cable-C5e-Outdoor-Pro-305M-W
| Length | 305 m (1,000 ft) |
| Type | Category 5e |
| Color | White |
| Box Dimensions | 330 x 330 x 340 mm (13 x 13 x 13.4") |
| Box Weight | 12.6 kg (27.78 lb) |
| UV Resistance | ASTM G 151/154 |
| Flame Rating | VW-1 (UL1581) |
| Shielding Type | STP |
| Conductor Type | Solid bare copper |
| Conductor Wire Gauge | 24 AWG |
| Cable | |
| Jacket Diameter | 6 mm (0.24") |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Bend Radius | Min. 24 mm (0.94") |
| Anti-Crosstalk Divider | No |
| Ripcord | Yes |
| Standards | TIA/EIA-568-B.2 ISO/IEC 11801 |
| Installation Temperature | -20 to 60°C (-4 to 140°F) |
| Ambient Storage Temperature | -30 to 75°C (-22 to 167°F) |
| Ambient Operating Temperature | -40 to 80°C (-40 to 176°F) |
| NDAA Compliant | Yes |
