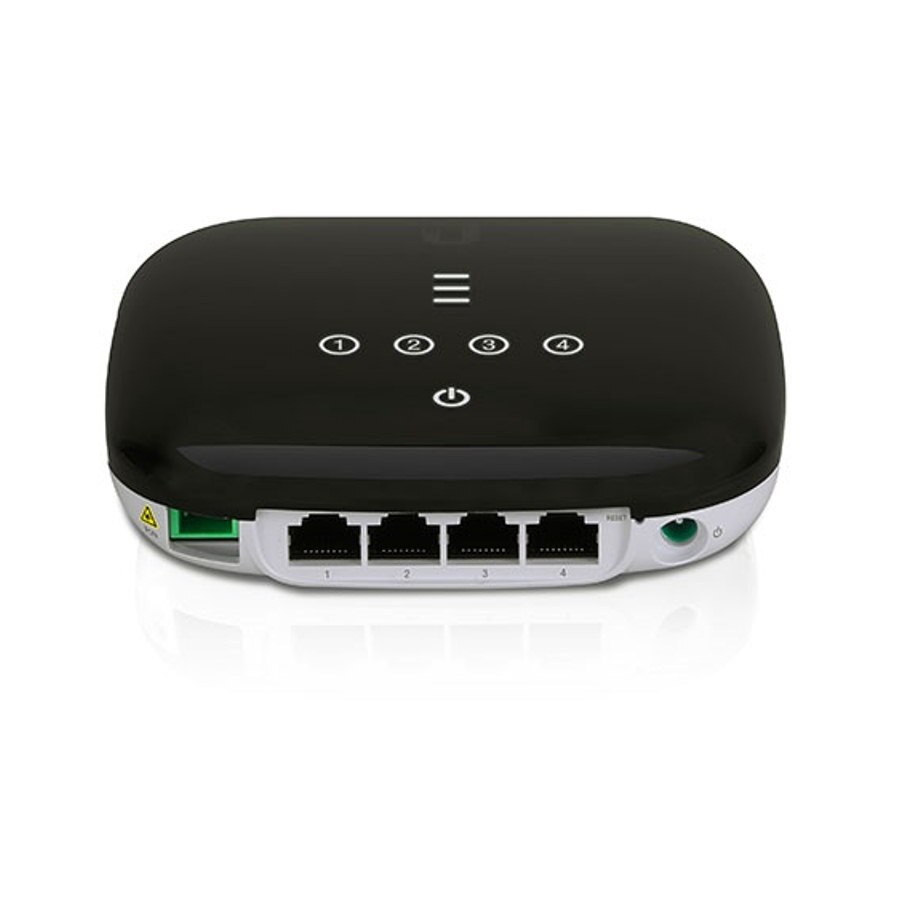

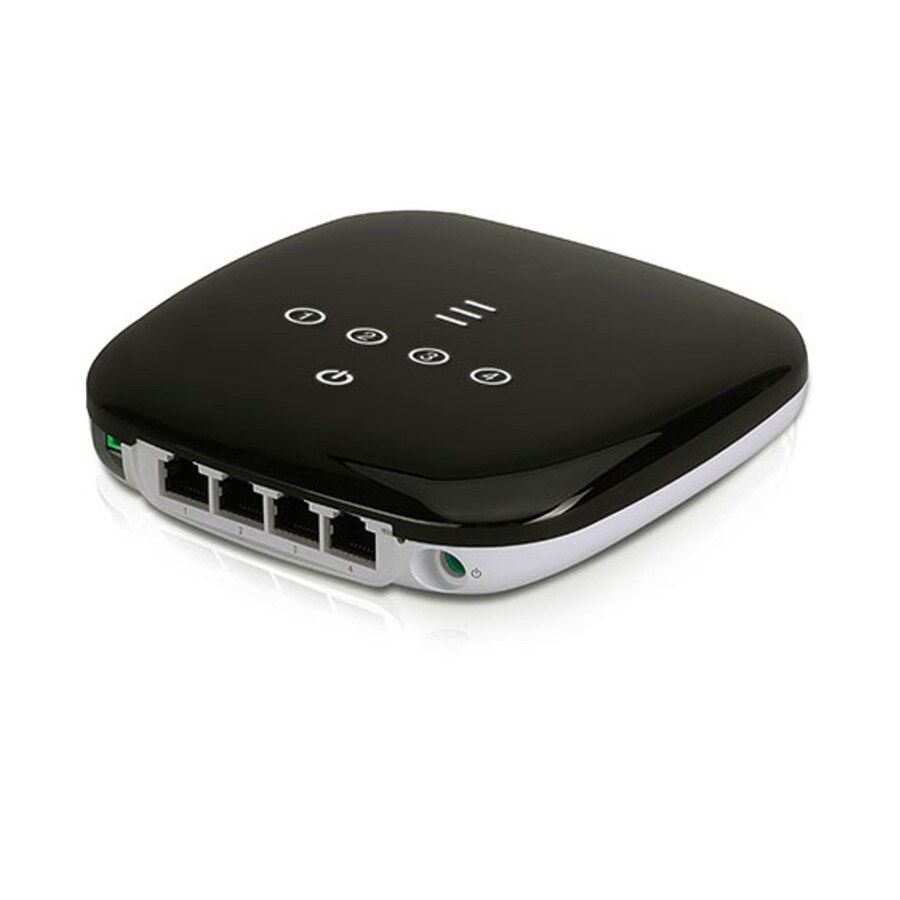

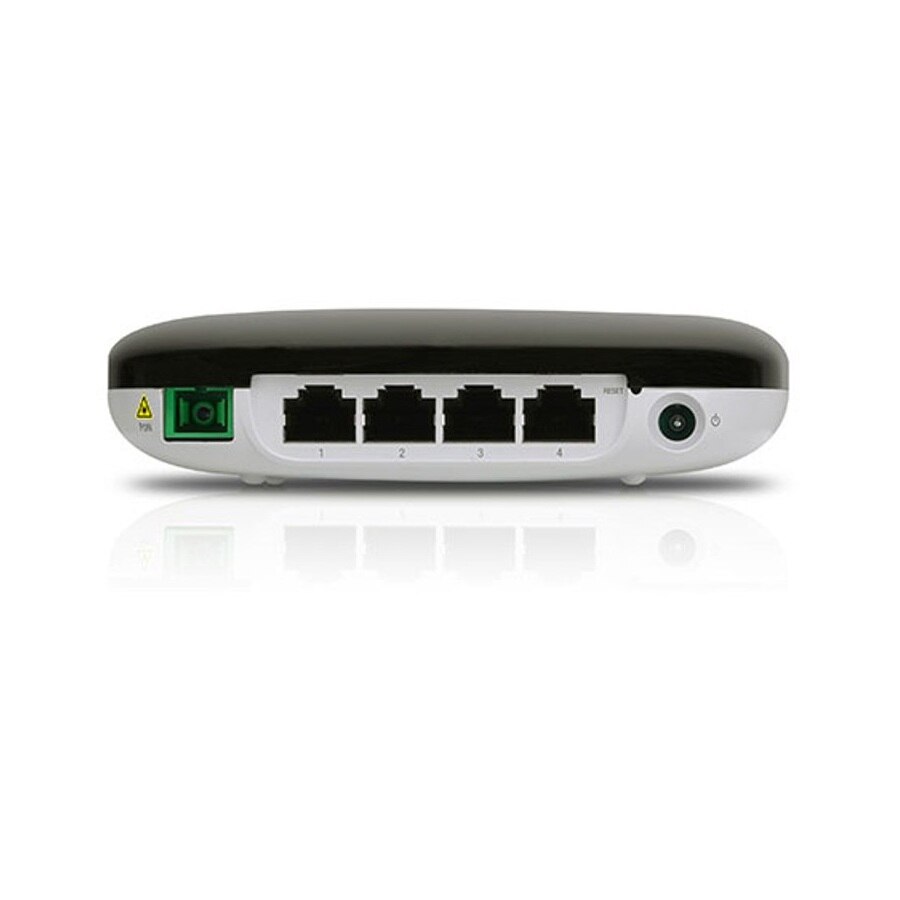

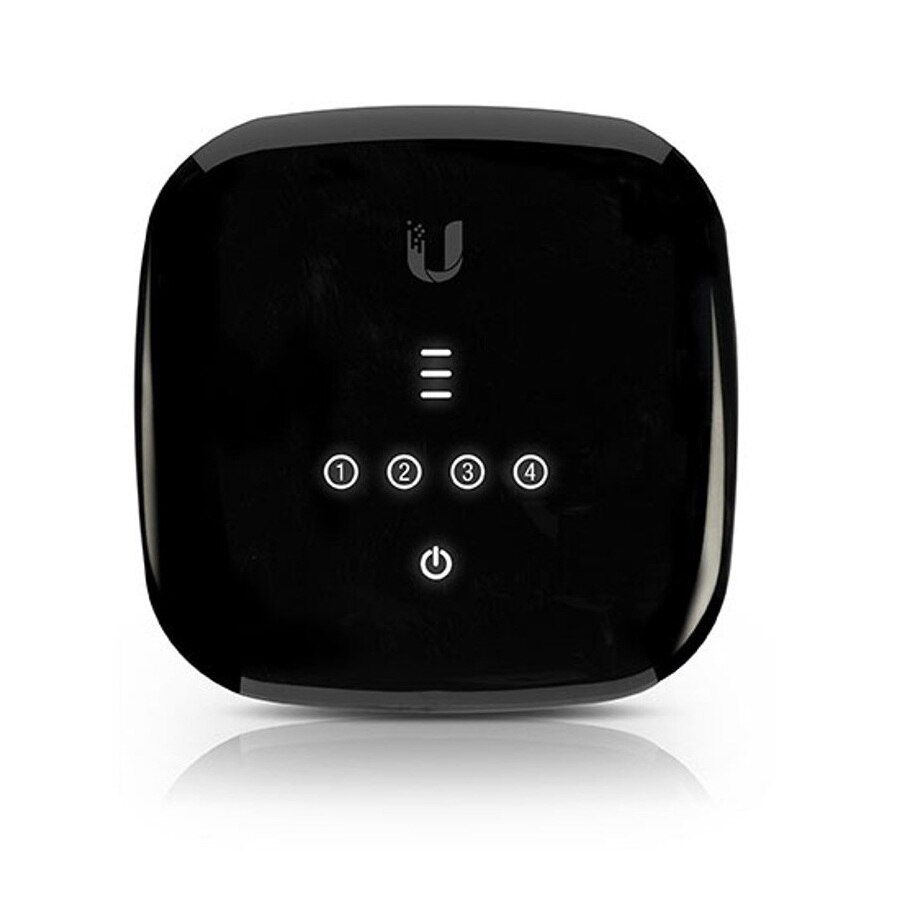

Ubiquiti UISP Fiber WiFi GPON CPE
- SKU: UF-WiFi-US
$95.16
- Manufacturer: Ubiquiti Networks
Product Information
GPON customer-premises equipment (CPE) with a built-in WiFi router.
Specifications
Specifications UF-WiFi
| Dimensions | 126.34 x 126.09 x 31.65 mm (4.97 x 4.96 x 1.25") |
| Weight | 190 g (6.70 oz) |
| Networking Interfaces | (1) SC/APC, GPON WAN (4) Gigabit RJ45, Ethernet LAN (1) Wi-Fi, 802.11n |
| Networking Interface Speeds GPON WAN, ITU G.984 GbE LAN Wi-Fi | 2.488 Gbps Downstream 1.244 Gbps Upstream 10/100/1000 Mbps 300 Mbps |
| Management Interface | In-Band Ethernet/PON |
| Normal Optical Power Range | TX (Class B+): 1.5 to 5 dBm RX: -28 to -8 dBm |
| Power Method | DC Jack, 24VDC 24V Passive PoE (Pins 4, 5+; 7, 8-) |
| Power Supply | 100-240VAC / 50-60 Hz Universal AC/DC Power Adapter: 24V / 0.5A |
| Max. Power Consumption | 7W |
| Supported Voltage Range | 20 to 28V |
| Processor Specs | MIPS, 900 MHz |
| Memory Information | 256 MB DDR |
| Buttons | (1) Reset |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
