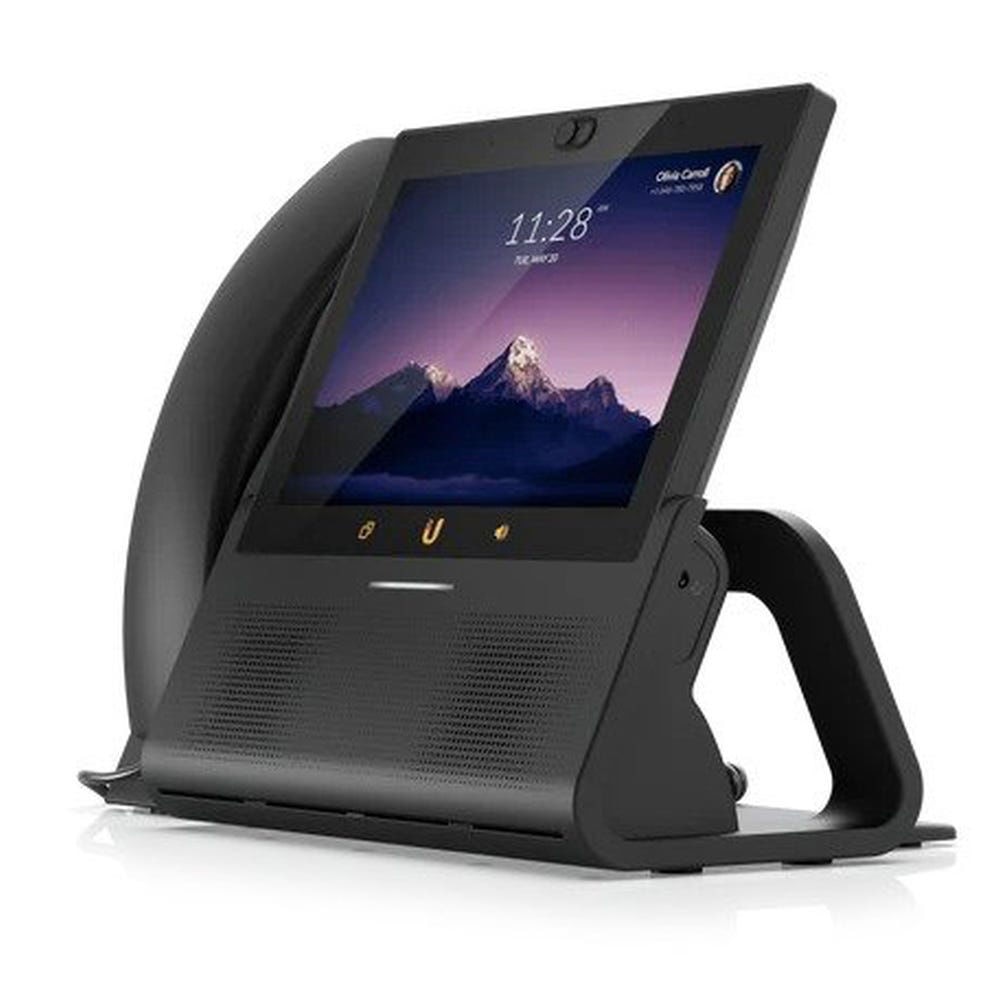

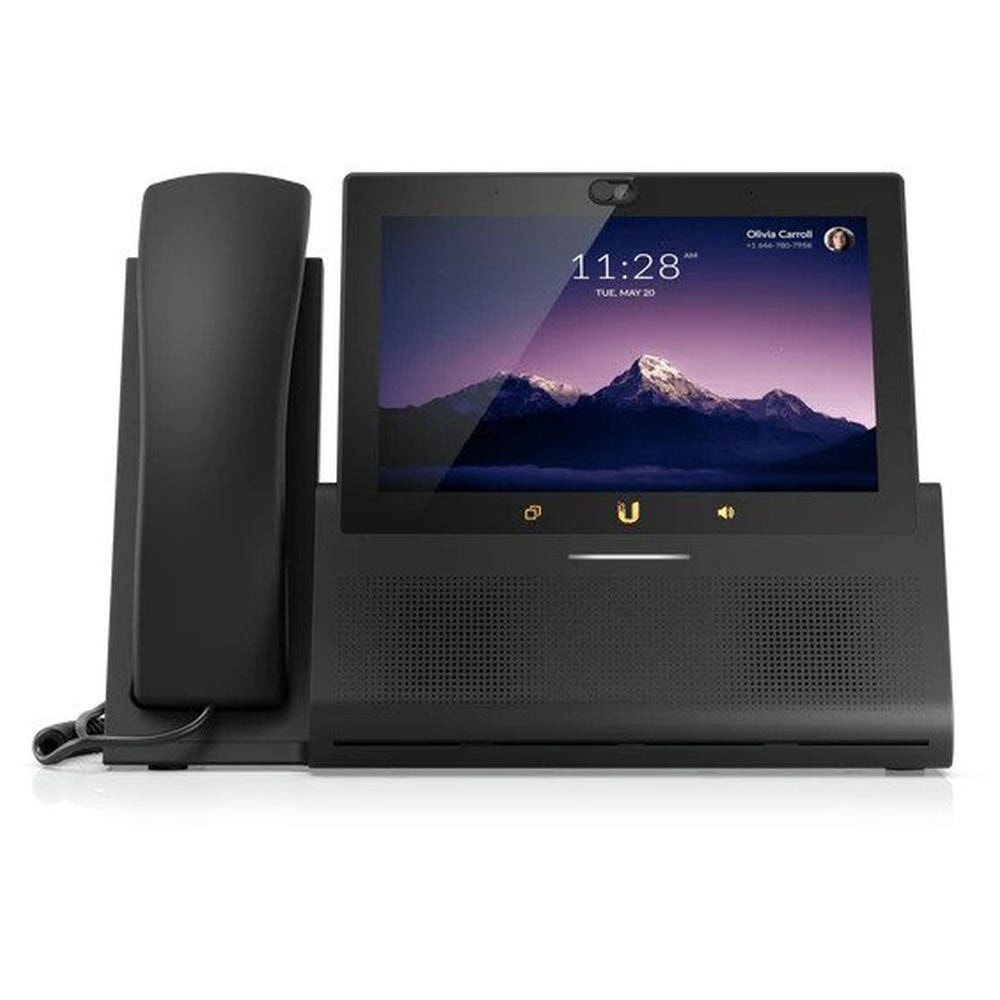

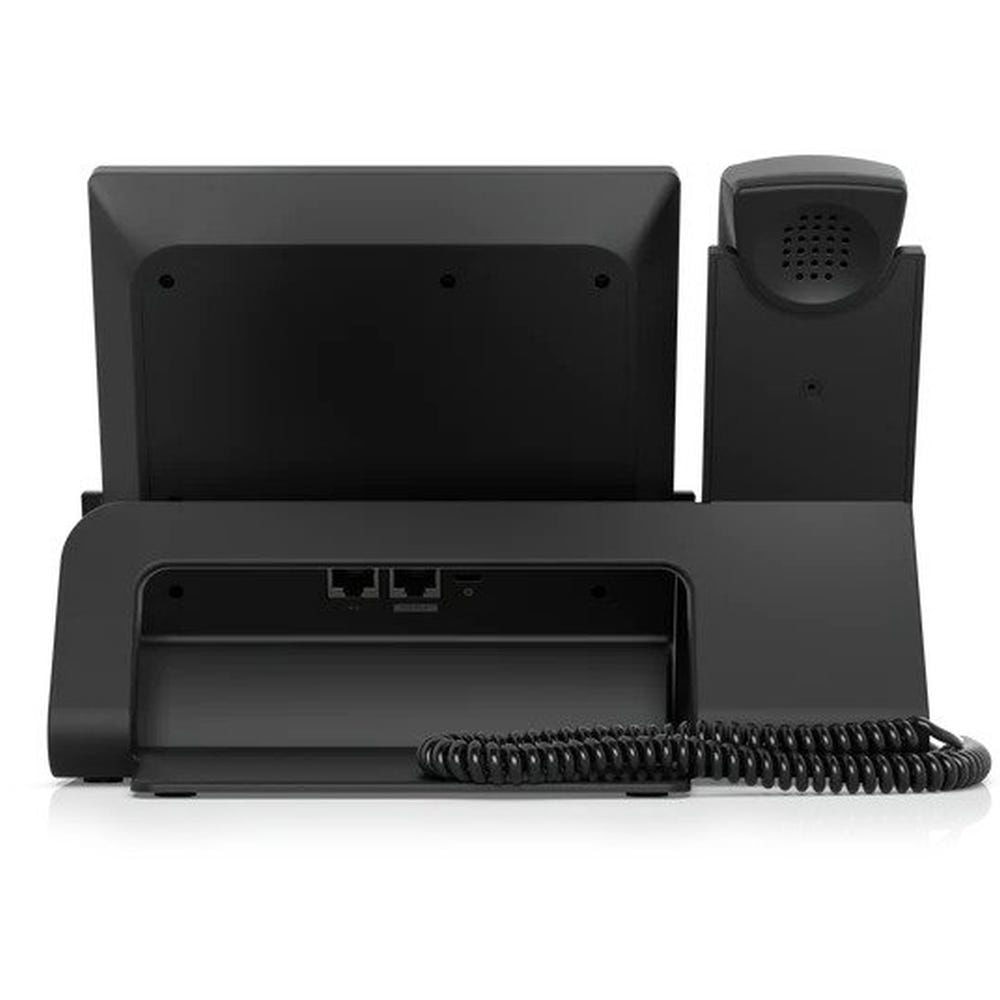

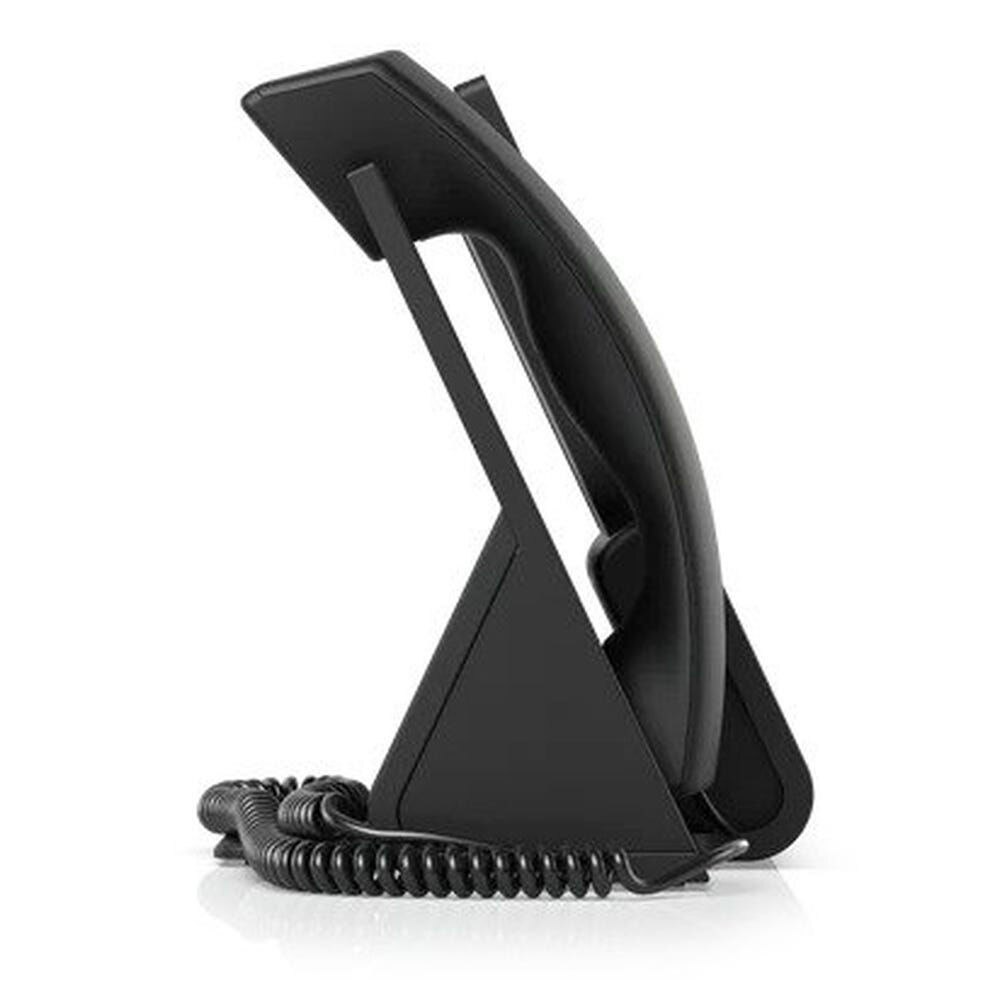

Ubiquiti Networks UTP-TouchMax-U
- SKU: UTP-TouchMax-U
$418.16
Product Information
Phone Touch Max (Unlocked)
Specifications
Specifications UTP-TouchMax-U
| Dimensions | 255 x 135 x 183 mm (10 x 5.3 x 7.2") |
| Weight | 1.52 kg (3.35 lb) |
| Enclosure materials | Plastic, aluminum (base) |
| Colour | Black |
| Display | |
| Display size | 178 mm (7") diagonal |
| Resolution | 1280 x 800 HD (16:10) |
| Screen technology | GFF multi-touch |
| Video | |
| Camera sensor | 5 MP |
| Resolution | 2592 x 1944 |
| Audio | |
| Handset dynamic receiver | 16 ohm SPL 116 dB @1KHz, 30mW, 0m |
| Handset microphone | Omnidirectional electret microphone SNR 70 dB Sensitivity -38 ± 3 dB |
| Codec | Standalone Hi-Fi audio codec IC Smart speaker amplifier |
| Hands-free speaker | 4 ohm/PNOM 3W, Pmax 5W SPL 79dB @1W, 0.5m |
| Hands-free microphone | Dual omnidirectional MEMS microphones SNR 64 dB Sensitivity -26 dBFS Digital microphone |
| Hardware | |
| Processor | Octa-core ARM® Cortex®-A53 at 1.8 GHz |
| Memory | Storage: 32 GB RAM: 2 GB |
| WiFi standards | 802.11 a/b/g/n/ac |
| Power input | PoE+ |
| Power output | Type-C port (charging only) |
| Connectivity | (2) RJ45, 10/100/1000 MbE Bluetooth® 4.2 WiFi 2.4G b/g/n, 20/40 Mhz WiFi 5G a/n/ac, 20/40/80 MHz, Slave DFS |
| Headset support | 3.5 mm (0.14") Audio jack |
| Operating temperature | 0 to 40° C (32 to 104° F) |
| Operating humidity | 10 - 90% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| LED | Power status: white glowing |
| Audio DSP algorithm | Active echo cancellation, noise suppression, blind source separation |
| Protocol | SIP/SDP/RTP/RTCP/VLAN/DHCP |
| Number of supported phone lines | Multiple |
| UniFi OS application | UniFi Talk |
| Minimum software requirements | Web browser (Chrome™ recommended) |
