Ubiquiti Networks UVC-G5-Dome-Ultra
- SKU: UVC-G5-Dome-Ultra
$178.18
- Manufacturer: Ubiquiti Networks
Product Information

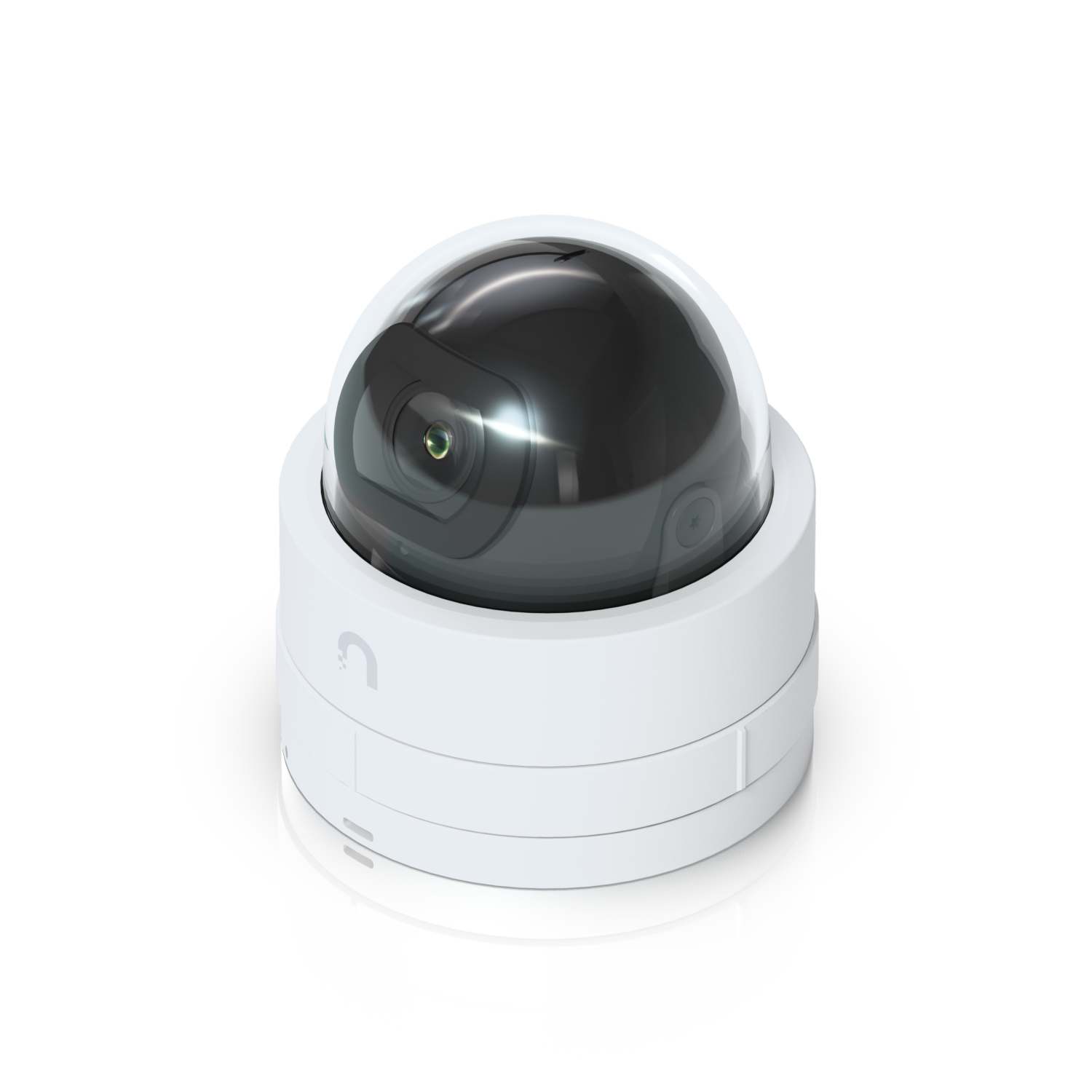

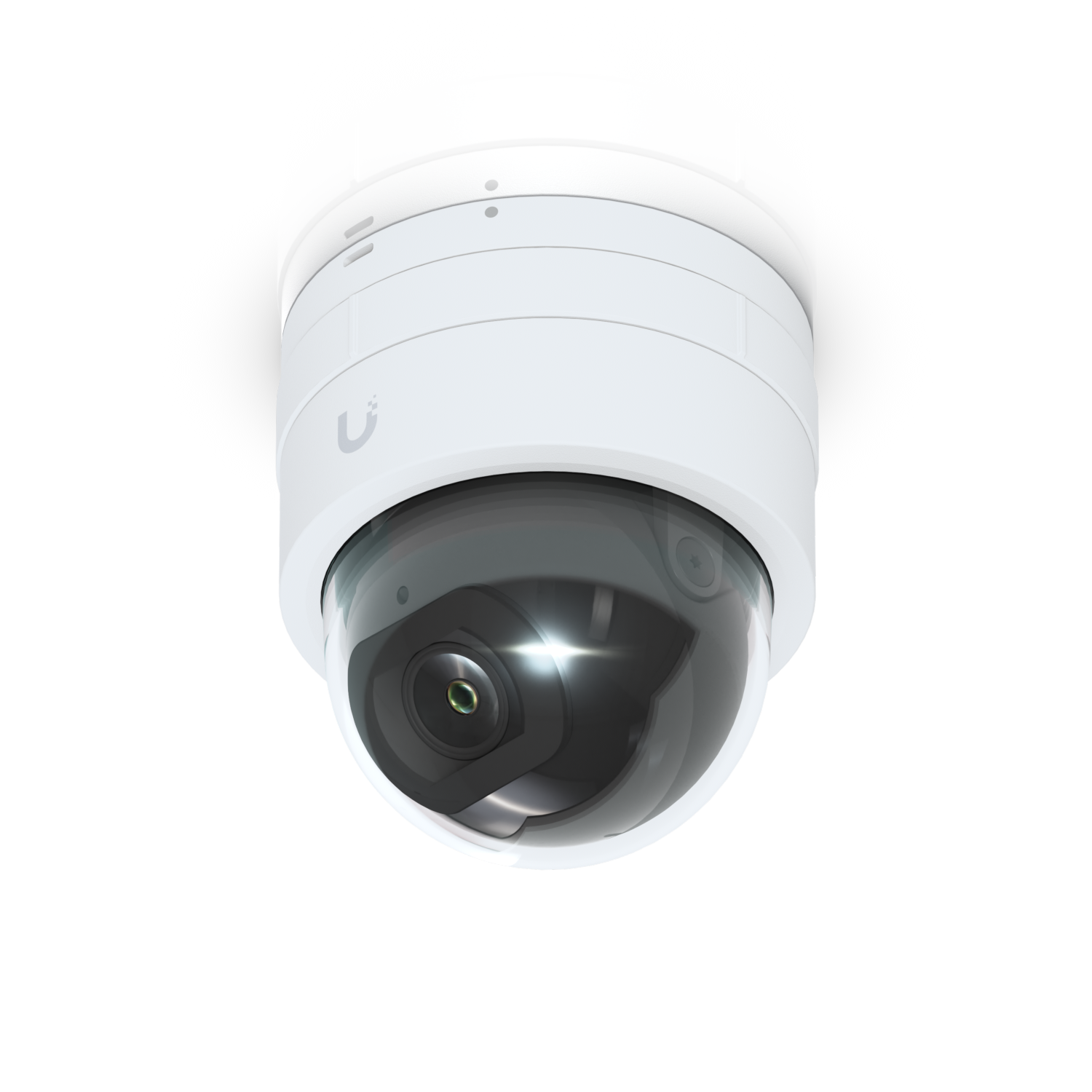

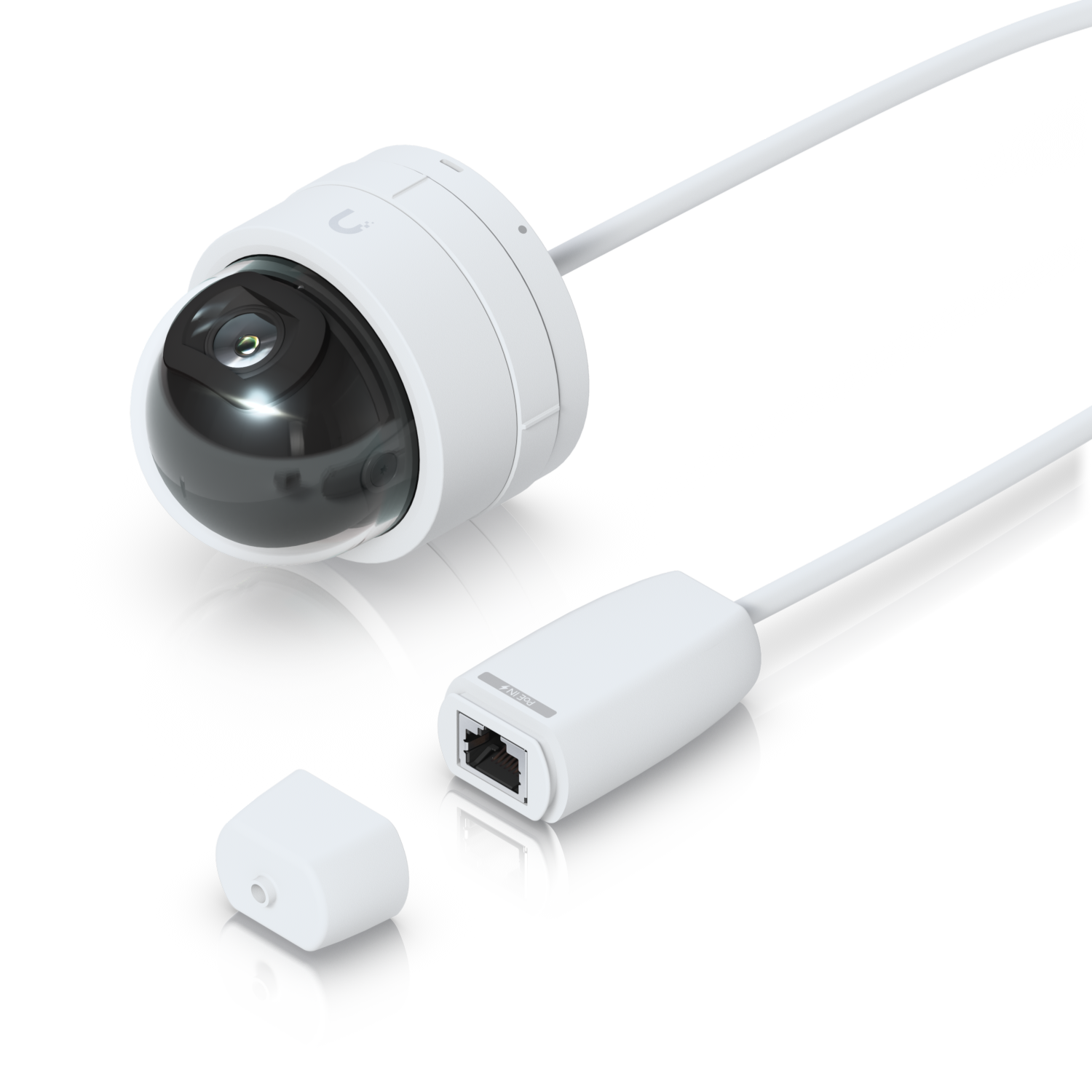

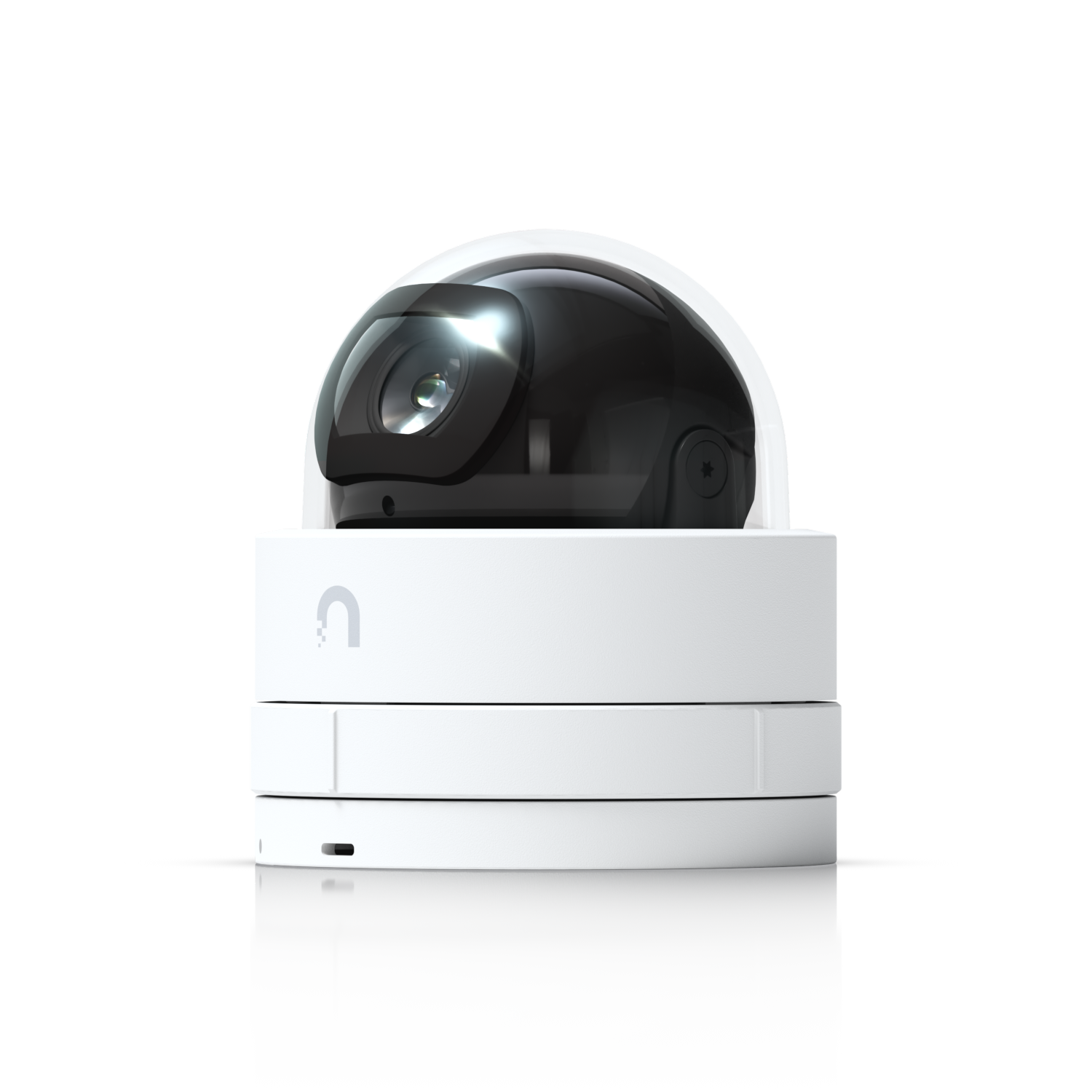

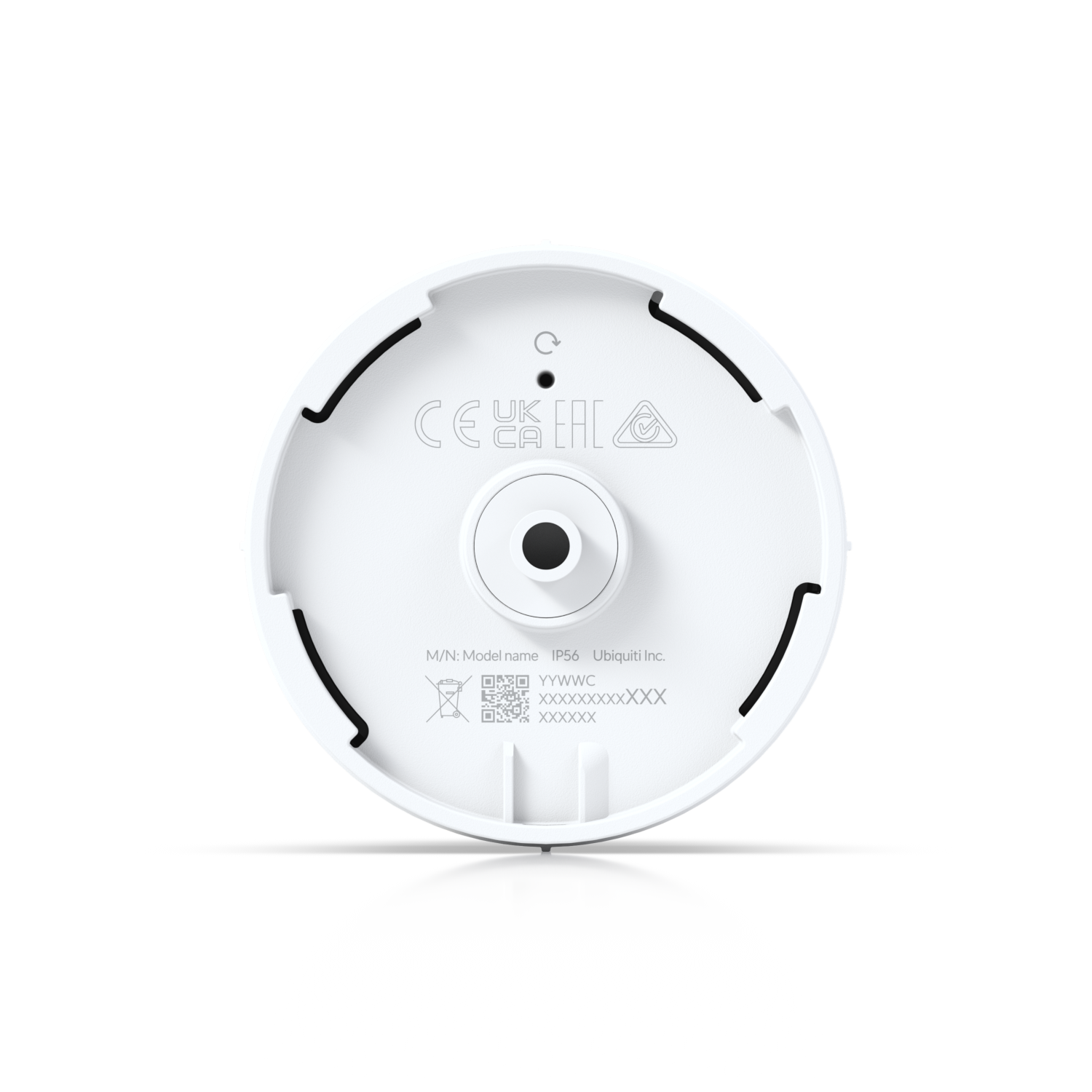

Ubiquiti Camera G5 Dome Ultra
Specifications
Specifications UVC-G5-Dome-Ultra
| Mechanical | |
| Dimensions | Ø63.6 x 68.2 mm (Ø2.5 x 2.7") |
| Weight | 175 g (0.38 lbs.) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Mount material | Stainless steel |
| Resistance | IK06 |
| Optics | |
| Sensor | 1/2.4" CMOS |
| Lens | Fixed focal length |
| View angle | H: 102.4°, V: 54.9°, D: 120.6° |
| Night mode | Built-in IR LED illumination and IR cut filter |
| IR distance | 20 m (65 ft) |
| Video | |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Max. frame rate | 30 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Networking interface | 10/100 MbE RJ45 port |
| Max. power consumption | 4.2W |
| Power method | PoE |
| Supported voltage range | 37–57V DC |
| Button | Factory reset |
| Mounting | Surface mount |
| Ambient operating temperature | -20 to 40º C (-4 to 104º F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
