Outdoor Hybrid Enclosure, 24 fiber, SM, LC, 18 Conductor, w/ 9 duplex SPD, w/ alarm, 16.7"H x 16.2"W x 7.9"D, Gland pattern 6
- SKU: OHE-24-9SPD-M-G6
$4,478.77 $4,570.17
- Manufacturer: viaPhoton
- Data Sheet: Download
Product Information
Outdoor Hybrid Enclosure, 24 fiber, Singlemode, LC, w/ 9 Duplex SPD, Gland pattern 6
Specifications
Specifications OHE-24-9SPD-M-G6
| Dimensions (ext) | 27 in H x 21 in W x 11 in D |
| Weight | 36 lbs. |
| Radios Supported | up to 9 |

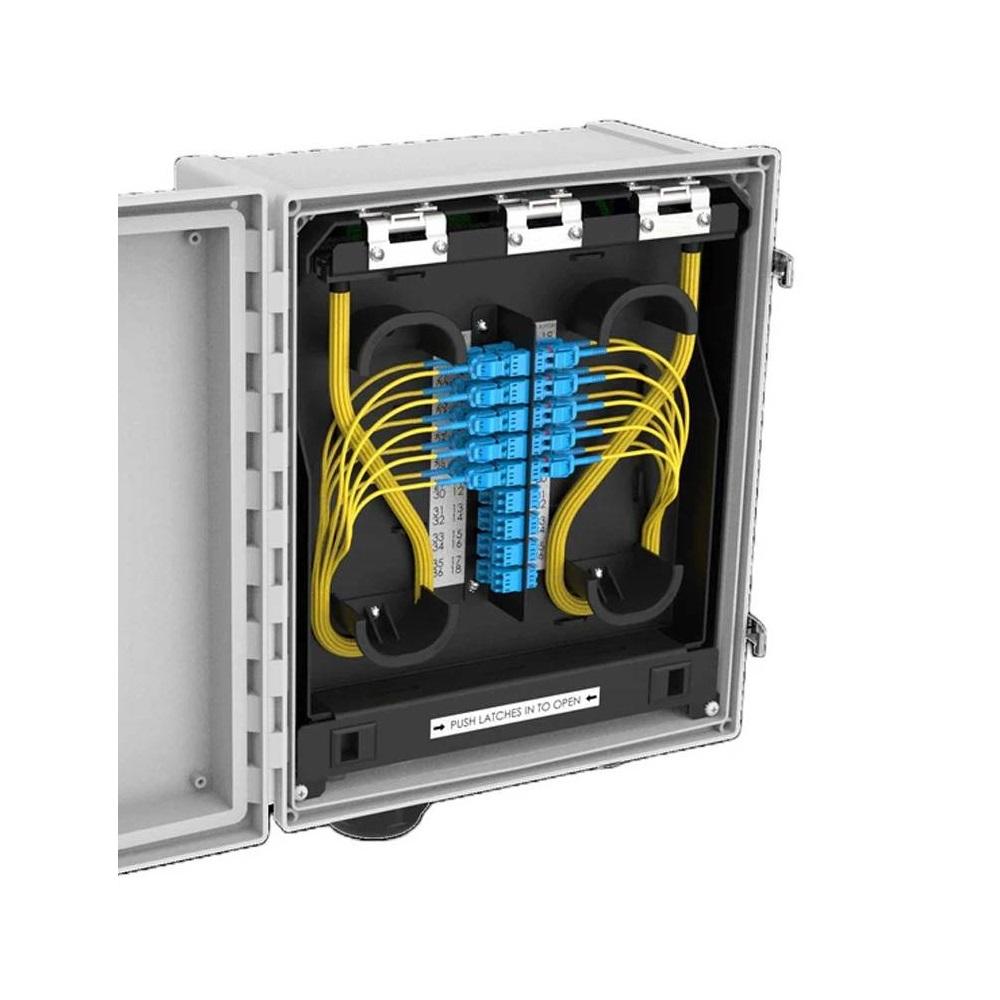

| Fibers | up to 36 max (18 duplex) |
| DC conductors | 18C (9 pair) 6-14 AWG |

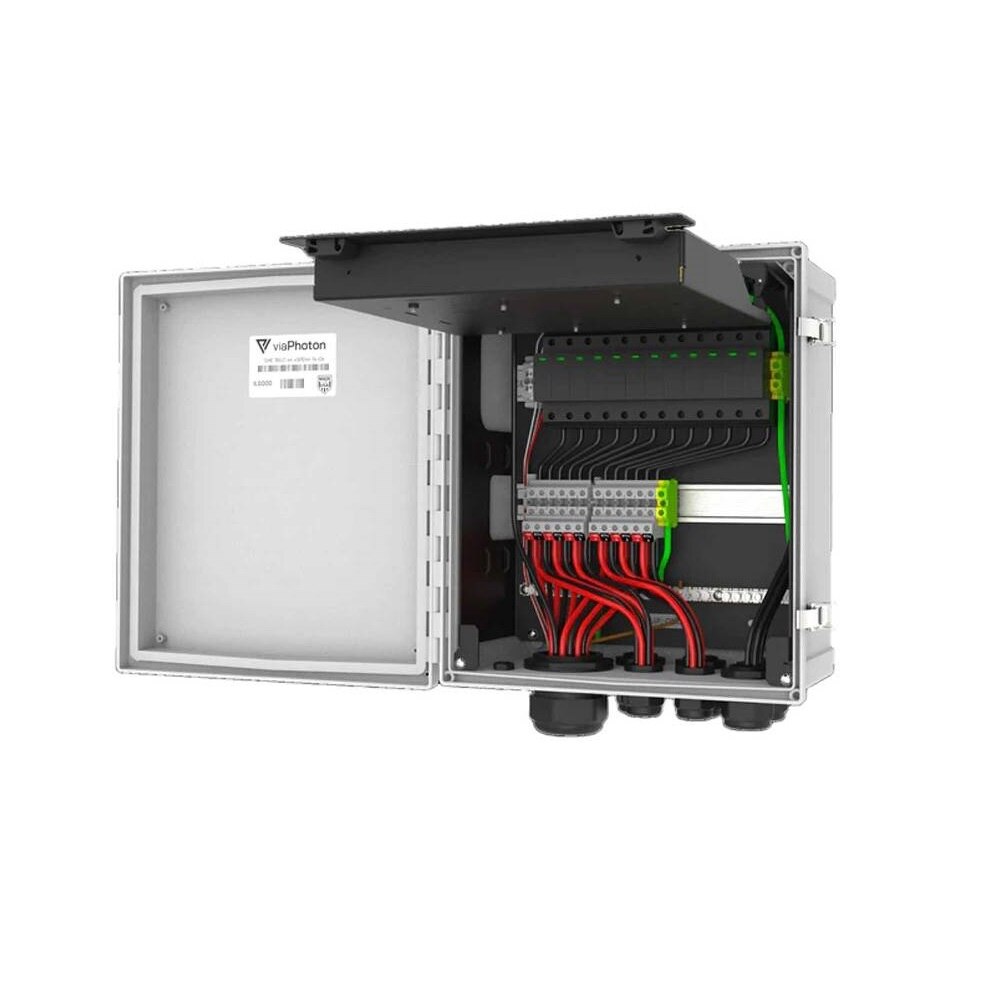

| Surge Protection, Class I / Type 2 | up to 9 circuits |
| Cable Gland Seal | custom configuration for cable diameters 5 mm-44 mm |
| STANDARD FEATURES | |
| Fiber Type | multi-mode or single-mode |
| DC Termination | screw activated with metal plate clamping |
| Security | stainless steel latch with padlock clasp |
| Outdoor Temperature Range | -40°C to +80°C |
| Environmental, Sealing | NEMA 4X |

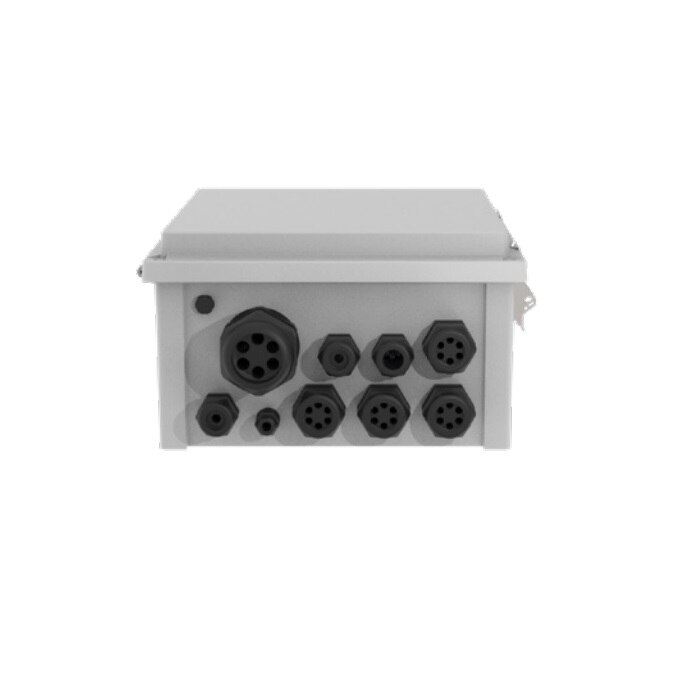

| Cable Entry | gland seal |

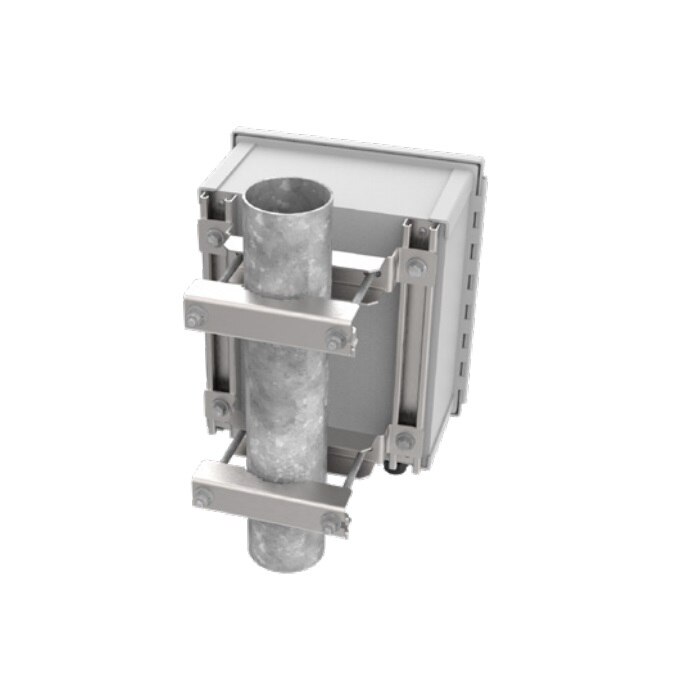

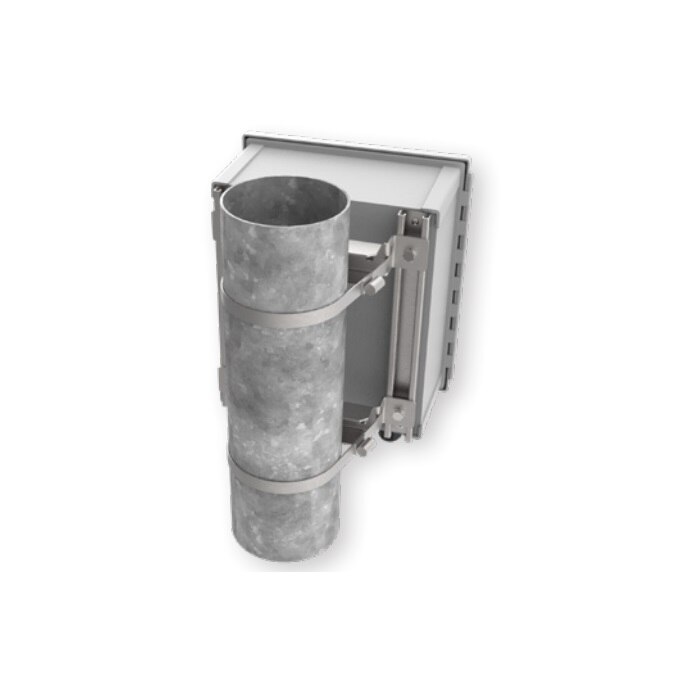

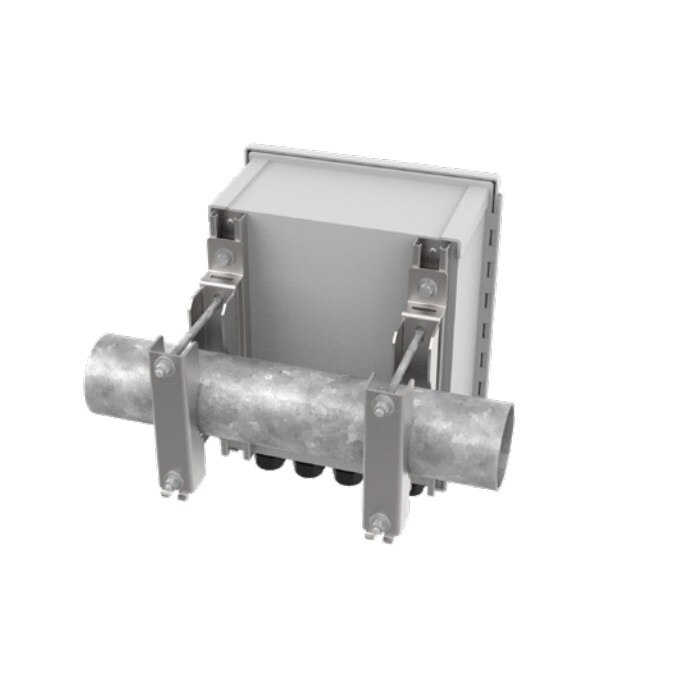

| Tower Mount | galvanized universal mount for horizontal or vertical pipe, 50 – 114 mm (2 - 4.5 in) OD with mounting and banding capabilities |
| Protection Class | Class I / Type 2 |
| Voltage Protection Rating | 400 V (UL 1449) |
| Nominal Operating Voltage | 48 VDC |
| Max Continuous Operating Voltage | 85 VDC |
| Max Surge Current | 50kA, 8/20 microseconds |
| Normal Discharge Current | 12.5kA, 8/20 microseconds |
| Response Time | ≤25 nanoseconds |
