Cambium Networks 8x 1Gbps 4x SFP+
- SKU: MXTX1012GxPA21
$1,606.50
+ $57.57 Tariff
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
Product Specifications- Power supply: 200W (DC-In:9V-65V)
- Maximum switch power (with traffic): 24.5W
- CPU speed: 800Mhz
- PoE power budget: 170W @ 30-65Vin, 120W @9-29Vin
- Cloud managed
- Non-blocking, fully managed, enterprise grade, L2 / L3 switch
- Comprehensive / intelligent PoE solution
- 802.3af/at/bt - up to 90W
- 24V passive PoE - up to 15W
- 54V passive PoE - up to 90W
- AC and DC models available
- Zero touch simplicity with automated configuration
- Automated security with device profiling and policy enforcement
- Rack, DIN rail, or wall mountable with optional accessory

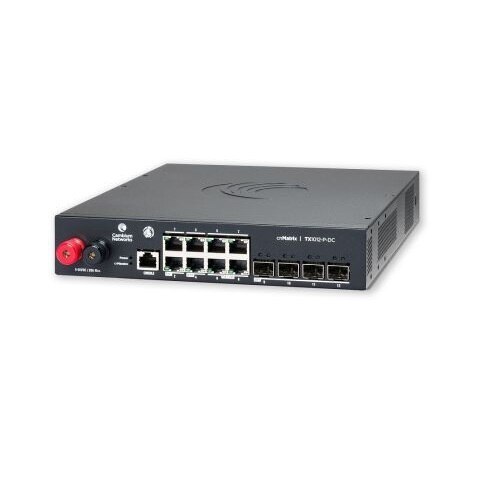

- 1x Cambium Networks cnMatrix TX1012-P-DC DC Powered Intelligent Ethernet PoE Switch
WARNING: The Cambium Networks TX1012-P-DC switch does not have an isolated input / output power supply. The switch must be powered with a positive polarity power source, otherwise damage to the switch will occur.
Specifications
| Throughput | 96Gbps |
| Forwarding Rate in Mpps (64Byte Packets) | 120 |
| 10/100/1000Mbps RJ45 Ports | 8 |
| 1Gbps Fiber Ports (SFP) | 0 |
| 10Gbps Fiber Ports (SFP+) | 4 |
| PoE+ Enabled Ports 802.3af/at/bt | 8 |
| Low Voltage Passive PoE (24V) | 4 |
| High Power 4PPoE (up to 90W) | 2 |
| Serial Console | Yes |
| Rack Mount Kit | Yes, optional |
| Internal Fans | 1 |
| Reset Button* | Yes |
| MAC Address Table Size | 16K |
| Flash Storage | 128MB |
| DRAM | 512MB |
| VLANs | 4K |
| QinQ* | Yes |
| LACP/Trunking | 8 LAGs / 8 links per LAG |
| QoS Priority Queues | 8 |
| PVRST | 32 |
| Ingress/Egress ACL | 128 |
| Static ARP Entries | 512 |
| ARP Entries | 512 |
| Static Routes | 64 |
| Dynamic Routing | 512 |
| IGMP Multicast Groups | 256 |
| Policy Based Automation | Yes |
* Feature to be included in a future release.
