Ethernet Power Controller 7
- SKU: EPCR7
$588.86 $662.82
- Manufacturer: Digital Loggers
- Data Sheet: Download
Product Information

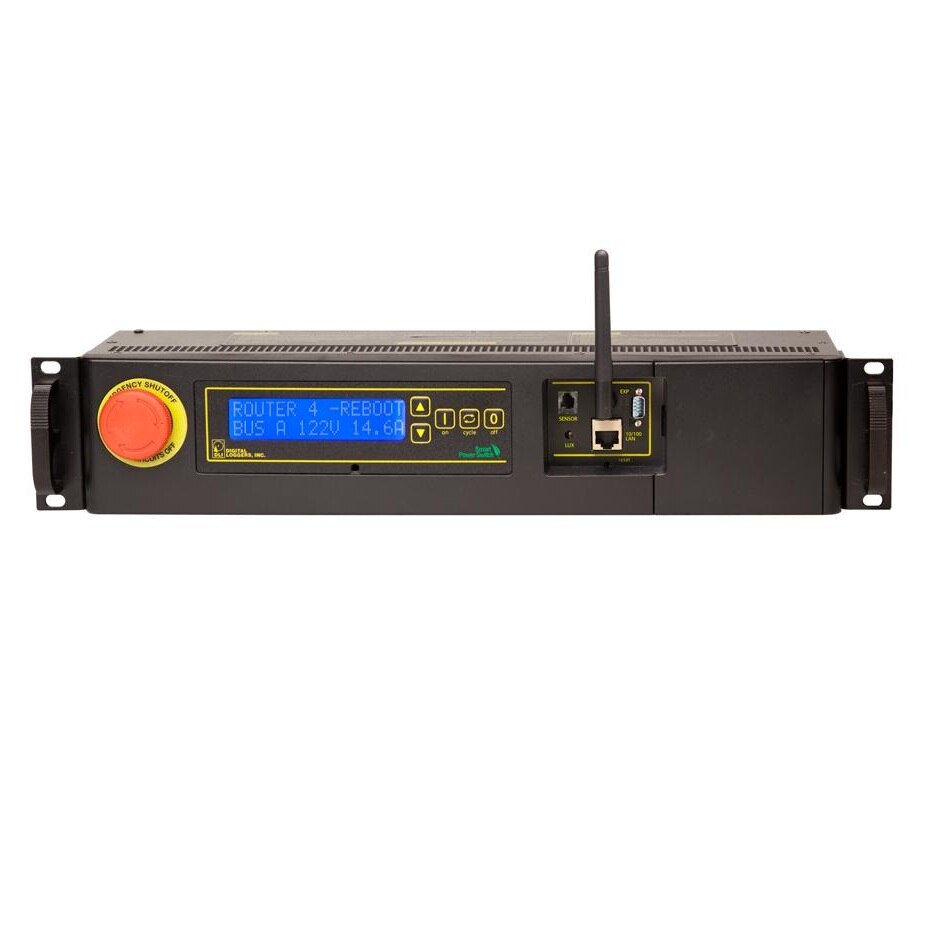

Digital Loggers Ethernet Power Controller 7
Specifications
Specifications EPCR7
| Operating Input Voltage | 60-140V Autosensing. 5-15 NEMA UL receptacles are for 120VAC applications only. See C-13 variant for 208-240V |
| Input Frequency | DC-400Hz (P/S Operation) |
| Power Consumption | 3.5-5.3W |
| Web Sever Backup | Long life rechargable battery 8-35 minute backup time |
| Surge Suppression | Dual MOV, 3600J rating |
| Ethernet Interface | 10/100 autosensing, Static IP port selectable, RJ-45 with FCC |
| Memory | 32MB Flash, 256MB SDRAM |

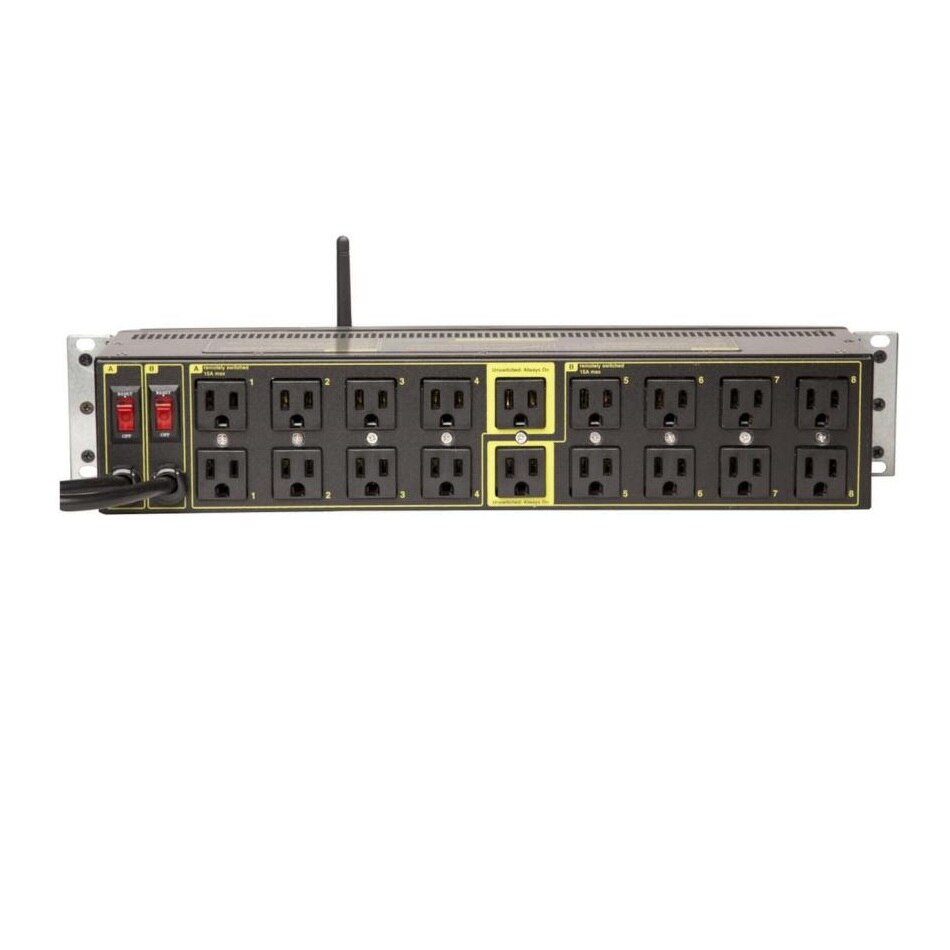

| Outlets & Plugs | 18 x outlets NEMA 5-15R, 15A, 8 switched pairs, 2 unswitched |
| Security | HTTPS, SSL, SSH, SNMP3 |
| Control Relays | 40A contact, 10^6 mechanical |
| Power Cords - L5-15 | 14AWG, UL SJT FX3C, 9' Length |
| Power Fail Hold-Over | 300ms minimum (all on) |
| Indicators | Backlit 2x16 LCD, Alert Beeper Audio level 71dBA at case |
| Sensors & I/O | AC current and voltage, optional external temp probe, juminance, battery and relay control voltage 1-wire port, 0-10V ADC inputs, 400mA 50V OC GPIO output, RS232 |
| Supplemental Protector | 2x15A thermal breakers, UL / CSA |
| Switches &Controls | Keypad, on/off/cycle/lock. Locking Emergency-OFF Reset-to-defaults menu button |
| Curent Metering | +/-5% or .3A , .2-20A, 2% typical |
| Voltage Metering | 80-150VAC, +/-5%, 1% typical |
| WiFi | 2.4GHz bgn 19dBm |
| Dimensions | 19* RETMA rack, 2-U 3.5* height 4.5" depth, 1.25" front protrusion |
| Weight | Bare unit 8.2 lbs, Ship wt. 11lbs |
| Operating Temperature | -30º to 170º F, -34º to 77º C |
| Enclosure Material | Rolled steel, non flammable powder coated, plastic fascia only. |
