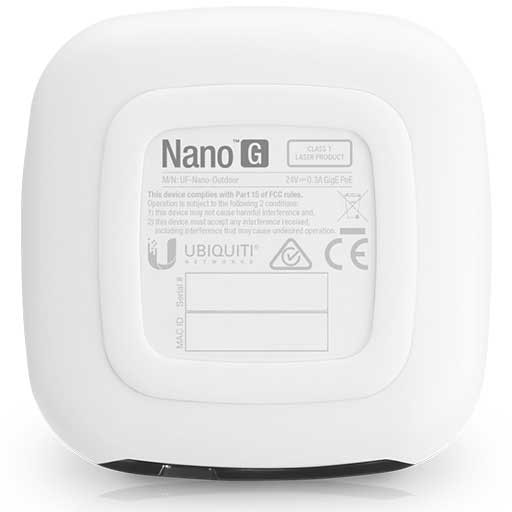

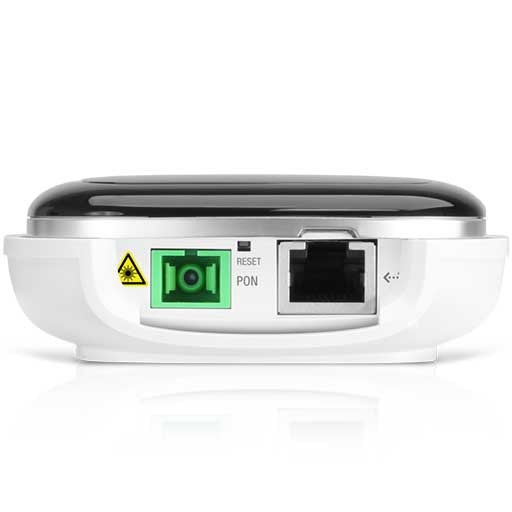

Ubiquiti UniFi Fiber Nano GPON CPE
- SKU: UF-NANO
$96.71
Product Information

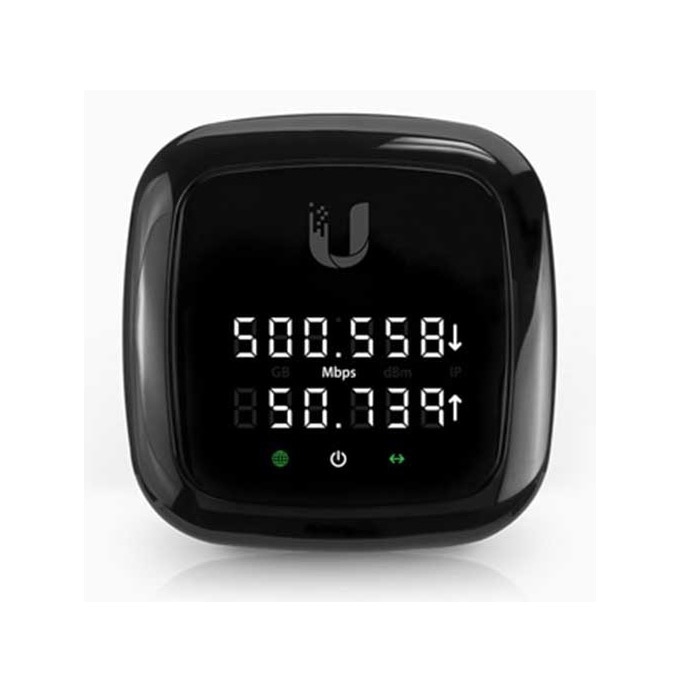

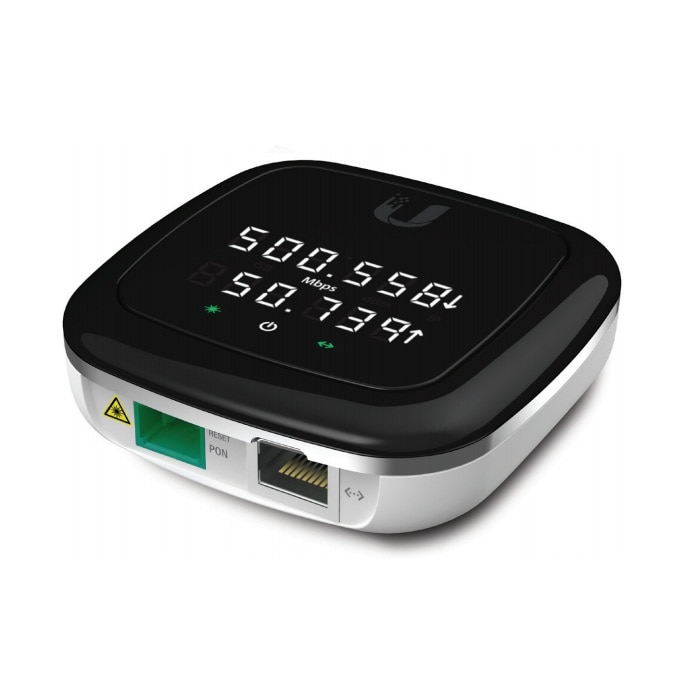

GPON customer-premises equipment (CPE) with an LED display for convenient device monitoring.
Specifications
Specifications UF-NANO
| Dimensions | 77 x 77 x 28 mm (3.03 x 3.03 x 1.1") |
| Weight | 110 g (3.88 oz) |
| Networking Interface Speeds | (1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream (1) GbE LAN, 10/100/1000 Mbps |
| Management Interface | In-Band Ethernet/PON |
| Normal Optical Power Range | TX (Class B+): 1.5 dBm to 5 dBm RX: -8 dBm to -28 dBm |
| Power Method | Passive PoE (Pins +4, 5; -7, 8) Dying Gasp Support |
| Power Supply | PoE Adapter: 24V, 0.3A (Included) |
| Max. Power Consumption | 7W |
| Supported Voltage Range | 20V to 28V |
| Processor Specs | MIPS-32, 240 MHz |
| Memory Information | 128 MB DDR3 |
| Buttons | (1) Display Information (1) Reset |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
