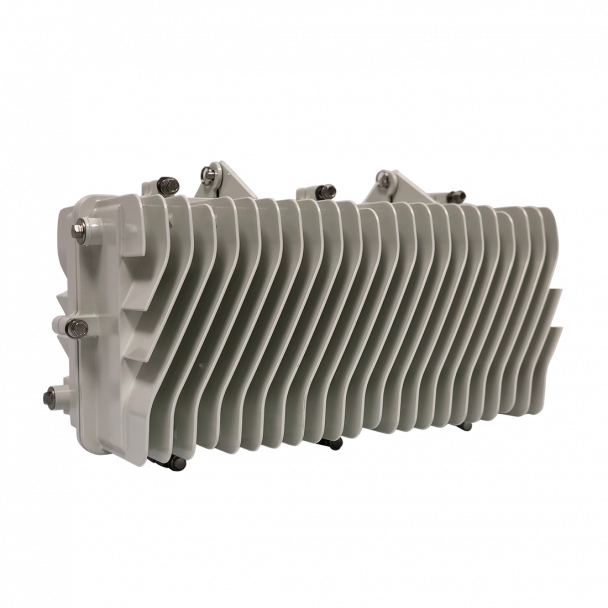

ADTRAN SDX 6312-4 Sealed OLT with 4 PON ports. The bundle includes the housing (11971310F1), the AC/DC power supply (11971316F1), the OLT main board (11971318F1), SDX OLT Ground kit (11971425F1).
- SKU: 41971310F1
$25,096.68
+ $732.66 Tariff
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
SDX 6312-4 PON OLT AC/DC
Specifications
Specifications 41971310F1
| 10G Combo PON Supported | Yes |
| XGS-PON Interfaces | 4 |
| GPON Interfaces | 4 |
| Uplink Interfaces | 4x10GE SFP+ |
| Jumbo Frames MTU | 9216 Bytes |
| MAC Addresses | 256K |
| Multicast Groups | 50 |
| Multicast Streams | 32K |
| Rack Units | Environmentally Sealed |
| Mounting Brackets | 0 |
| Airflow Options | Fan-less Conductive Cooling |
| Baffle Kits Available | 0 |
| Dimensions (DxWxH) | 243 x 515 x 280 mm 9.56 x 20.27 x 11.02 in |
| Weight | 35 lbs/16 kg |
| Powering Options | AC/DC or SPAN |
| Typ Power Consumption w/o Optics | TBD |
| Max Power Consumption w/o Optics | 125 W |
| Temperature Range | -40 to 65°C |
| Relative Humidity | up to 95% non-condensing |
