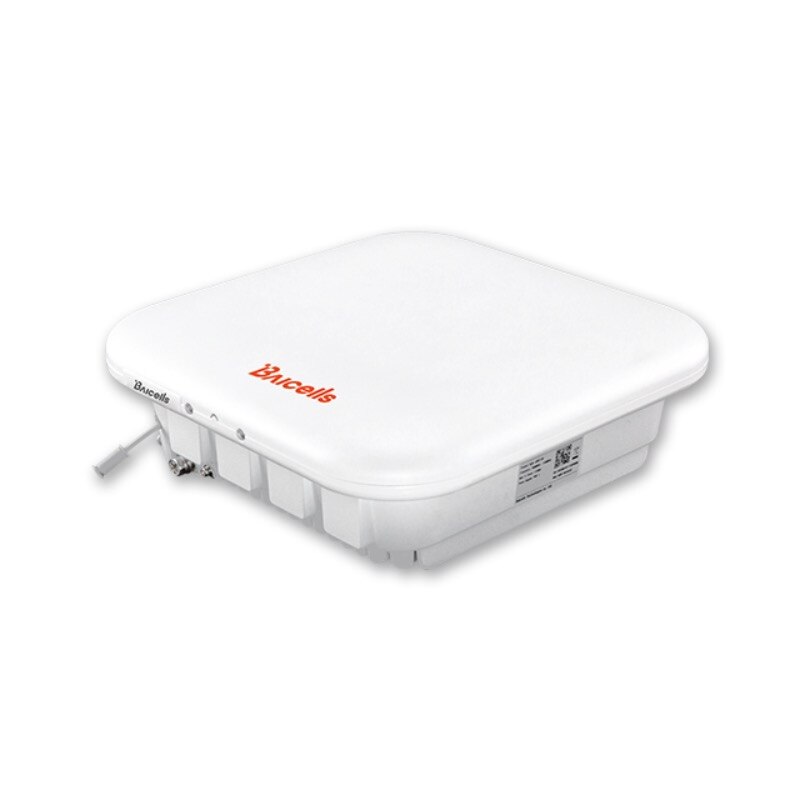

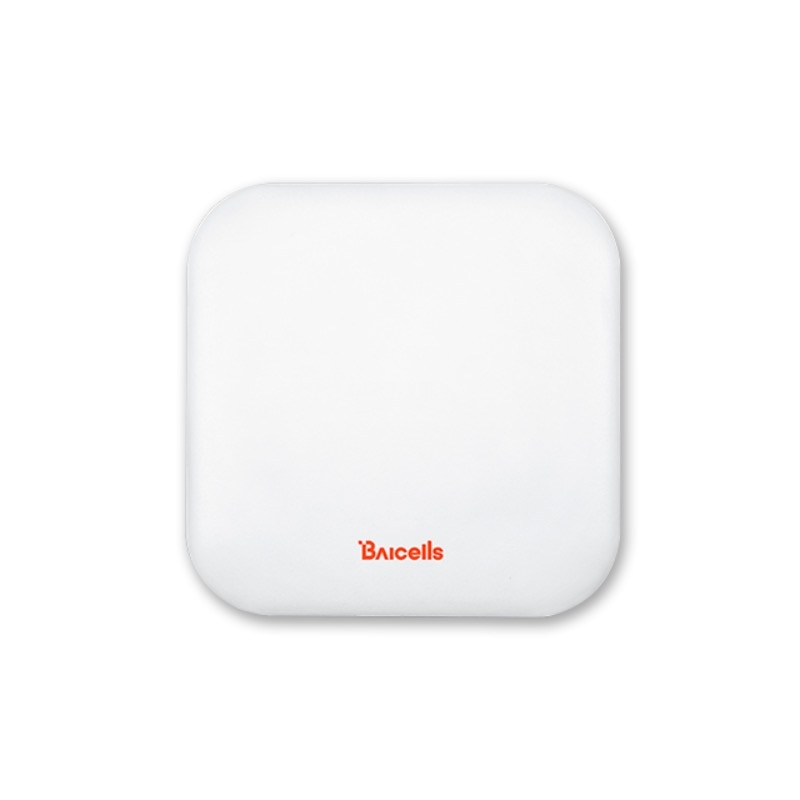

Baicells Atom OD04 Outdoor High-Gain UE, 2.5 GHz
- SKU: EG7035E-M1
- Manufacturer: Baicells
- Data Sheet: Download
Product Information
The Baicells Atom OD04 Outdoor High-Gain User Equipment (UE) provides superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and voice services to end-users. The UE operates with standardized LongTerm Evolution (LTE) Time Division Duplexing (TDD) to enable high-speed, wireless communcations. Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the UE simultaneously. The product comes with a standard one-year warranty.
Product Features- Supports LTE TDD Bands 40/41/42/43/48
- 2.5 GHz or 3.5 GHz models
- Complies with 3GPP Release 9 Cat4 standards
- 100 Mbps Ethernet interface
- GUI-based local and remote Web management
- TR069 network management protocol support
- Cell lock, SIM lock, and pin lock
- Built-in bipolar, directional, high-gain LTE antenna
- User-friendly LED status indicators
- Power supply with PoE
- Pole or wall mount
- Wi-Fi assisted alignment
- Baicells Atom OD04 Outdoor High-Gain UE, 2.5 GHz
Specifications
Specifications EG7035E-M1
| BASIC SPEC | |
| LTE Standard | 3GPP Release 9 Cat4 |
| ETH LAN Port | 1 RJ-45 port 10/100 auto-sensing, autoMDX, PoE |
| LED Indicators | MIU, LTE, SIM, LAN, PWR, LTE Signal |
| USIM | 1.8V/3V 2FF |
| Restore Button | Press for 10 seconds to restore the UE to its factory settings |
| Power Supply | Input: Universal range 100V to 240V AC Output: PoE (24VDC, 0.5A) |
| Dimensions (HxWxD) | 9.8 x 9.8 x 3.2 inches 248 x 248 x 80 millimeters |
| Weight | 4 lbs / 1800 g |
| RF SPEC | |
| LTE Mode | TDD |
| Channel Bandwidth | 5/10/15/20 MHz |
| MAX Output Power | 23± 2dBm |
| Frequency Bands | 40/41/42/43/48 and customized |
| Peak Rate (20 MHz) | DL 100 Mbps, UL 10 Mbps (2:7) |
| Modulation | DL: QPSK, 16QAM, 64QAM UL: QPSK, 16QAM |
| Receive Sensitivity | -94 dBm @ QPSK, 20 MHz, 25°C |
| Antenna Type | Internal directional, 1T2R |
| Antenna Gain | 19.5 dBi @ 3.x GHz, 2 ports 14 dBi @ 2.x GHz, 2 ports |
| Antenna Polarization | ± 45° |
| Antenna Efficiency | > 70% |
| Isolation | ≤ -20dB |
| VSWR | ≤ 2.5 |
| Horizontal Beamwidth (3 dB) | • 35 ±5° @ 2.x GHz, 2 ports • 25 ±5° @ 3.x GHz, 2 ports |
| Vertical Beamwidth (3 dB) | • 35 ±5° @ 2.x GHz, 2 ports • 25 ±5° @ 3.x GHz, 2 ports |
| SOFTWARE SPEC | |
| Network Mode | NAT or Bridge |
| IP Protocol | IPv4/IPv6 |
| SIM | PIN management, SIM lock |
| Network Connection | Auto or manual |
| LTE Scan Mode | Full band scan, frequency lock |
| WLAN | WPS, MSSID isolation, VLAN |
| VPN | L2TP, GRE, PPTP, L2 VxLAN |
| NAT | Port forwarding/trigger, DMZ, ALG |
| Firewall | IP/MAC/URL filter; access control; block port scanner/SYN flood; SPI filter |
| Network Mgmt | TR069, SNMP |
| Diagnostics | TCP dump, ping, traceroute Statistics LTE status; connection / system up time; device status; DHCP client list; Wi-Fi station list; |
| Maintenance | Date and time setting; reboot; restore factory settings; restore/back up config files; firmware upgrade locally or OTA |
| System Logs | Operating; run-time; filter / select / display / export |
| WI-FI SPEC | |
| Standard | IEEE 802.11b/g/n |
| Channel Bandwidth | 20/40 MHz |
| Frequency | 2.4 GHz |
| Peak Rate | • 802.11b: 11 Mbps • 802.11g: 54 Mbps • 802.11n: 300 Mbps |
| Modulation | DSSS/CCK, OFDM |
| Receive Sensitivity | • -64 dBm @ 65 Mbps, typical for 802.11n • -65 dBm @ 54 Mbps, typical for 802.11g • -76 dBm @ 11 Mbps, typical for 802.11b |
| Max Output Power | 10 ± 3 dBm |
| Antenna Type | Internal omni, 1T1R |
| Antenna Gain | 0 dBi |
| ENVIRONMENTAL SPEC | |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -40°F to 158°F / -40°C to 70°C |
| Operating Humidity | 5% to 95% |
| Ingress Protection Rating | IP67 |
