Product Information

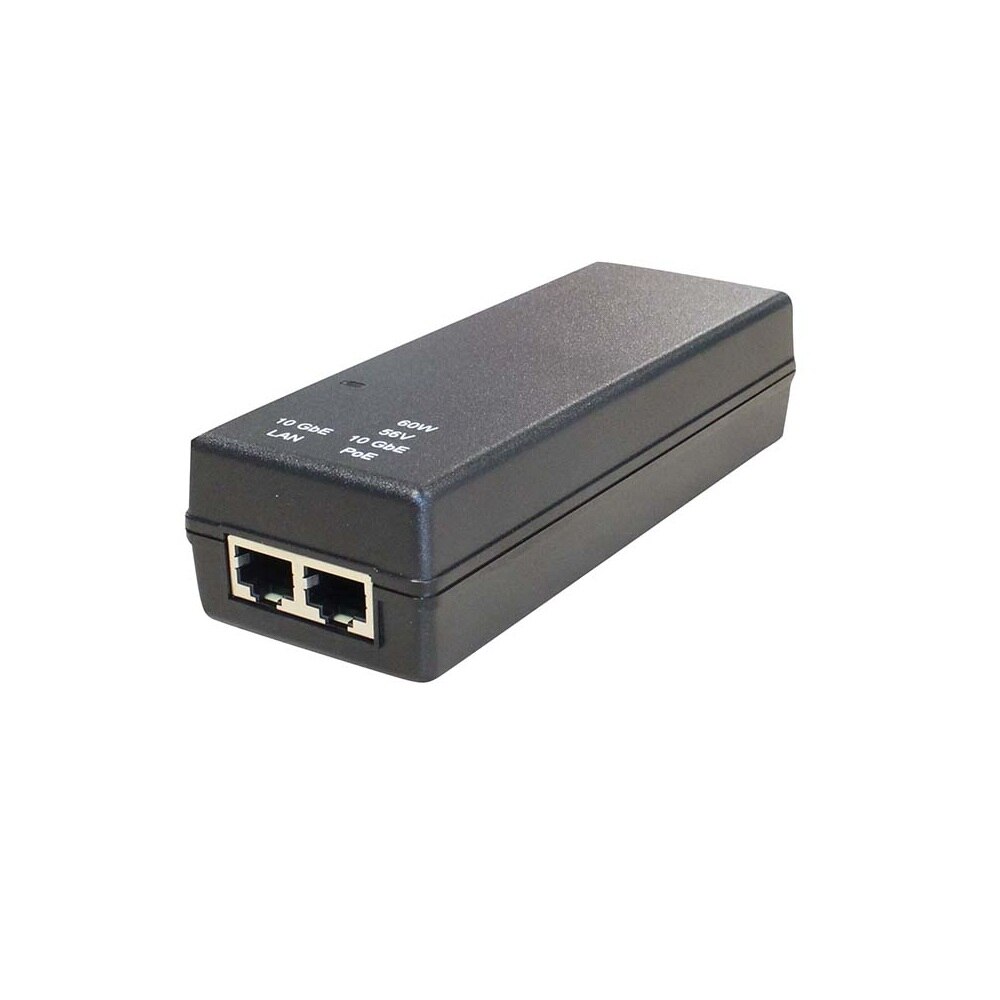

Cambium Networks radios utilize PoE (Power over Ethernet) for delivering power and data. This PoE injector drives a 56V, 60W power plus data (PoE) output to the radio. Cambium meets stringent Level VI efficiency requirements and carries regulatory compliance for deployment in most locations around the world.
Product Specifications- 2x RJ-45 Data Connectors (Data In; Data+Power Out)
- DC Output voltage 56 VDC ±5%
- Energy Level 6 efficiency
- 60W maximum output power
- PoE injector only
- Line cord: WC-N000900L007A
Specifications
Specifications C000000L141A
| Data Connectors | Two x RJ-45 (Data In; Data+Power Out) |
| AC Power Input Connection | 3-wire AC inlet; c6 |
| AC Power Input | 90 to 264 VAC; 47 to 63 Hz |
| DC Output voltage | 56 VDC +/- 5% |
| Efficiency | Energy Level 6 |
| Output Power | 60W maximum |
| Hold-up Time | 10 ms min |
| Operating Temperature | 0° C to 50° C |
| Humidity | 10-90% |
| Waterproofing | Indoor Use |
| Regulatory | ROHS / WEEE compliant ESD: EN61000-4-2, Line Surge: EN61000-4-5 Safety: UL62368-1 |
