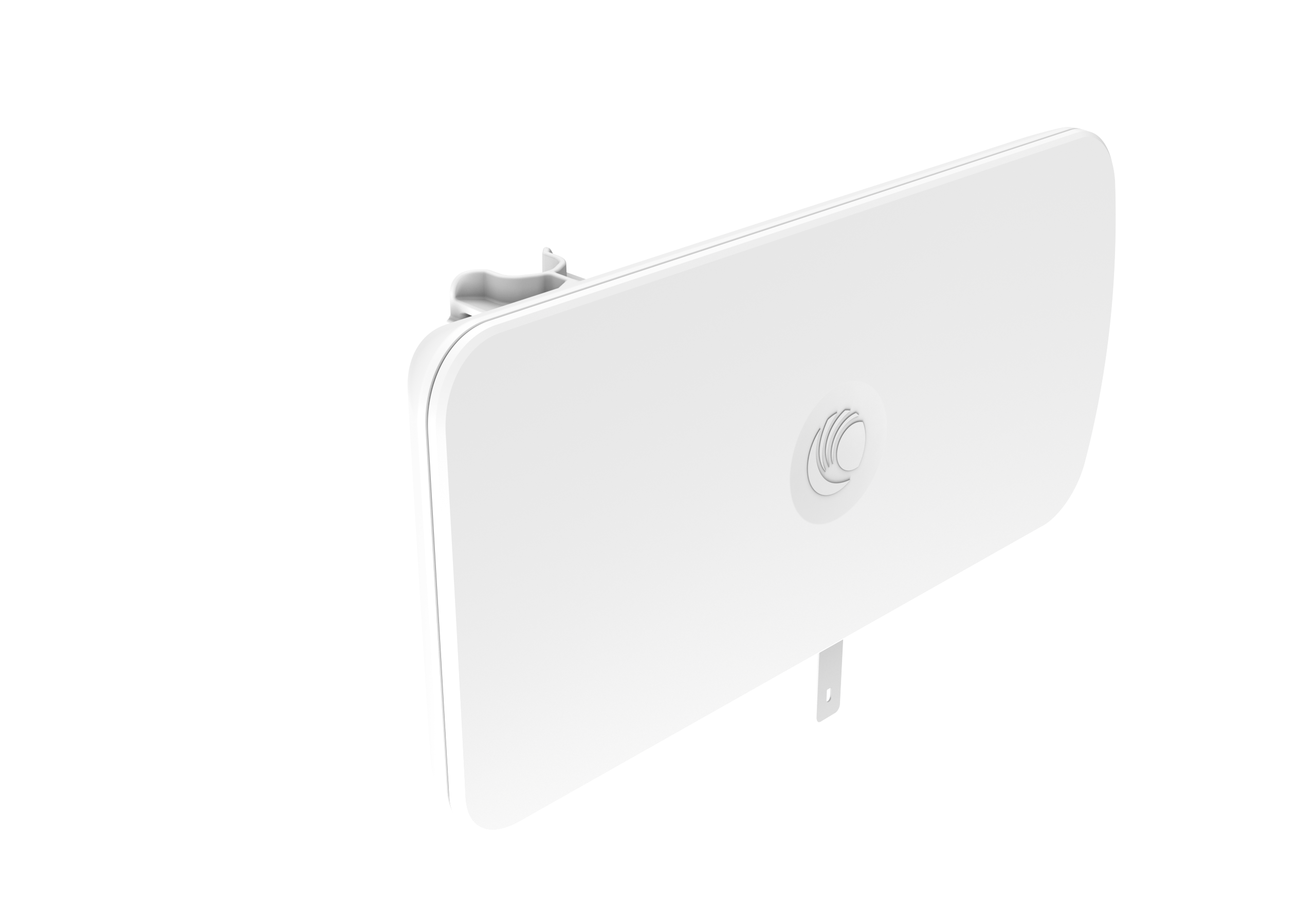

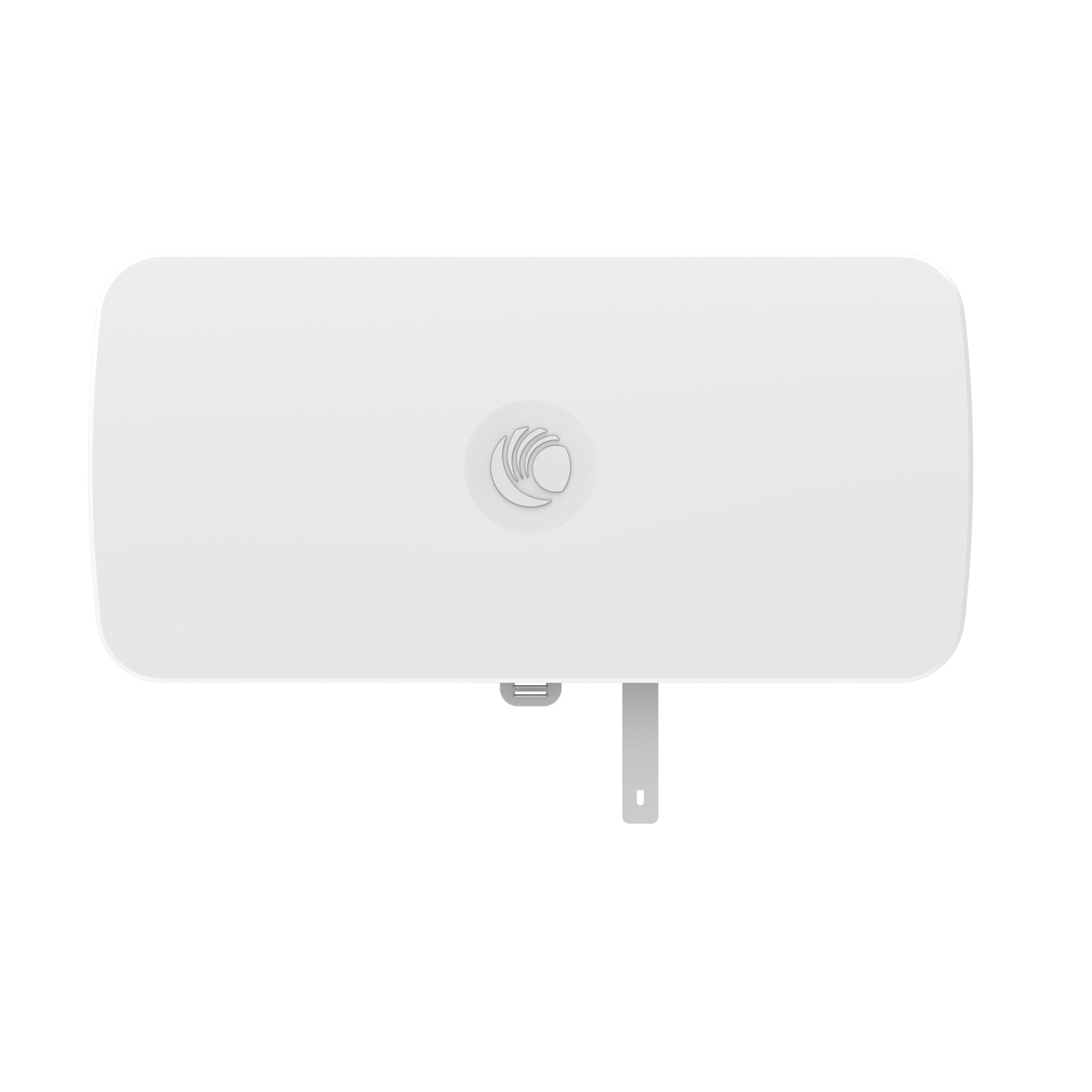

Cambium ePMP 6 GHz Force 4616 SM Radio (IC/FCC) (US Cord included)
- SKU: C068940C132A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C068940C132A
ePMP 6 GHz Force 4616 SM Radio (IC/FCC) (US Cord included)
Service providers face ever-increasing demand for capacity in a limited amount of spectrum. Cambium Networks ePMP™ Force 4616 Subscriber Modules (SM) meet this demand offering high performance and low latency across both point-to-multipoint (PMP) and point-to-point (PTP) deployments.
Features:
- Offers high capacity and latencies of less than 5 ms when using ePTP technology
- Interoperable with ePMP 4600 Series Access Points (AP)
- Provides 1 Gbps capacity in PTP applications, meeting the requirements of enterprise, industrial, government, and service provider users
- Managed by Cambium Networks cnMaestro™ Network Management System for easy provisioning, monitoring, and upgrades
- Network planning with LINKPlanner and cnHeat
- Cambium Networks’ 3-year hardware warranty and support

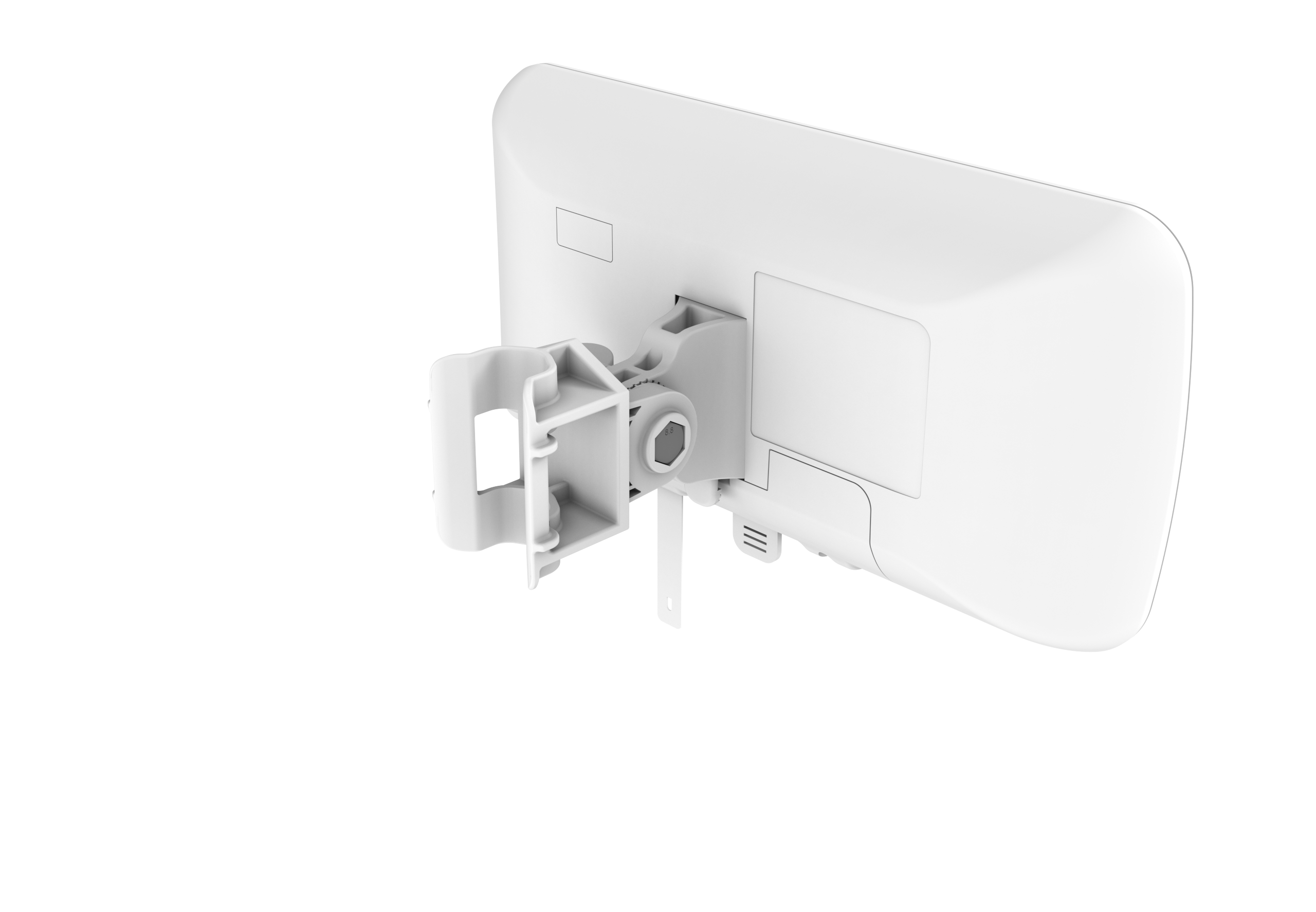

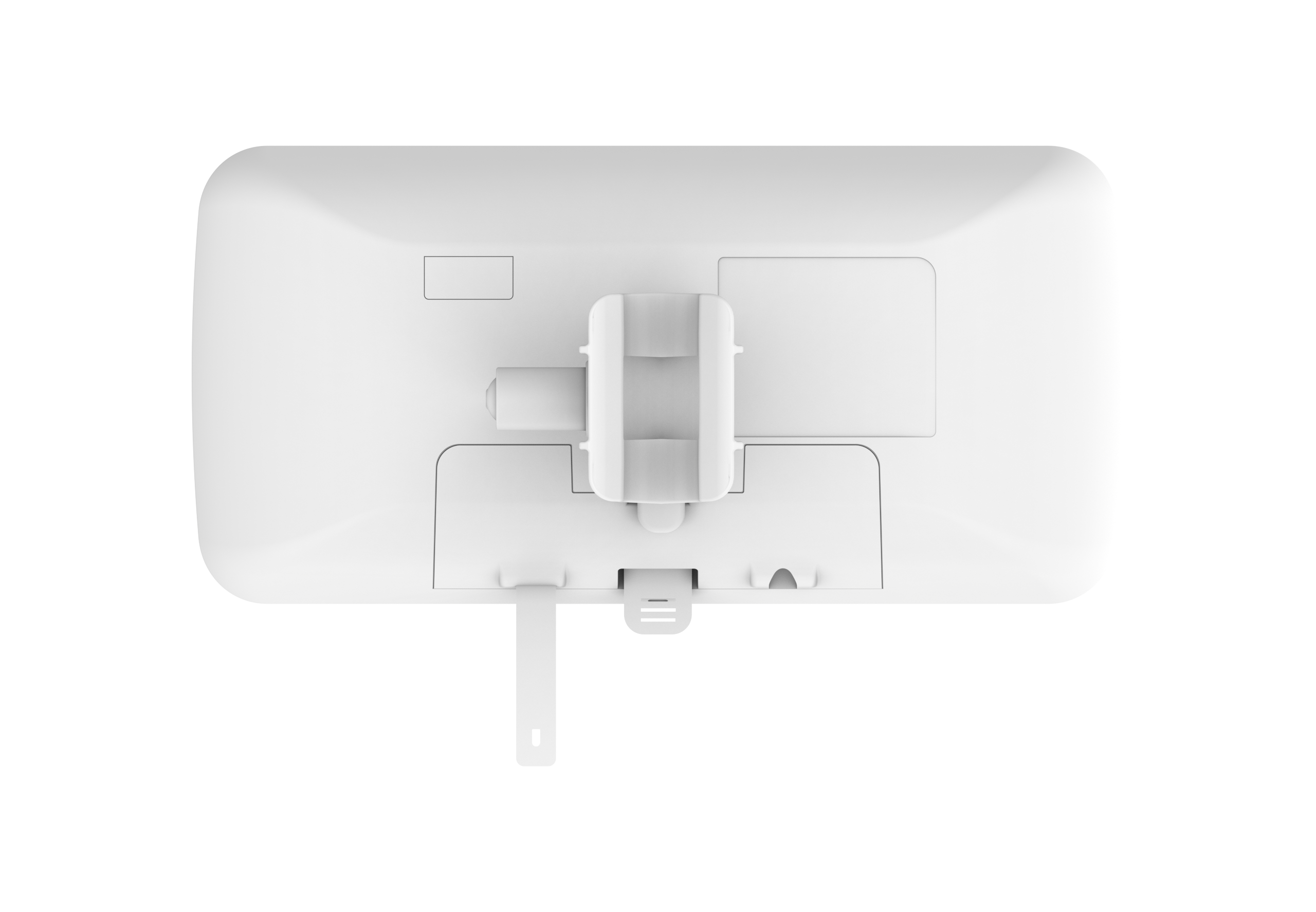

- Includes a power over Ethernet (PoE) injector and pole mount hardware
- The Force 4616 SM is offered with a 16 dBi integrated dish antenna.
ePMP 4616 SM Quick Look:
- High-performance subscriber modules for PTP and PMP fixed wireless broadband applications
- 1 Gbps capacity leveraging 160 MHz channels
- Interoperates in PMP applications with ePMP 4600 APs
- 3-year hardware warranty
Specifications
Specifications C068940C132A
| Spectrum | |
| Channel Width MHz | 20 | 40 | 80 | 160 MHz |
| Proprietary Physical Layer | ePMP air interface with 2x2 MIMO/OFDMA |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Force 4616: 5925–7125 MHz* |
| MAC Layer (Media Access Control) | Cambium proprietary |

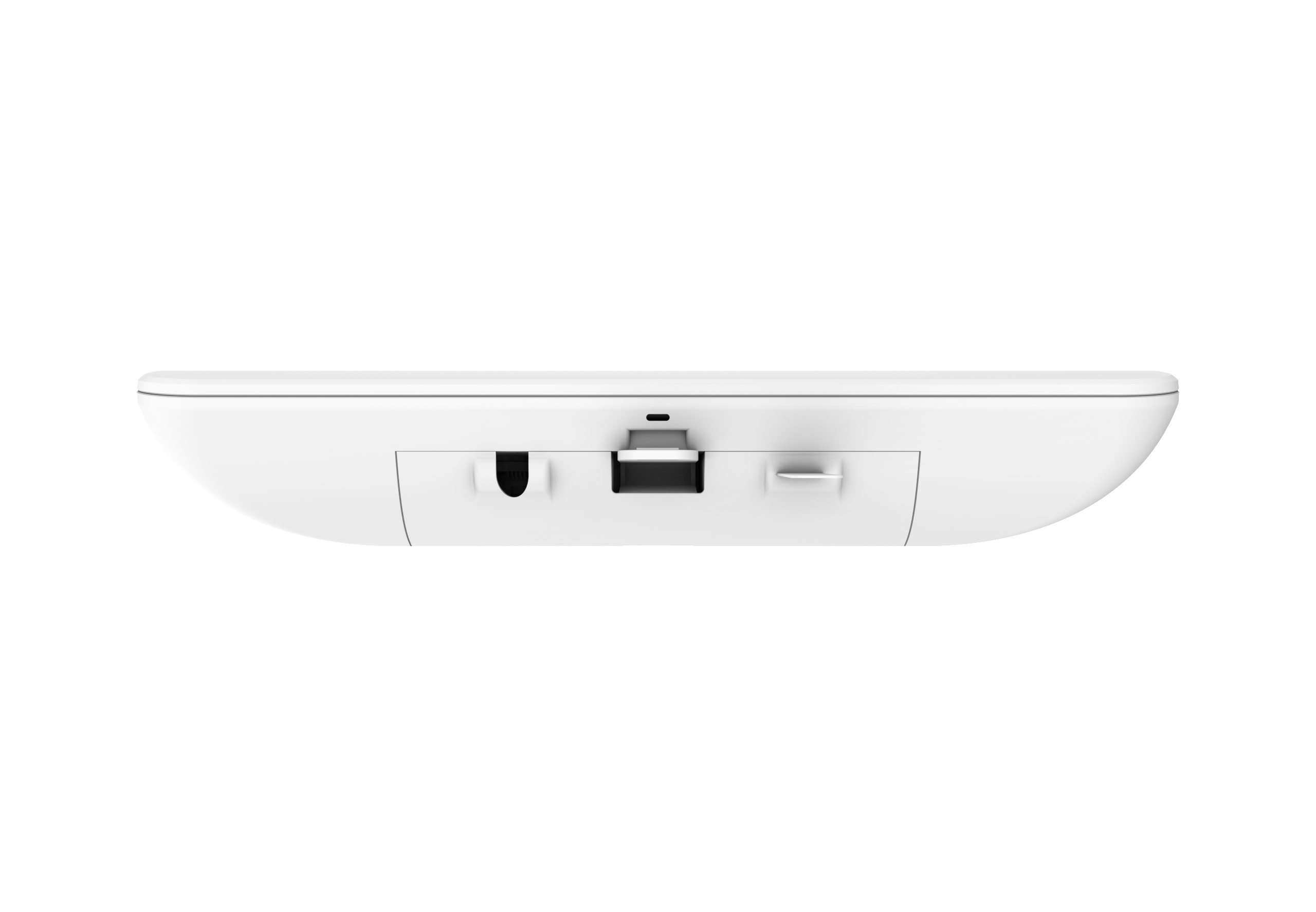

| Ethernet Interface | 100/1000 BaseT, rate auto negotiated |
| Protocols Used | IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP snooping |
| Network Management | HTTP/HTTPS, SNMPv1/2, SNMPv3, SSH |
| VLAN | 802.1Q with 802.1p priority |
| Performance | |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -92 dBm to MCS 11 (1024 QAM-5/6) = -61 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -89 dBm to MCS 11 (1024 QAM-5/6) = -58 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -86 dBm to MCS 11 (1024 QAM-5/6) = -55 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @160 MHz Channel | MCS 0 = -86 dBm to MCS 11 (1024 QAM-5/6) = -51 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6) |
| Geolocation | Built-in or external USB GPS receiver (optional) |
| Transmit Power Range | +3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval) |
| QoS (Quality of Service) | Three-level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC address, broadcast, multicast, and station priority |
| Physical | |
| Surge Suppression | 1 Joule Integrated |
| Environmental | IP55 |
| Temperature | -30°C to 55°C (-22°F to 131°F) |
| Weight | 0.5 kg (1 lb) |
| Dimensions | 124 x 251 x 119 mm (4.9 x 9.9 x 4.7 in) |

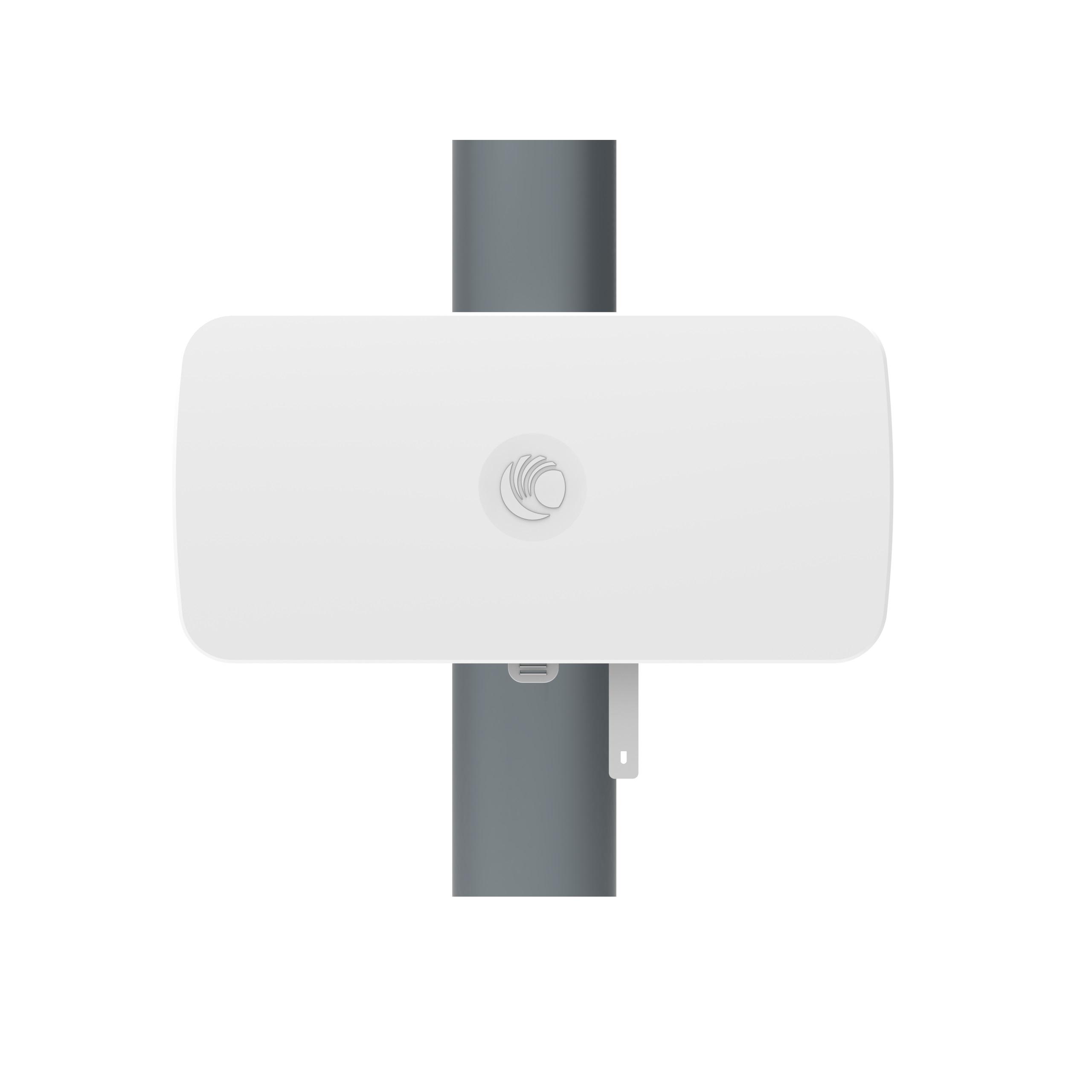

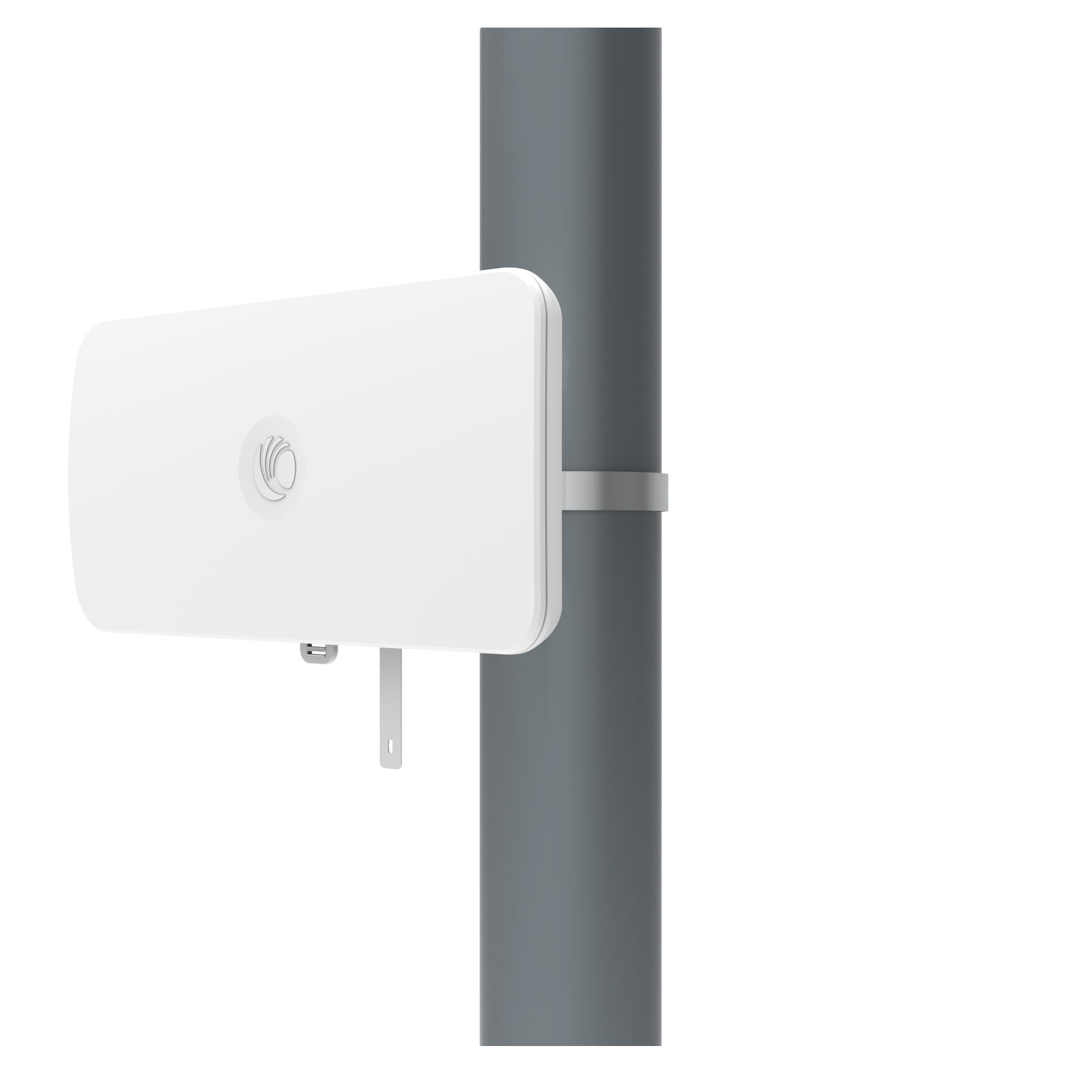

| Pole Diameter Range | Center: 2.5 to 4.1 cm (1. to 1.6 in) |
| Power Consumption | 13W (up to 15W in extreme cold temperatures when heater is activated) |
| Input Voltage | 22V–56V |
| Antenna | 16 dBi Integrated Dish |
| Security | |
| Encryption | 128-bit AES (CCMP mode), 256-bit AES optional, where allowed |
| Certifications | |
| FCCID | TBD |
| FCC Regulatory Part # | TBD |
| Industry Canada Cert | TBD |
| CE | Visit cambiumnetworks.com for declaration of conformity. |
