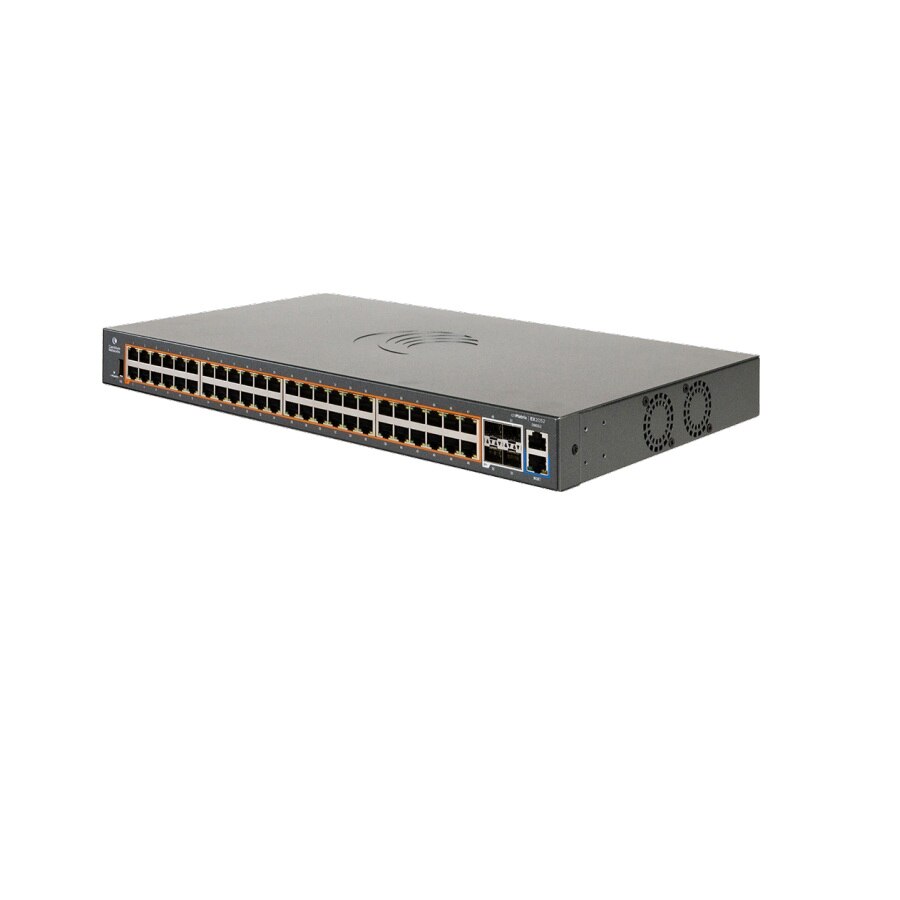

Cambium Networks cnMatrix EX2052 Switch
- SKU: MXEX2052GxxA01
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
ISP Supplies supplies the Cambium Networks cnMatrix EX2052 intelligent ethernet switch, 48 1G and 4 SFP+ (no cord). Offers a feature rich enterprise grade ethernet solution containing 176 Gbps throughput, 4 SFP+ Uplink ports, and 2 internal fans.
Quick Look:
• Zero-touch deployments
• Policy Based Automation
• Auto device profiling and segmentation
• Non-blocking, line-rate architecture with fully featured L2/L3 switching
Cambium Networks' next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
The cnMatrix platform of switches provides:
• Easy and simple, free cloud (or on premise) management with cnMaestrotm or XMS
• Zero-touch deployment of switches makes installation easy
• Policy Based Automation eliminates manual and time consuming configuration
• Enhanced Security with automated device profiling and segmentation
• Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
• Unified Wired-Wireless access solution
The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX2000 series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports. These switches come with a 5-Year Limited Lifetime Warranty.
Specifications
Specifications MXEX2052GxxA01
Throughput | 176 Gbps |
Forwarding Rate in Mpps (64 Byte Packets) | 120 |
10/100/1000 Ports | 48 |
2.5 G Ports | n/a |
Uplink Ports | 4 SFP+ |
PoE+ Enabled Ports (802.3af/at) | n/a |
Serial Console | Yes |
USB | Yes |
Out-of-Band Management Port | Yes |
Rack Mount Kit | Yes |
Internal Fans | Yes |
Reset Button | Yes |
MAC Address Table Size | 16K |
Flash Storage | 128 MB |
DRAM | 512 MB |
VLANs | 4K |
Port Based VLANs | 4K |
LACP/Trunking | 8 LAGs/8 links per LAG |
QoS Priority Queues | 8 |
PVRST | 32 |
Ingress/Egress ACL | 128 |
Static ARP Entries | 512 |
ARP Entries | 512 |
Static Routes | 64 |
Dynamic Routing | 512 |
IGMP Multicast Groups | 256 |
Policy Based Automation | Yes |
Hardware Spec | |
Power Supply | 100-240 VAC |
Max Switch Power (WITH TRAFFIC) | 38.88 W |
MTBF (Hours) | 393,648 |
Weight | 3.6 kg (7.93 lb) |
Dimensions | 44 x 4.4 x 25 cm (17.3 x 1.75 x 9.85 in) |
CPU Speed | 800 MHz |
LEDs Per Port | Link/Activity, PoE |
PoE+ Power Budget | n/a |
PoE + Voltage | n/a |
