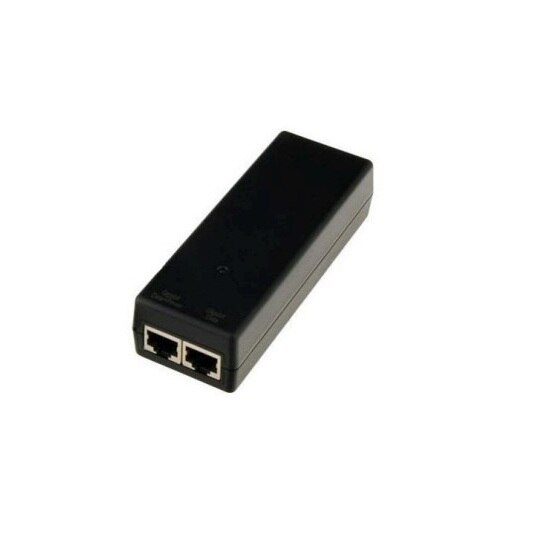

Cambium Networks 30.5W 56V 1GbE DC PoE Injector
- SKU: N000000L034B
$42.42
+ $1.52 Tariff
- Manufacturer: Cambium Networks
- Cambium Networks 30.5W 56V 5GbE DC PoE Injector Datasheet: Download
Product Information
Cambium Networks radios utilize PoE (Power over Ethernet) for delivering power and data. This PoE power supply has an AC input and a Data Input which then drives a 56V power plus data (PoE) output to the radio.
Product Features- Meets stringent Level VI efficiency requirements
- Carries regulatory compliance for deployment in most locations around the world
- Designed to be compact and easy to deply while delivering reliability and high performance
- Output Voltage: 56VDC (±5%)
- Output Power: 30W
- Ethernet: 5 Gigabit
Specifications
| Output Voltage | 56VDC (±5%) |
| Output Power | 30W |
| Ethernet | 5 Gigabit |
| AC Power Input Connection | 3-wire AC inlet; IEC-60320 Type C6 |
| AC Voltage Input | 90VAC to 300VAC |
| AC Frequency Range | 47Hz to 63Hz |
| Efficiency | Energy Level 6 |
| ESD Surge Protection | 6kV / 8kV contact/air (per EN61000-4-2) |
| Lightning Surge (Data/PoE) | 4kV common, 2kV differentia (per EN61000-4-5) |
| Hold-up Time | 10ms at max load |
| Operating Temp | 0°C to +50°C |
| Non-Operating Temp | −40°C to +70°C |
| Operating humidity | 5% to 95% non-condensing |
| Non-Operating Humidity | 0% to 95% non-condensing |
| Operating Altitude | 2,000 meters |
| Dimensions L x W x H | 140mm x 53mm x 35mm (5.51in x 2.08in x 1.38in) |
| Case Color | Black |
| LEDs | Blue (DC Out) |
