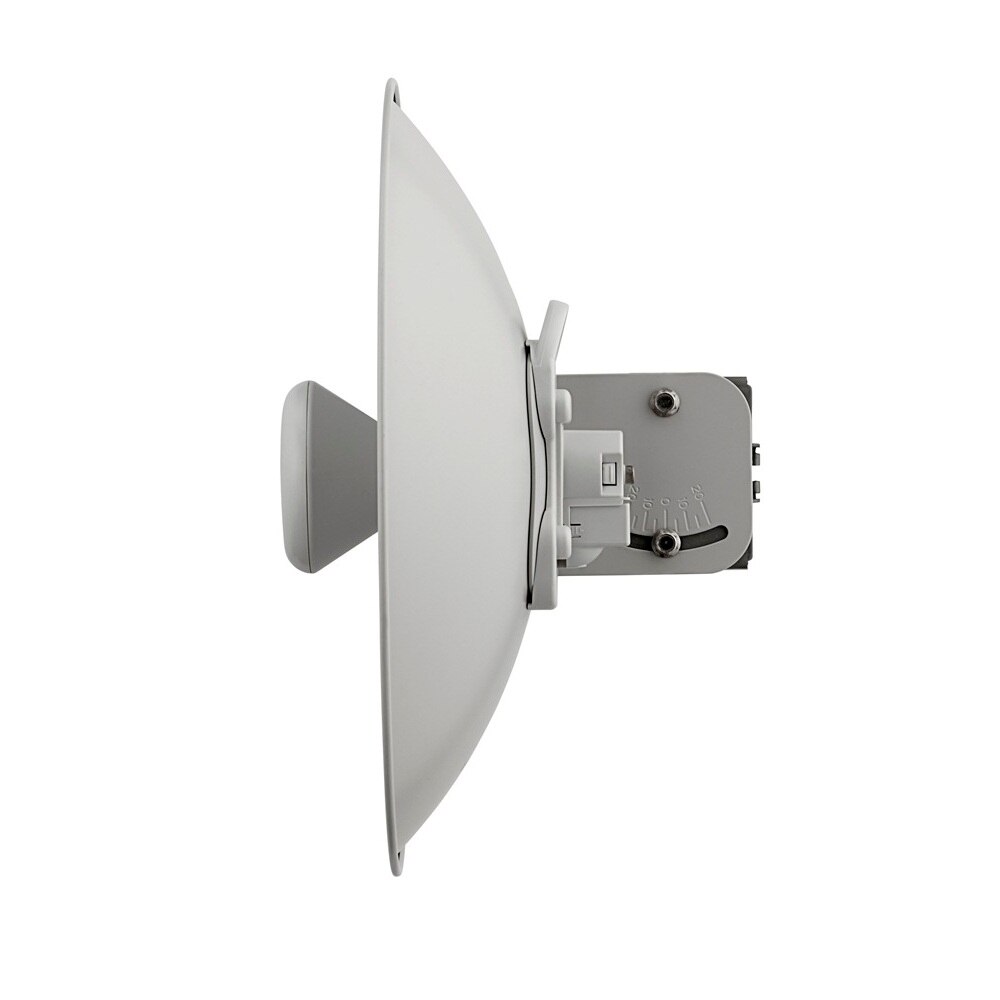

Cambium Networks ePMP Force 200 Radome
- SKU: N000900L021A
$29.01
+ $4.78 Tariff
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
The radome for ePMP Force 200 radios is an optional accessory that works with Cambium Networks' ePMP Force 200 radios, designed to operate in high interference environments and provide superior throughupt of over 200Mbps of real user data.
The radome provides additional protection to the dish antenna against rain, snow, ice, wind, and debris.
Specifications
Specifications N000900L021A
| INTERFACE | |
| MAC (Media Access Control) Layer | Cambium Proprietary |
| Physical Layer | 2x2 MIMO/OFDM |
| Ethernet Interfaced | 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used | IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| Network Management | HTTPs, SNMPv2c, SSH |
| VLAN | 802.1Q with 802.1p priority |
| PERFORMANCE | |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @200MHz Channel | MCS0 = -92 dBm to MCS15 = -68 dBm (per branch) |
| Nominal Receive Sensitivity (w/FEC) @40MHz Channel | MCS0 = -89 dBm to MCS15 = -65 dBm (per branch) |
| Modulation Levels (Adaptive) | MCS0 (BPSK) to MCS15 (64QAM 5/6) |
| Quality of Service | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority |
| Transmit Power Range | -15 to +30 dBm (combined, to regional EIRP limit) (1 dB interval) |
| PHYSICAL | |
| Surge Suppression | 1 Joule Integrated |
| Environmental | IP55 |
| Temperature | -30°C to +60°C (-22°F to +140°F) – with radome attached maximum temperature is +47°C (+116°F) |
| Weight | 2.4 GHz Model: 2.8 kg (6.2 lbs) 5 GHz Model: 2.3 kg (5.1 lbs) |
| Wind Survival | 145 km/hour (90 mi/hour) |
| Dimensions (Dia x Depth) | 47 cm x 28 cm (18.5 in x 11.2 in) |
| Pole Diameter Range | 6.4 cm - 7.6 cm (2.5 in - 3 in) |
| Power Consumption | 10 W Maximum, 5 W Typical |
| Input Voltage | 10 to 30 V |
| Encryption | 128-bit AES (CCMP mode) |
