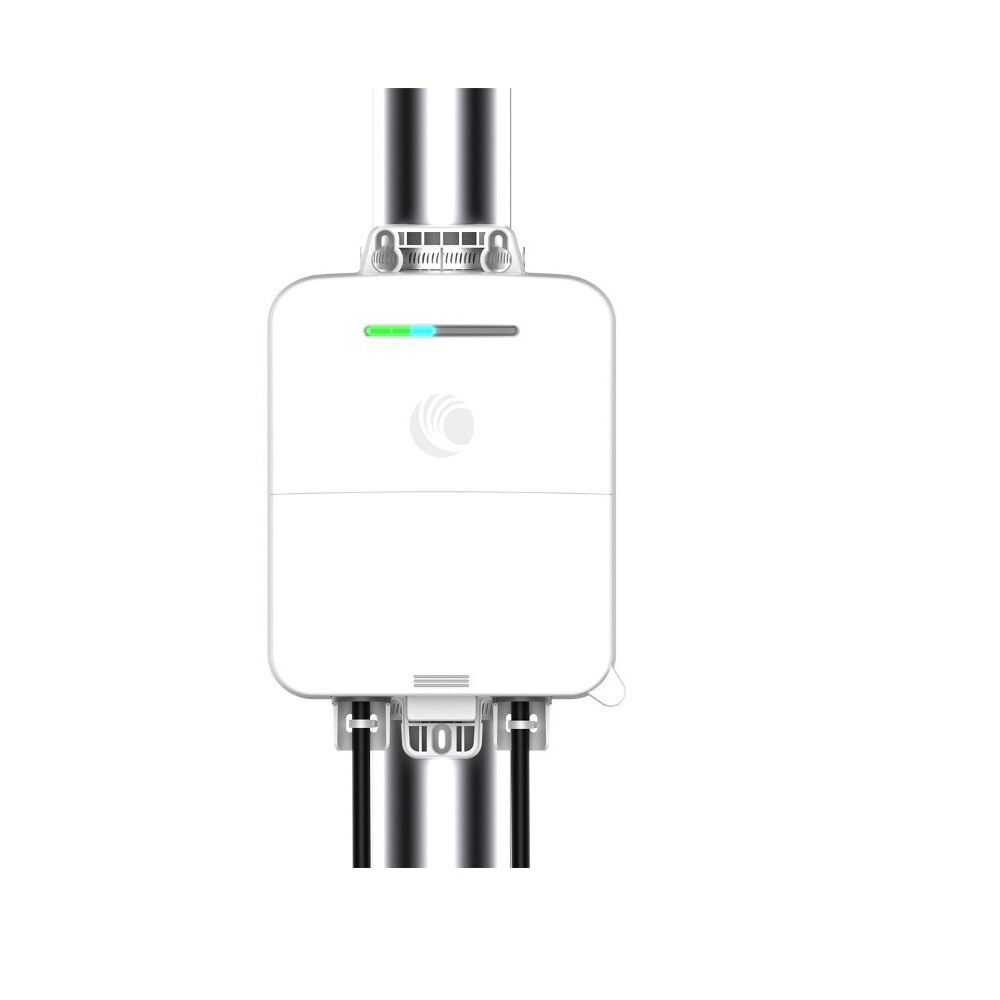

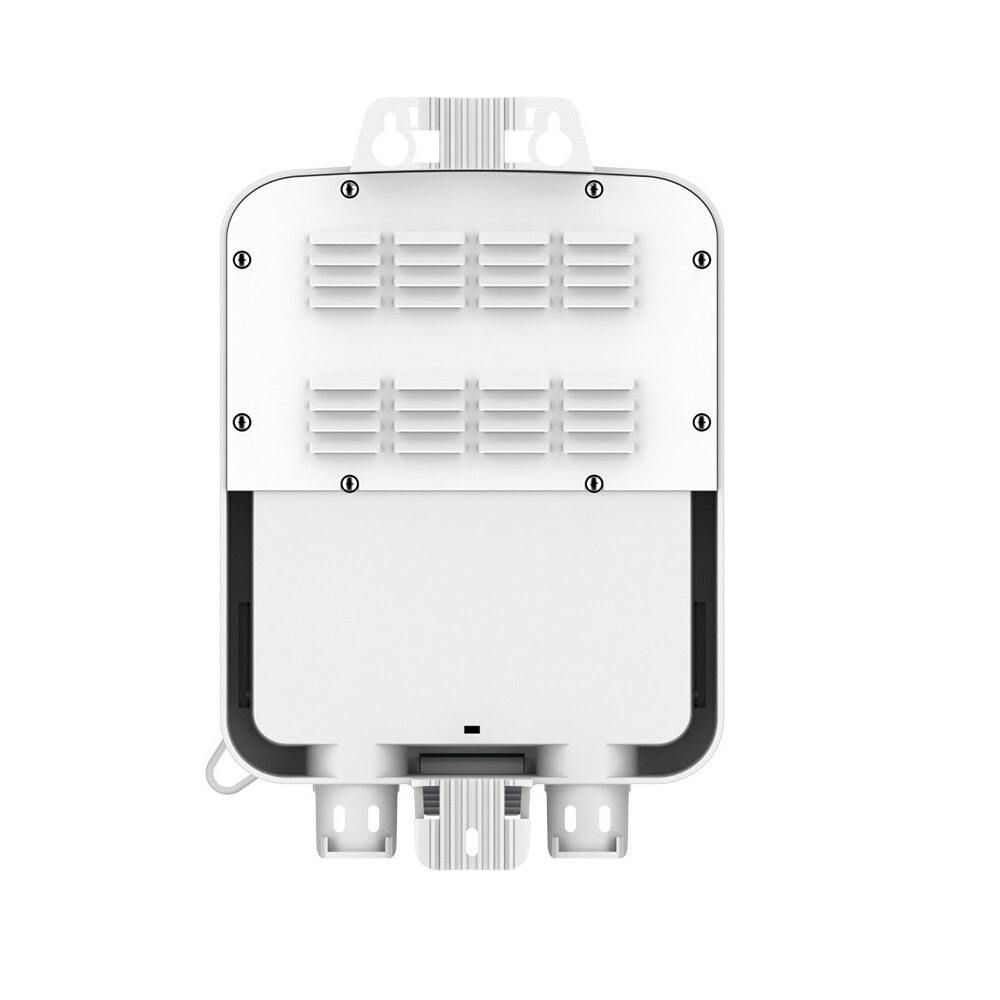

Cambium Networks Fiber Gigabit SGT00 Outdoor GPON ONT
- SKU: SGT00-0A01
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
FTTx Re-imagined: Simple, Reliable, Efficient
Deliver reliable symmetric gigabit speed connectivity with indoor and outdoor fiber Optic Network Terminals (ONT). Designed for service providers to connect business and residential subscribers with a focus on providing exceptional performance and a low Total Cost of Ownership (TCO), these ONTs feature a robust design that can withstand harsh environmental conditions. With multiple PON technologies, including GPON and XGS-PON, and gigabit or multi-gigabit speed options, the ONT makes network expansion easy.
Features and Benefits
- Simplified zero-touch deployments
- GPON or XGS-PON options
- Indoor ONT or outdoor PoE-powered ONT
- Robust hardware with quality support
With simplified zero-touch configurations and a user-friendly unified management system, your team can focus on growth instead of managing multiple complex systems.
Product Includes
- 1x Cambium SGT00-0A01 Outdoor ONT
- 1x 12V DC 1A Power Supply
Specifications
Specifications
| PON GPON | 2.488 / 1.244 Gbps |
| Wavelength | D: 1490 nm, U: 1310 nm |
| TX Power | Class B+ (0.5–5 dBm) |
| RX Sensitivity | -28 to -8 dBm |
| LAN | LAN 10/100/1000 Base-T Ethernet |
| Dimensions | 8.8 x 12 x 3.14 in (224 x 305 x 80mm) |
| Environment | IP55 Outdoor -22° to 140ºF (-30° to 60ºC) 10% to 95% non-condensing |
| Power | 30V DC 0.5A Cambium PoE included Standard polarity PoE supported |
