LightSaber Optics LSO-12UOD-600450-2BAT-PM
- SKU: LSO-12UOD-600450-2BAT-PM-V2
$656.43 $1,095.04
- Manufacturer: LightSaber Optics
- Data Sheet: Download
Product Information

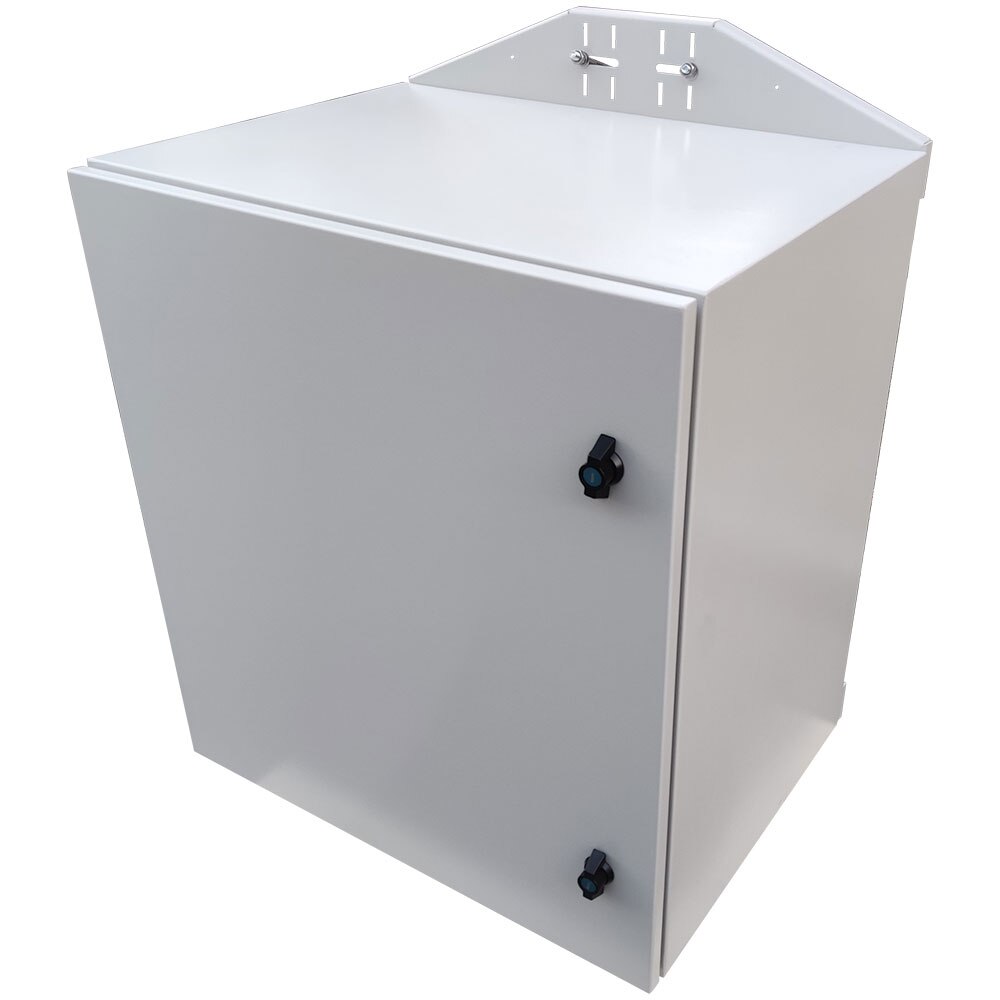

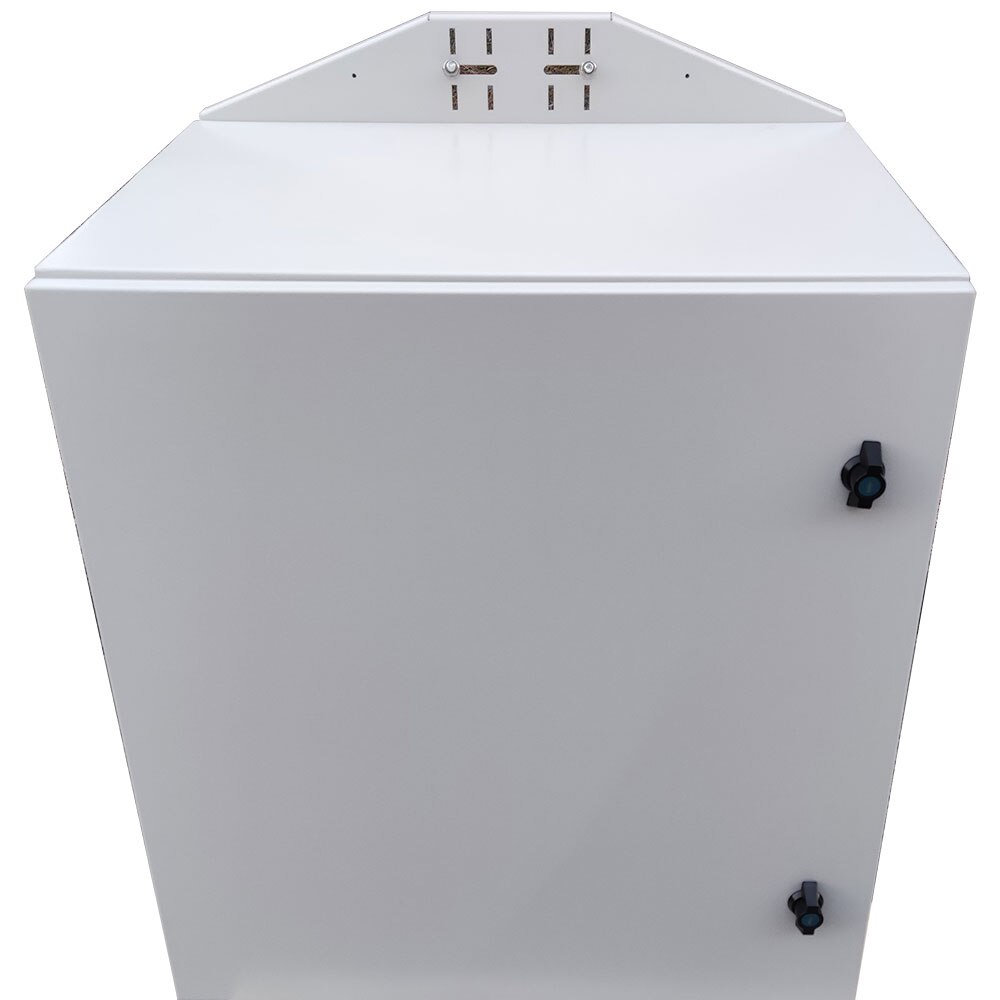

25.9"x24"x18" Outdoor Pole Mount Battery Cabinet | Grey
Specifications
Specifications LSO-12UOD-600450-2BAT-PM
| Physical | |
| Rack Unit Size | 2U |
| Battery Space Size | 10U (20.39inch, can hold of 4 Battery or 8 battery) |

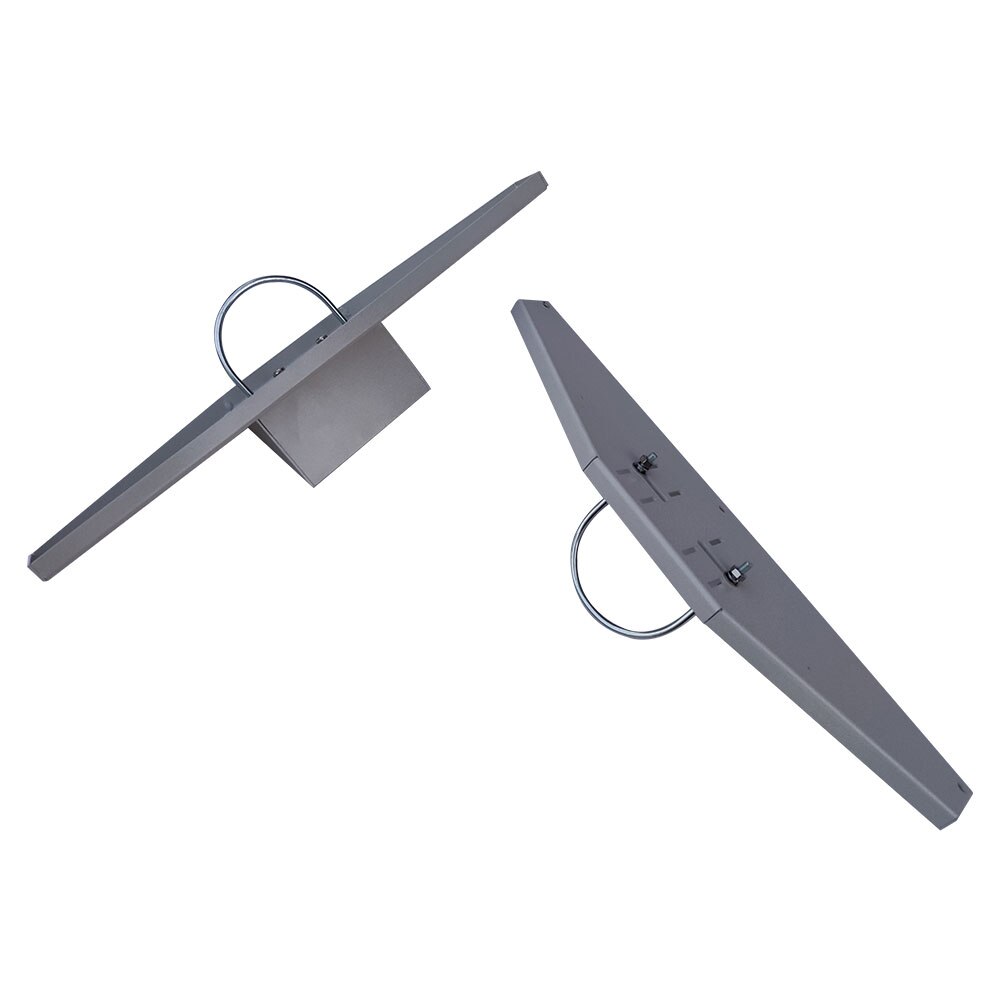

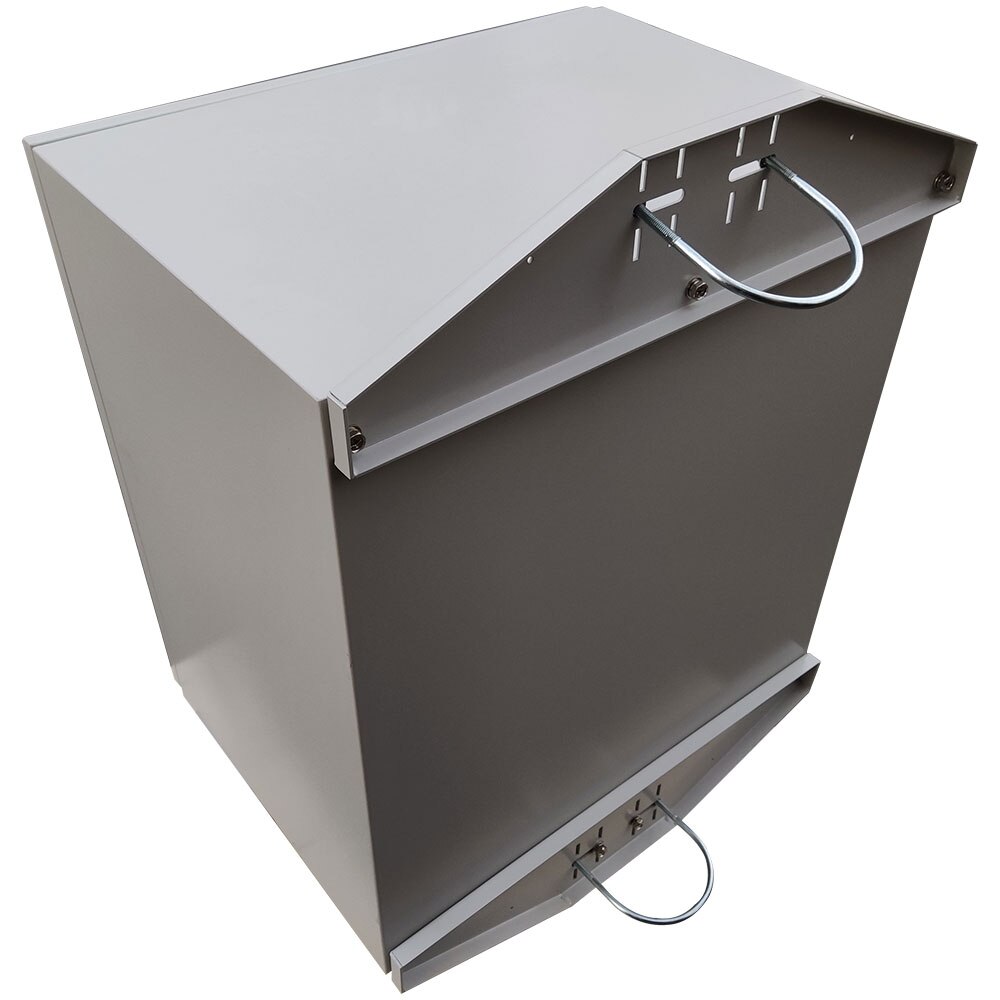

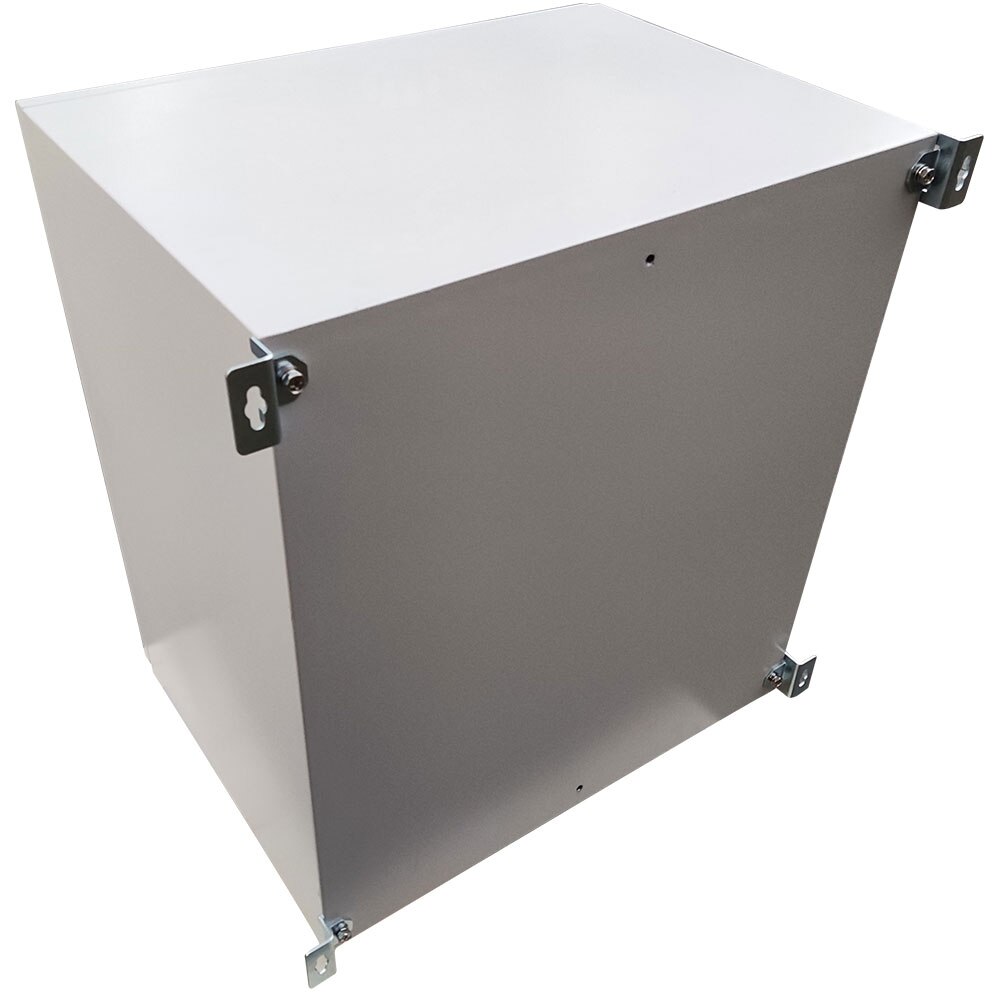

| Cabinet Type | Pole-Mount with U Bolt (or hose clamps) or Wall-Mount |
| Color | Grey RAL7035 |
| Material | Cold-rolled Steel |
| Unit Dimension(WxDxH) | 23.62 x 17.7 x 25.9 inches (without lock and mounting bracket) |
| Unit Weight(lbs.) | 80 lbs |
| Internal Depth (Front Rail to Back Door) | 14.57 inches |
| Rail to Rail Depth | N/A |
| Shipping Dimension(WxDxH) | 25.59 x 20.09 x 28.15 inches |
| Shipping Weight(lbs.) | 84.85 |
| Electrical | |
| Cooling | AC110V Cooling Fan x 1 (with tem. Controller) |
| Grounding | Earthing Copper Bar,Grounding Wire |
| Other | N/A |
| Certifications | |
| Safety | CE |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS |
| Warranty | |
| Product Warranty | 1 Year |
