MikroTik Cloud Core Router CCR1016-12G
- SKU: CCR1016-12G
$941.57 $970.69
Product Information

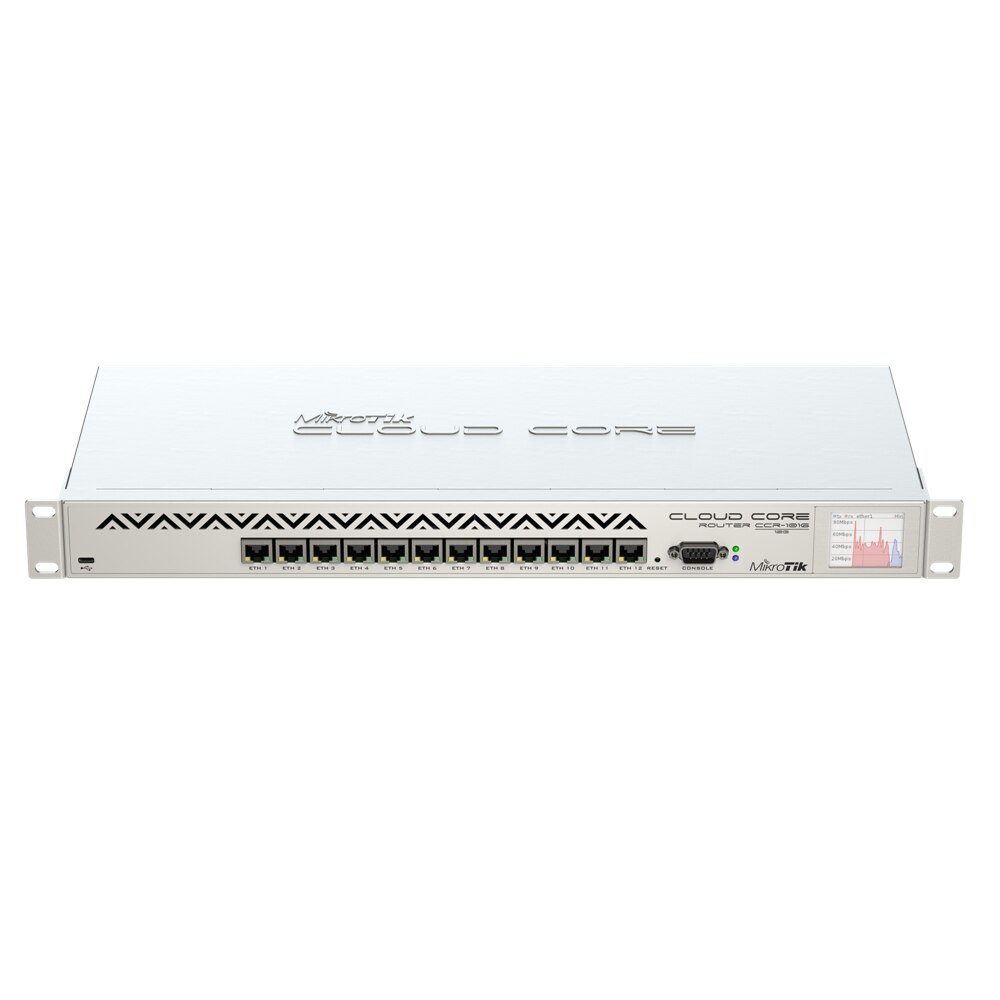

ISP Supplies supplies the MikroTik CCR1016-12G industrial grade cloud core router with cutting edge 16 core CPU. The unit is equipped with 12 Gigabit Ethernet ports and a color touchscreen LCD.
Product Features:
• 16 core networking CPU
• 1.2 GHz clock per core
• 12 Mbytes total on-chip cache
• State of the art TILE GX architecture
• Ports directly connected to CPU
• 1U rackmount case
• 12 Gigabit Ethernet ports
• Color touchscreen LCD display
• Up to 17.8 mpps throughput in fastpath mode (wire speed)
• Up to 12 Gbps throughput with RouterOS queue/firewall configuration
Specifications
Specifications CCR1016-12G
| CPU Speed | 1.2GHz |
| LAN Ports | 12 |
| Memory | (2) SODIMM DDR slots, 2x1GB installed |
| Gigabit | Yes |
| MiniPCI | 0 |
| USB | Yes |
| PoE | No |
| Operating System | RouterOS v6 |
| RouterOS License | Level 6 |
| Board Dimensions | 355 x 145 x 55mm (14" x 5.7" x 2.2") |
| Max. Ambient Temperature | 50° at 1.2GHz - 70° at 1GHz CPU core frequency |
| Max. Power Consumption | 38W |
