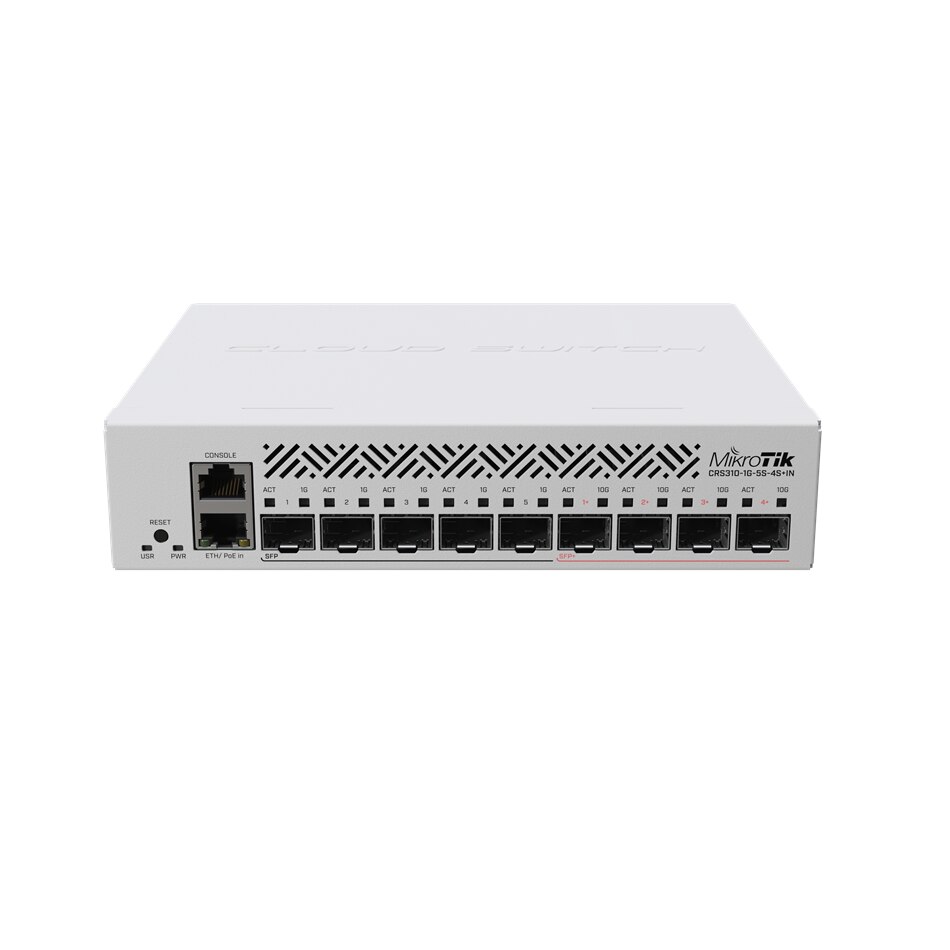

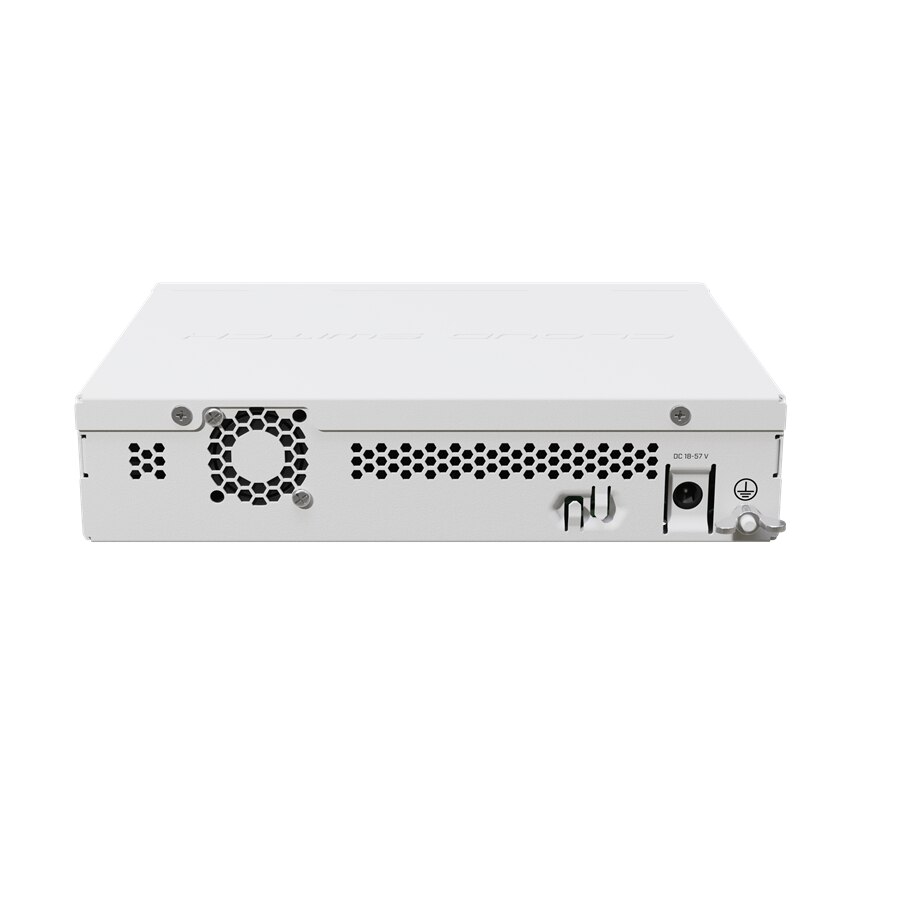

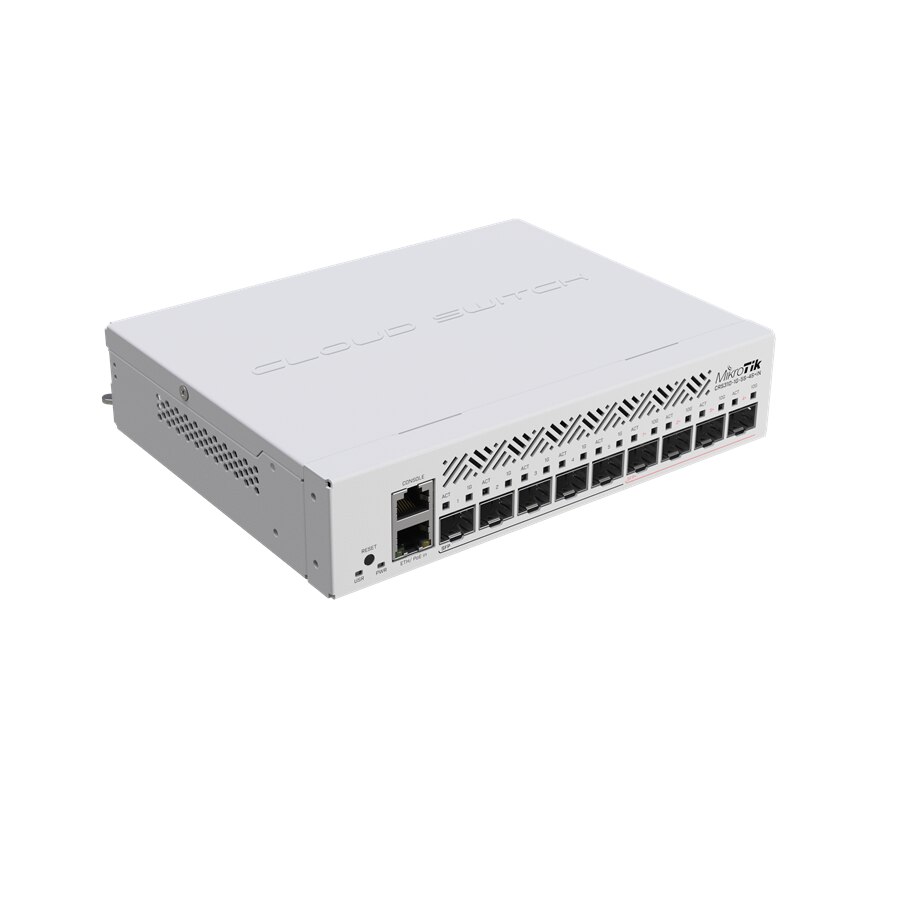

MikroTik CRS310 Fiber Switch (4 SFP+ Ports)
- SKU: CRS310-1G-5S-4S+IN
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
The MikroTik CRS310 Fiber Switch (4 SFP+ Ports) is an indoor version of the renowned netFiber 9 switch, delivering reliable 10 Gigabit fiber connections spanning over 100 meters. With five 1G SFP ports, four 10G SFP+ ports, and an additional Gigabit Ethernet port, it's an excellent upgrade for existing CRS212 setups. Equipped with a modern ARM v7 CPU, 256 MB of RAM, and improved cooling supported by high-performance Marvell switch-chips, this switch ensures optimal performance.
The Gigabit Ethernet port directly connects to the switch chip, enabling full gigabit speed, and it supports PoE-in for added powering options in challenging locations. Mounting this device in a standard 1U rack harnesses its powerful capabilities, including hardware offloaded VLAN-filtering and some Layer-3 routing. The MikroTik CRS310 Fiber Switch (4 SFP+ Ports) is a valuable tool for indoor connections over 100 meters, providing minimal data loss and ping while offering a secure alternative to copper against electromagnetic interference, tampering, or eavesdropping.
Product Applications- Small to Medium Internet Service Providers (ISPs)
- Ideal for indoor connections over 100 meters with minimal data loss and ping
- Equipped with a modern ARM v7 CPU, 256 MB of RAM, and improved cooling
- New Marvell switch-chips offer exceptional performance
- Compact and lightweight design
- Dependable 10G fiber connections up to 100 meters
- PoE-in
- Five SFP ports
- Four SFP+ ports
- One Gigabit Ethernet port
- 256MB RAM
- ARM v7 CPU
- -40°C to +70°C Operating Temperature
- 200 x 166 x 45 mm
- MikroTik CRS310 Fiber Switch (4 SFP+ Ports)
- 24 V 1.2 A Power Adapter
- Rack Ears
- Fastening Set
Specifications
Specifications CRS310-1G-5S-4S+IN
| CPU | 98DX226S 800 MHz |
| CPU architecture | ARM 32bit |
| CPU core count | 1 |
| Size of RAM | 256 MB |
| RAM type | DDR3 |
| Storage | 16 MB, Flash |
| Number of 1G Ethernet ports | 1 |
| Number of 1G SFP ports | 5 |
| Number of 10G SFP+ ports | 4 |
| Switch chip model | 98DX226S |
| Dimensions | 200 x 166 x 45 mm 7.87" x 6.53" x 1.77" |
| Operating system | RouterOS, License level 5 |
| Operating temparature | -40°C to +70°C |
| Powering | |
| Number of DC inputs | 2 (PoE-in, DC jack) |
| PoE-in input Voltage | 18-57 V |
| DC jack input Voltage | 18-57 V |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.2 A |
| Max power consumption without attachments | 8 W |
| Max power consumption | 20 W |
