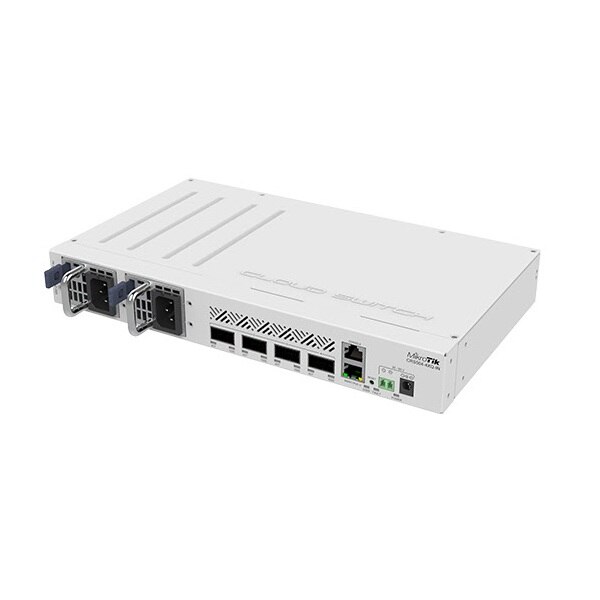

MikroTik Cloud Router Switch 4x 100GB QSFP28 Ports
- SKU: CRS504-4XQ-IN
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
The MikroTik Cloud Router Switch 504-4XQ-IN, your most affordable, compact, energy-efficient doorway to the world of 100 Gigabit networking. This switch is the next step in upgrading existing 10 or 25 Gigabit networks. Multiple powering options, dual hot-swap power supplies.
There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. Obviously, there is an Ethernet port for management purposes as well.
With multiple powering options and the ability to be mounted on the wall, this is the perfect switch for any system administrator.
Product Features
- 4x 100G QSFP28 ports
- 16x 25GB Marvell Prestera Switch Chip
- Compatible with 40G, 25G, 10G, and 1G Fiber Connections
- PoE-In, DC Jack, 2-Pin Terminal
- Uses 25W of Power
- Dual Hot-Swap Power Supplies
Specifications
Specifications CRS504-4XQ-IN
| CPU | QCA9531 650 MHz |
| CPU architecture | MIPSBE |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| Storage | 16 MB, Flash |
| Number of 100Mbit Ethernet ports | 1 |
| Number of 100G QSFP28 ports | 4 |
| Switch chip model | 98DX4310 |
| Dimensions | 320 x 185 x 44 mm 12.59 x 7.28 x 1.73 inch |
| Operating system | RouterOS v7, License level 5 |
| Operating temparature | -40°C to +70°C |
| Number of DC inputs | 3 (PoE-in, DC jack, 2-pin terminal) |
| PoE-in input Voltage | 43-57 V |
| DC jack input Voltage | 36-57 V |
| 2-pin terminal input Voltage | 36-57 V |
| Max power consumption without attachments | 25 W |
| Max power consumption | 41 W |
