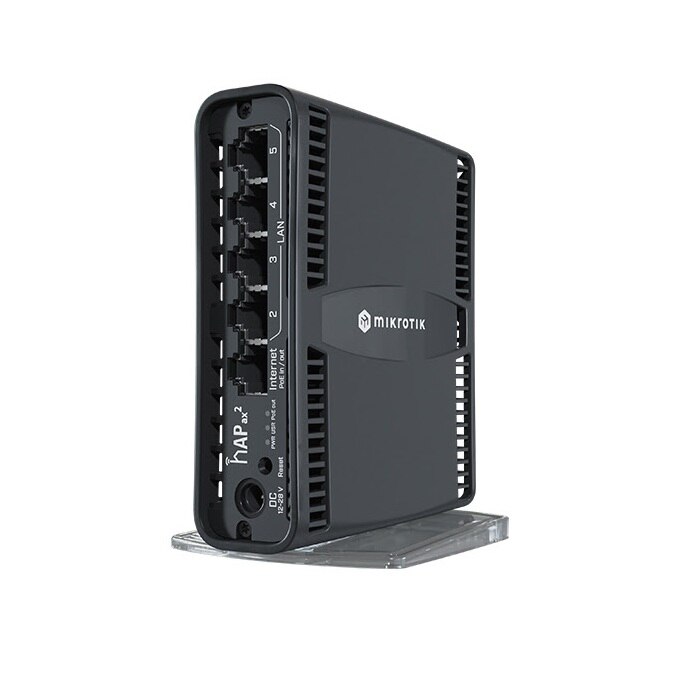

MikroTik hAP ax2 WiFi6 Home Access Point International Version
- SKU: C52iG-5HaxD2HaxD-TC
$133.86 $138.00
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
hAP ax² with Quad-Core IPQ-6010 864 MHz CPU, 1GB RAM, 5 x Gbit LAN (1 Gbit LAN with PoE OUT), built-in 2.4GHz 802.11ax Dual Chain wireless with integrated antenna, built-in 5GHz 802.11ax Dual Chain wireless with integrated antenna, RouterOS L4, desktop/tower case, PSU
Specifications
Specifications
| CPU | Quad-Core IPQ-6010 864 MHz |
| CPU architecture | ARM 64bit |
| Size of RAM | 1 GB |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 5 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Switch chip model | IPQ-6010 |
| Wireless interface model | QCN-5052 |
| Wireless | 2.4 GHz 802.11ax dual-chain, 5 GHz 802.11 802.11ax dual-chain |
| Wireless antenna max gain | 2.4 GHz (4.5 dBi), 5 GHz (4 dBi) |
| Dimensions | 120 x 101 x 37 mm (4.72" x 3.97" x 1.45") |
| Operating system | RouterOS, License level 4 |
| Operating temperature | -40°C to +50°C |
| Powering | |
| Number of DC inputs | 2 (PoE-in, DC jack) |
| PoE-in input Voltage | 18-28 V |
| DC jack input Voltage | 12-28 V |
| PoE-out | Passive PoE Ether1, max out per port output (input < 30 V): 600mA |
| Max total out | 0.6 A |
| Total output power | 16.8 W |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.2 A |
| Max power consumption (without attachments) | 12 W |
| Max power consumption | 27 W |
| Wireless specifications | ||
| Rate (2.4 GHz) | Tx (dBm) | Rx (dBm) |
| 1MBit/s | 22 | -100 |
| 11MBit/s | 22 | -94 |
| 6MBit/s | 24 | -96 |
| 54MBit/s | 22 | -80 |
| MCS0 | 24 | -96 |
| MCS7 | 21 | -75 |
| MCS9 | 19 | -70 |
| MCS11 | 17 | -67 |
| Rate (5 GHz) | Tx (dBm) | Rx (dBm) |
| 6MBit/s | 23 | -96 |
| 54MBit/s | 20 | -80 |
| MCS0 | 22 | -96 |
| MCS7 | 19 | -75 |
| MCS9 | 17 | -70 |
| MCS11 | 15 | -67 |
