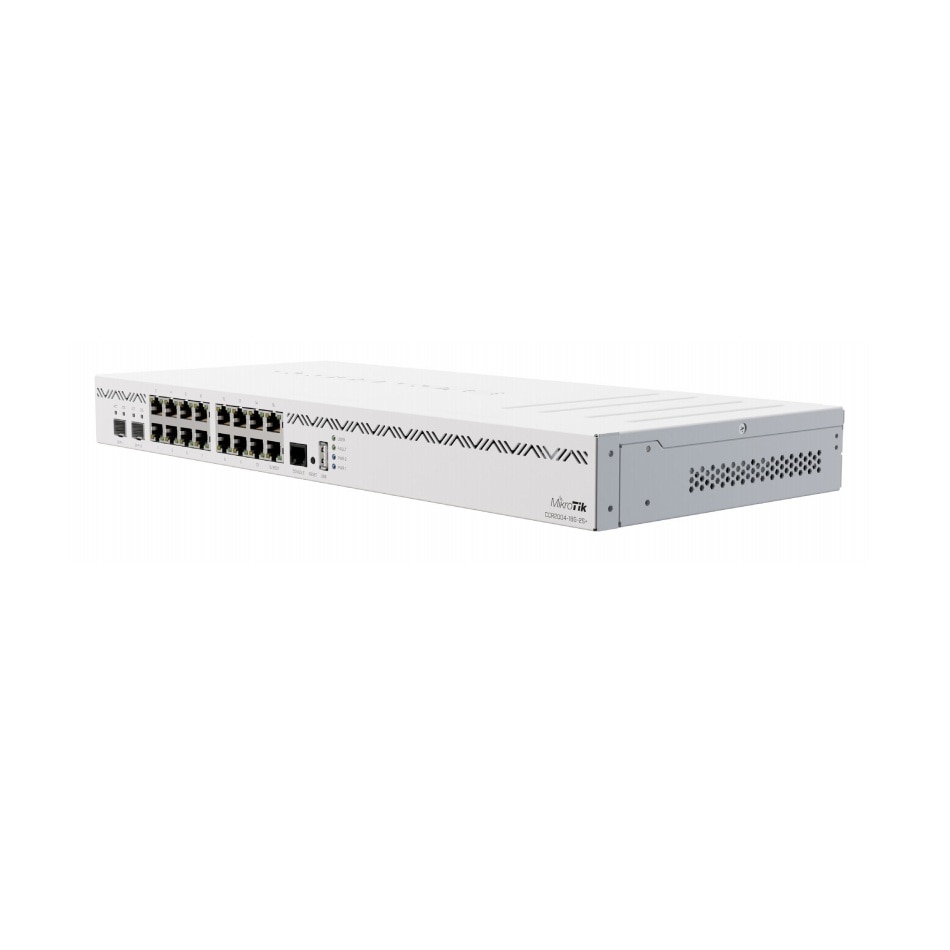

MikroTik CCR2004 Cloud Core Router (16 Gigabit Ethernet Ports)
- SKU: CCR2004-16G-2S+
Product Information
The MikroTik CCR2004 Cloud Core Router is a high-performing and cost-effective router that outperforms all previous CCR models in single-core performance. Part of the CCR2004 series, this router is powered by the Amazon Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores clocked at 1.7GHz. Notably, it boasts the best single-core performance per watt and overall performance per watt among all CCR devices, ensuring optimal efficiency.
This router features 18 wired ports, including 16 Gigabit Ethernet ports and two 10G SFP+ cages. Housed in a classic white 1U rackmount case, it comes with built-in dual redundant power supplies and active cooling for added reliability. The CCR2004 ensures seamless operations, with each group of 8 Gigabit Ethernet ports connected to a separate Marvell Amethyst family switch-chip, and each SFP+ cage equipped with a separate 10 Gbps full-duplex line. Boasting 4GB of DDR4 RAM and 128MB of NAND storage, this router eliminates bottlenecks, enabling all ports to reach wire speed under the CPU's powerful processing capabilities. The CCR2004-16G-2S+ is an excellent all-in-one solution for small and medium-sized businesses, with Gigabit Ethernet ports for internal networks and SFP+ ports for downlink and uplink connections, making networking easy and efficient.
Product Applications- Gigabit Ethernet ports for the internal network
- SFP+ ports for downlink and uplink
- Perfect all-in-one solution for small and medium-sized businesses
- The router offers a range of versatile connectivity options with its 16 Gigabit Ethernet ports and 2 10G SFP+ cages
- Has the best single-core performance per watt and best overall performance per watt among all the CCR devices
- No bottlenecks, ensuring all ports can reach wire speed as long as the CPU can handle the processing
- Active cooling to maintain optimal temperature
- Dual redundant power supplies for enhanced reliability
- Sixteen Gigabit Ethernet Ports
- Two 10G SFP+ Ports
- RJ-45 Console Port

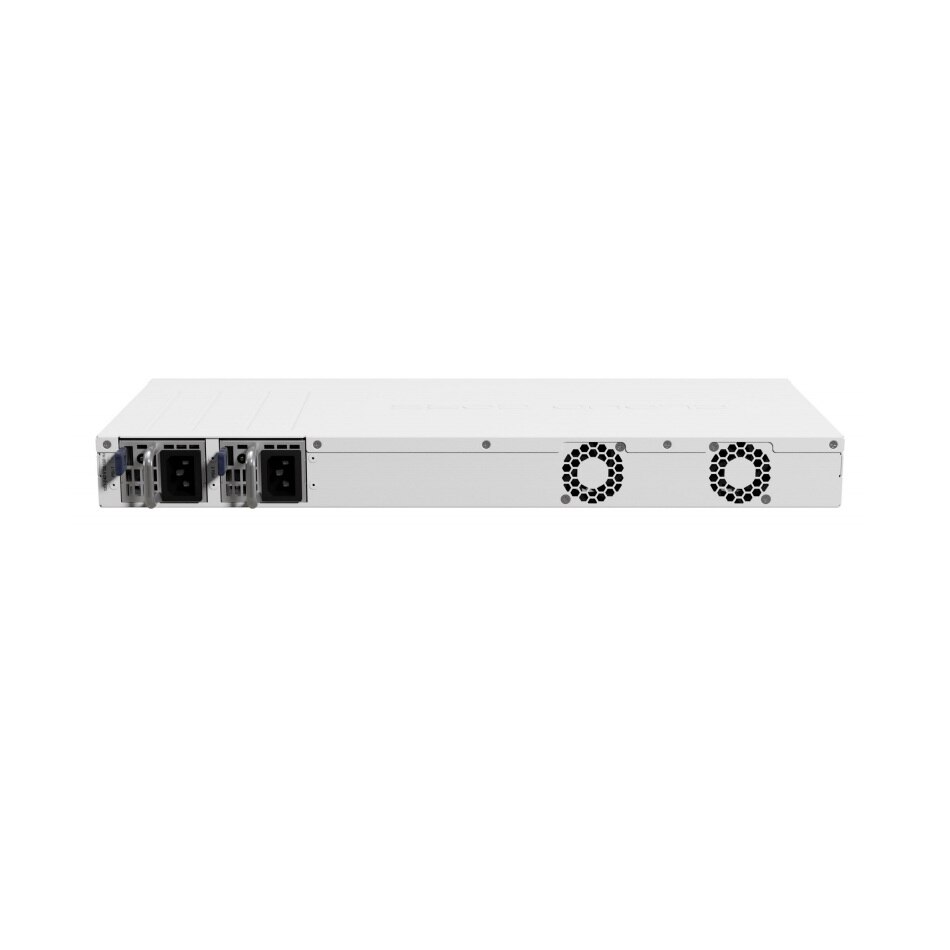

- 2 AC Inputs (Dual PSU)
- 2 Fans
- ARM 64bit AL32400 CPU
- 4GB RAM
- 443 x 210 x 44 mm
- -20°C to 60°C Operating Temperature
- MikroTik CCR2004 Cloud Core Router (16 Gigabit Ethernet Ports)
- 2 Power Cords
- Rackmount Brackets (white)
- Fastening Set
Specifications
Specifications CCR2004-16G-2S+
CPU AL32400 | 1.7 GHz |
CPU architecture ARM | 64bit |
CPU core count | 4 |
Size of RAM | 4 GB |
RAM type | DDR4 |
Storage | 128 MB, NAND |
Number of 1G Ethernet ports | 16 |
Number of 10G SFP+ ports | 2 |
USB port | 1 (3.0 type A) |
Operating system | RouterOS (License level 6) |
Switch chip model | 88E6191X, 88E619X |
Dimensions | 443 x 210 x 44 mm (17.44" x 8.26" x 1.73" in) |
Operating temperature | -20°C to +60°C |
Powering | |
Number of AC inputs | 2 |
AC input range | 100-240 V |
Max power consumption (without attachments) | 35 W |
Max power consumption | 48 W |
Certification | CE, FCC, IC |
