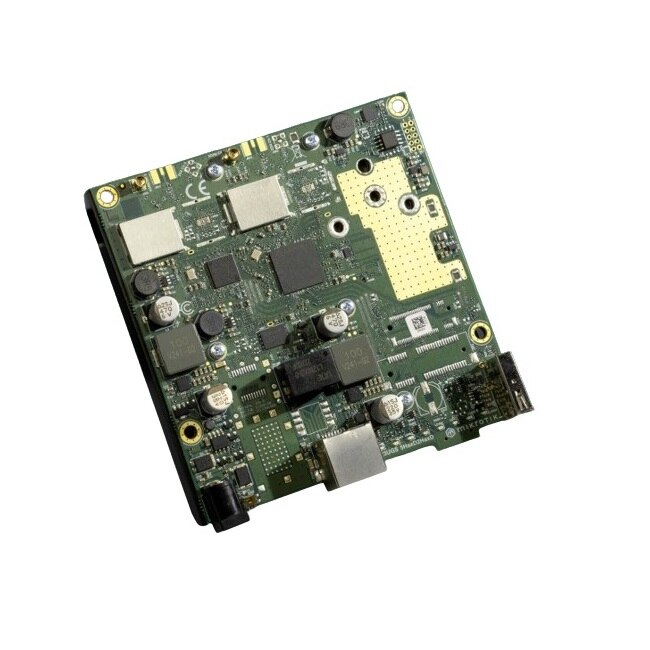

MikroTik L11UG-5HaxD 5GHz CPE RouterBoard (US)
- SKU: L11UG-5HaxD-US
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
Get ready to elevate your DIY networking projects with the refreshed MikroTik RouterBoard series featuring Wi-Fi 6 capabilities! The latest addition, the L11UG-5HaxD, is poised to be an essential component for developing cost-effective indoor and outdoor Customer Premises Equipment (CPE). This compact board leverages a modern Qualcomm Maple CPU based on the ARM architecture, equipped with 256 MB of RAM. Additionally, it includes a USB port for supplementary storage options or other peripherals, alongside a Gigabit Ethernet port with Power over Ethernet (PoE-in) functionality. Prepare for enhanced performance and versatility in your networking solutions!
The MikroTik L11UG-5HaxD can be effectively integrated into diverse applications such as vending machines, ATMs, ticket dispensers, etc. For standalone implementations, we recommend using our aluminum indoor enclosures, which are compatible with RB411, 911, 912, and 922. This design enhances versatility and promotes sustainability by allowing for reuse across different projects. As a noteworthy feature, we have retained the traditional beeper functionality for alarms and creative output purposes.
Product Features
- Modern Dual-Core ARM CPU
- PoE-In DC Jack
- Gigabit Ethernet
- 5GHz Wireless
- USB Port
Specifications
Specifications
| CPU | Dual-Core IPQ-5010 800 MHz |
| CPU architecture | ARM |
| Size of RAM | 256 MB |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 1 |
| USB port | 1 USB 2.0 port type A |
| Wireless band | 5 GHz |
| Wireless interface model | QCN-6102 |
| Wireless | 802.11a/n/ac/ax dual chain |
| Dimensions | 107 x 114 x 27 mm (4.21 x 4.48 x 1.06 inches) |
| Operating system | RouterOS v7, License level 4 |
| Operating temperature | -40°C to +70°C |
| Powering | |
| Number of DC inputs | 2 (PoE-In, DC jack) |
| PoE-In input Voltage | 18-28 V |
| DC jack input Voltage | 12-28 V |
| Max USB current | 1.5 A |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.2 A |
| PoE-In | Passive PoE |
| Max power consumption (without attachments) | 6 W |
| Max power consumption | 12 W |
