MikroTik SXTsq Lite5 16dBi 5GHz Dual Chain Integrated CPE / Backbone (US)
- SKU: RBSXTsq5nD-US
Product Information

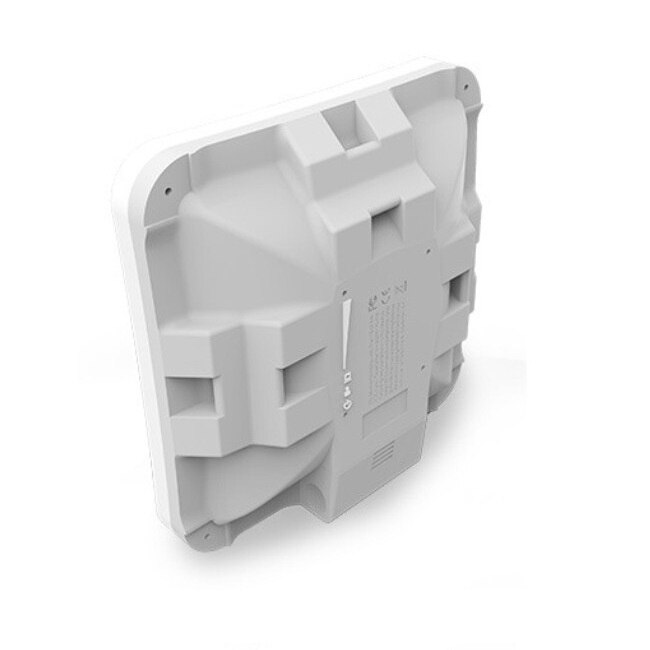

ISP Supplies supplies the MikroTik SXTsq Lite5, a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner (see photos for comparison).
The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle (see photo and related product).
SXTsq Lite5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
Specifications
Specifications SXTsq Lite5-US
| CPU | AR9344 |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| Storage | 16 MB Flash |
| 10/100 Ethernet ports | 1 |
| Wireless bands | 5 GHz radio |
| Operating frequency | International 5150 - 5875 MHz USA 5170 - 5250 MHz 5725 - 5835 MHz |
| Protocols | 802.11a/n |
| Chains | 2 |
| Antenna gain | 16 dBi |
| Antenna beam width | 23° |
| Wireless chip model | AR9344 |
| PoE in | Yes |
| Supported input voltage | 10 V - 30 V, passive PoE |
| Dimensions | 129x129x34 mm; package: 255x180x45 mm |
| Weight | Unit: 295 g; package: 492 g |
| Operating temperature | -40 to 70° C |
| License level | 3 |
| Operating System | RouterOS |
| Max Power consumption | 6 W |
