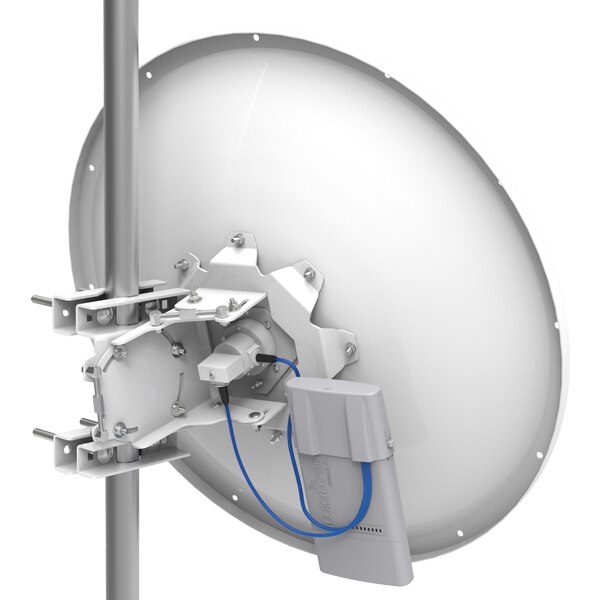

MikroTik mANT30 PA Parabolic Dish Antenna for 5GHz 30dBi Gain Includes Precision Alignment Mount
- SKU: MTAD-5G-30D3-PA
$290.15 $299.13
Product Information
ISP Supplies supplies the MikroTik mANT30 PA, a professional class 5GHz, 30dBi dish antenna, built to the highest industry standards. It is built to seamlessly accomodate the Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable. This model (MTAD-5G-30D3-PA) comes with a precision alignment mount and comes packaged with all necessary accessories and cables.
Specifications
Specifications MTAD-5G-30D3-PA
Electrical Specifications
| Frequency Range | 4.7-5.875 GHz |
| Gain | 30dBi typically |
| Dual Polarization | Vertical and Horizontal |
| 3dB Beamwidth | +/-2.5 deg |
| Standards | Complies with EN 302 326 DN1, DN2, DN3, DN5 |
| VSWR | ≤ 1.4 type, ≤ 1.8 max |
| Port to Port Isolation | >40dB min |
| Front-to-Back Ratio | >30 dB |
| Cross Polarization | >40 dB |
| Power Rating | 100 watts |
| Impedance | >50 ohms |
| Elevation adjustment range | +/- 15 deg |
Physical/Environmental Specifications
| Reflector | Aluminum |
| Outdoor Rating | ETSI EN 300 019-2-4 |
| Wind Survivability | 125mph (201kph) |
| Wind Load (125 mph) | 400 lbs, 174 lbs with radome |
| Connector (2) | Type RPSMA |
