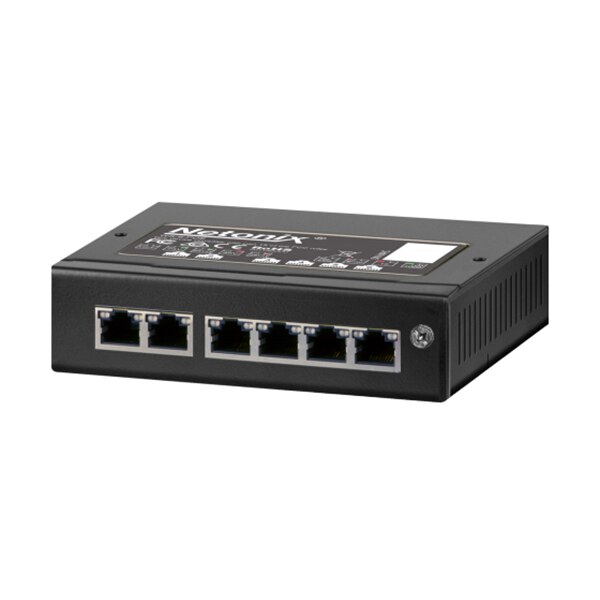

Netonix WISP Switch WS-6-MINI
- SKU: WS-6-MINI
$322.41
+ $43.12 Tariff
Product Information
ISP Supplies supplies the Netonix managed 6 port passive WISP Switch WS-6-MINI, 5 Gbps PoE ports, 1 Gbps uplink port. Power adapter not included. 100 watt power input capacity.
Can be powered from:
• 48VH passive POE port up to 2A from another WISP Switch into port 1
• 48-54V DC POE adapter up to 2A into port 1
• 48-54V DC barrel connector up to 2A into barrel adapter jack
Port 1 will accept passive 48VH (48-56V) using all 4 pairs like a POE injector used to power an airFIBER 24 GHz.
Specifications
Specifications WS-6-MINI
| Desktop / Wall mount | Yes |
| Dimensions | 127mm x 118mm x 32mm |
| Weight | 1 kg |
| Power Input | 37-53V DC |
| Chassis Earth Ground Lug | Yes |
| Max. Power Consumption | 2A |
| Switch Core and PHYs | Vitesse |
| Processor | MIPS 24K 416 MHz |
| System Memory | 128 MB |
| Flash Storage | 16 MB |
| Total Non-Blocking Line Rate | 6 Gbps |
| Certifications | CE, FCC, IC |
| Operating Temperature | -25 to 55°C (-13 to 131° F) |
| Operating Humidity | 5 to 95% Non-Condensing |
| Ethernet Ports | (6) 10/100/1000 Ethernet Ports |
| Passive PoE Configured Per Port via UI | 24V 0.75A pins 4,5(+) 7,8(-) 48V 0.75A pins 4,5(+) 7,8(-) 24VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-) 48VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-) |
| PoE Out Voltage Range | 48-50 VDC / 22-24 VDC |
| Passive PoE Current Sensors Per Port | Yes |
| ESD Rating | 24 kV Air / 24 kV Contact |
