Product Information

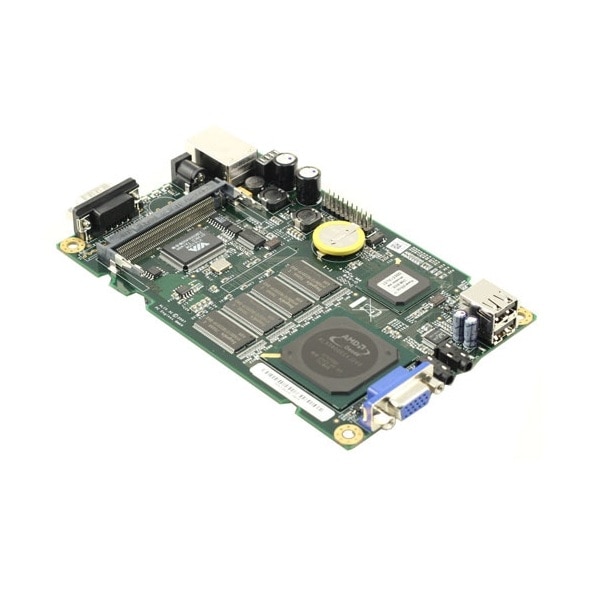

PC Engines ALIX 256MB / 1LAN / 2mPCI / 1USB / 1VGA / Audio
Specifications
Specifications ALIX3D3
| Processor (CPU) | 500 MHz AMD Geode LX800 |
| DRAM | 256 MB DDR DRAM |
| Storage | CompactFlash socket |
| Power | DC jack or passive POE, min. 7V to max. 20V |
| Expansion | 2 miniPCI slots, LPC bus |
| Ethernet Ports | 1 Ethernet channel (Via VT6105M 10/100) |
| I/O | DB9 serial port, dual USB, VGA, audio headphone out / microphone in RTC battery |
| Board Size | 100 x 160 mm |
| Monitoring | Three LEDs |
| Display Port | VGA |
| Power | DC jack or passive POE, min. 7V to max. 20V |
| Connectivity | 1 Ethernet channel (Via VT6105M 10/100) |
| Board size | 100 x 160 mm |
| Firmware | Award BIOS |
