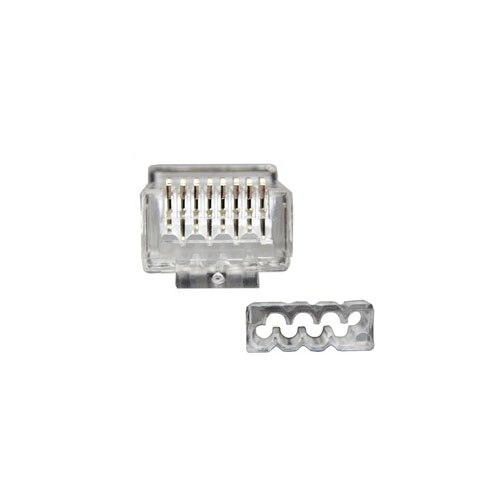

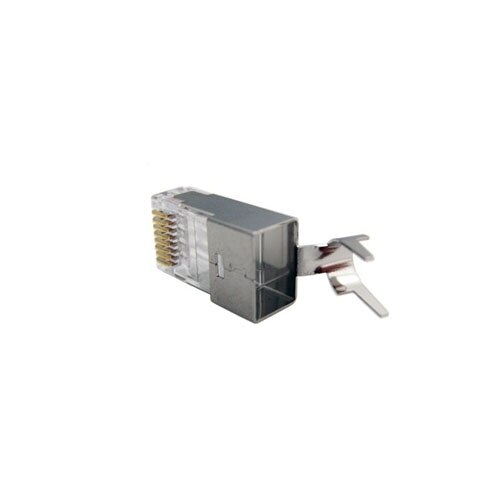

Connectors - CAT6/A/7 8x8 Shielded RJ45 Modular Plug, 3 Prong, for Round Solid/Stranded Cable, w/Inserter
- SKU: CN1-022-8C6AS
$0.84 $2.09
- Manufacturer: Primus Cable
- Data Sheet: Download
Product Information
Connectors - CAT6/A/7 8x8 Shielded RJ45 Modular Plug, 3 Prong, for Round Solid/Stranded Cable, w/Inserter
Specifications
Specifications CN1-022-8C6AS
| Electrical Specifications | |
| UL Applications: | 250 Volts ACMax., at 2 AMPS |
| Dielectric with Standing Voltage: | 500 Volts AC |
| Insulation Resistance: | 100 M Ω |
| Termination: | Resistance 20m Ω Max After Environmental Testing |
| Mechanical Specifications | |
| Cable-to-Plug Tensile Strength: | 20 Pound Min. |
| Durability: | 200 Matting Cycles |
| Physical Characteristics | |
| Housing: | Polycarbonate, UL94V-0 |
| Color: | Transparent |
| Contact Blade: | Copper Alloy |
| Conductor: | Stranded & Solid Wire, 22 - 26 AWG (Plug Can Be Used For Wire OD’s Of Under 1.5 mm & Cable Out Jacket OD Should Be Under 8.0 mm) |
| Gold Plating: | 50µ” |
| Shielded Shell: | Copper Alloy |
