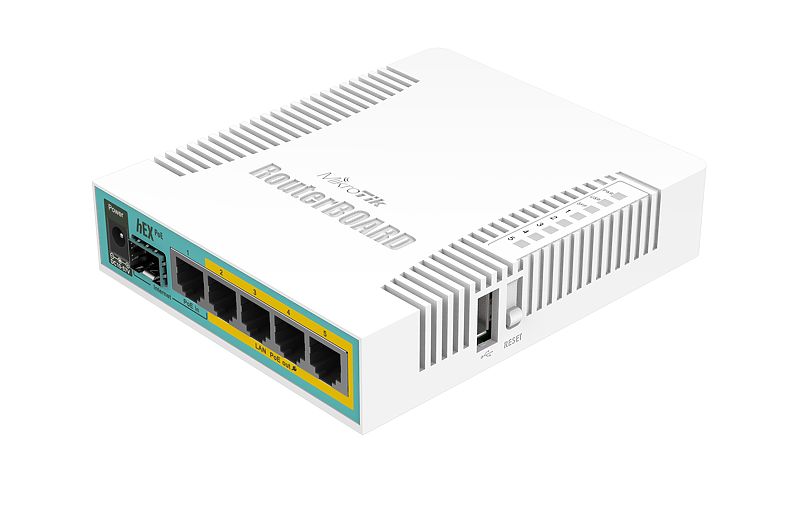

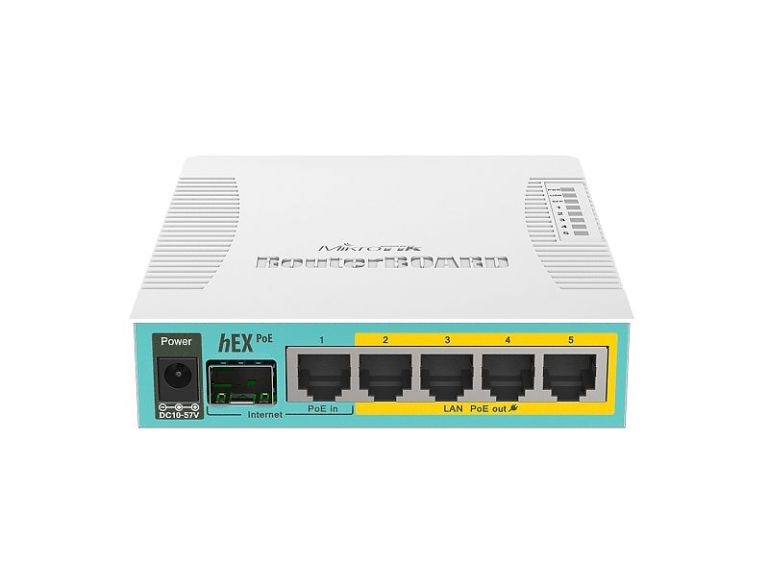

MikroTik hEX PoE Five Port Gigabit Ethernet Router

The MikroTik hEX PoE Five Port Gigabit Ethernet Router is designed for locations where wireless connectivity is not needed. It features a USB 2.0 port and an SFP port to add optical fiber connectivity. Ports 2-5 can also power other PoE-capable devices with the same voltage as applied to the unit, reducing the need for additional power adapters and cables. Despite its affordable and compact design, the hEX PoE boasts a powerful 800MHz CPU capable of handling advanced configurations supported by RouterOS. The Ethernet ports are shielded, and each port can provide a maximum current of 1A, depending on the input voltage (12-30V or 31-57V).

Additionally, the hEX PoE supports passive PoE input and passive or 802.3af/at PoE output. With a 48V DC input, it can power 802.3af/at devices, although a separate 48V power supply is required for this feature. The unit provides a maximum current of 450mA for each port, without supporting PoE powered device classification.

• For locations where wireless connectivity is not required

• Five Gigabit Ethernet ports for fast and reliable data transfer
• Powerful 800MHz CPU for handling advanced configurations
• Shielded Ethernet ports for enhanced durability and reliability
• Compact and affordable design with easy setup and management

• QCA9557 CPU
• 800 MHz CPU Nominal Frequency
• 128MB RAM
• Five 10/100/1000 Ethernet Ports
• One SFP Port
• One USB type A Port
• -40°C to 60°C Operating Temperature
• 114 x 137 x 29 mm

• MikroTik hEX PoE Five Port Gigabit Ethernet Router
• 24V 2.5A Power Adapter
