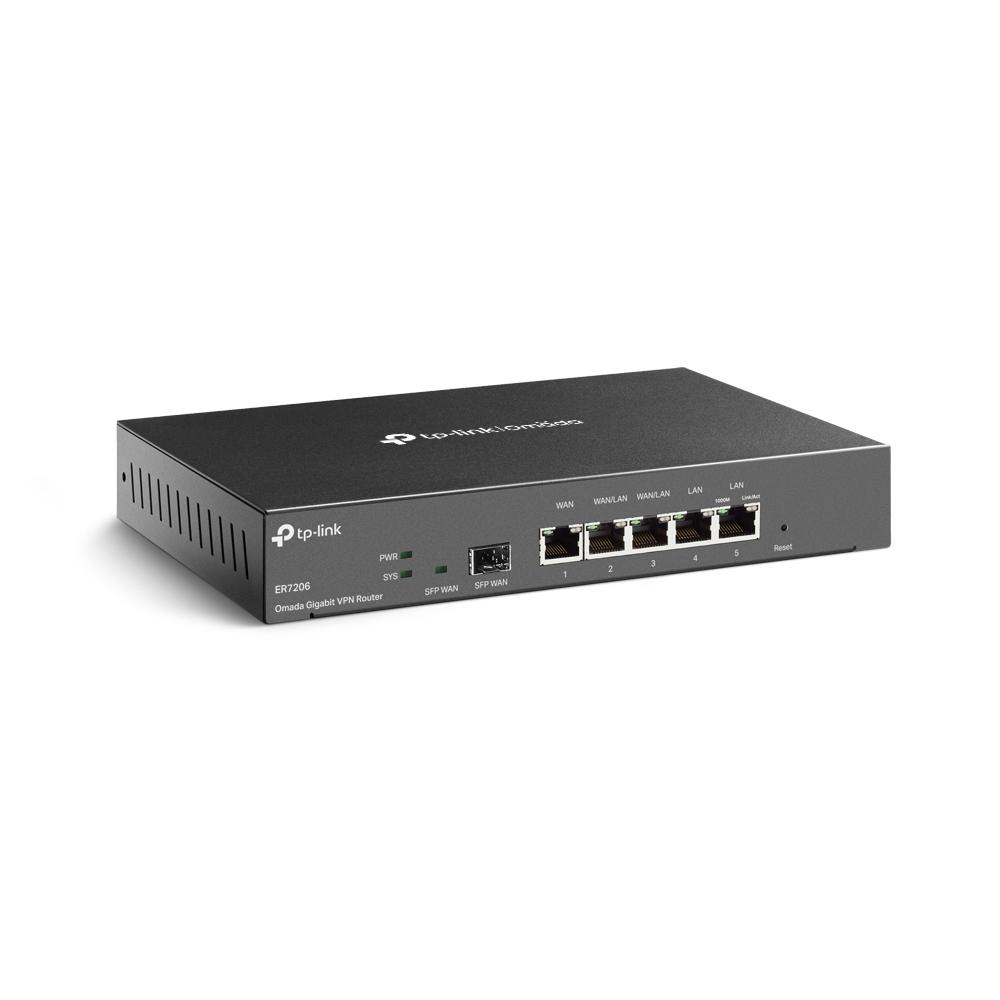

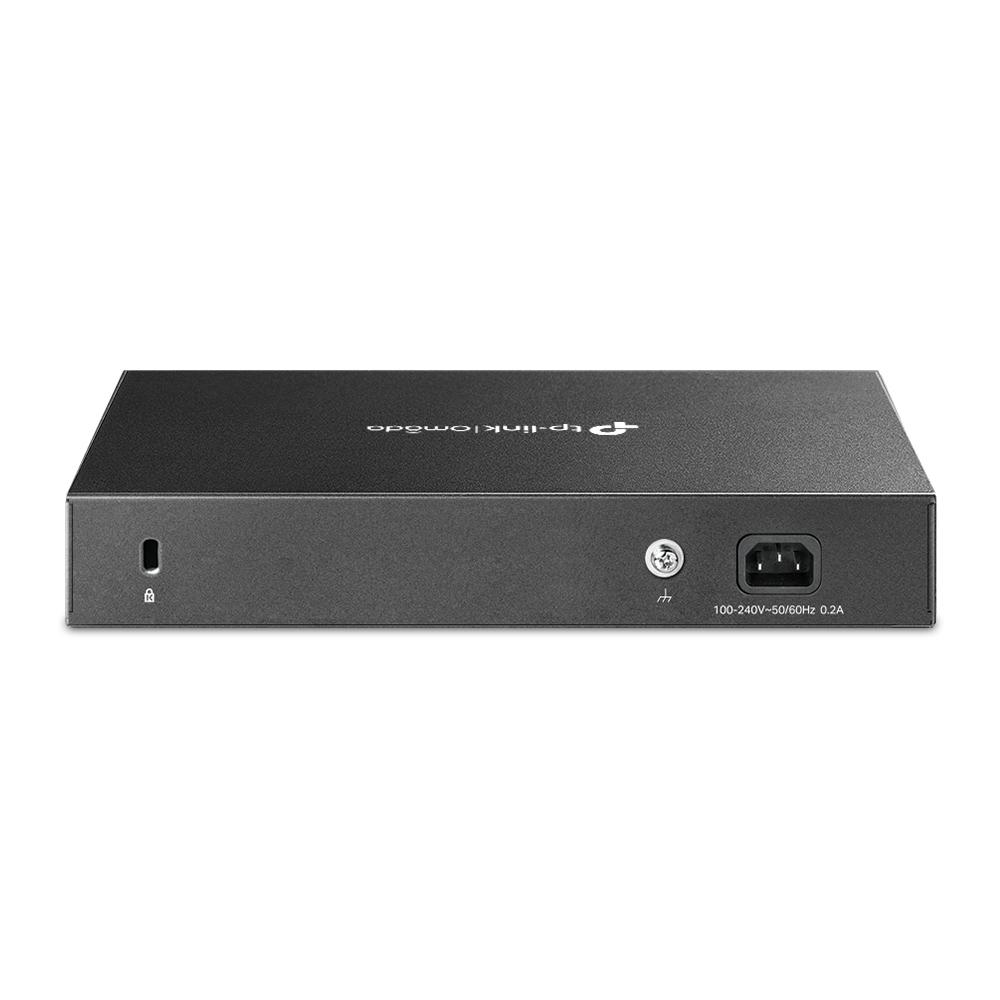

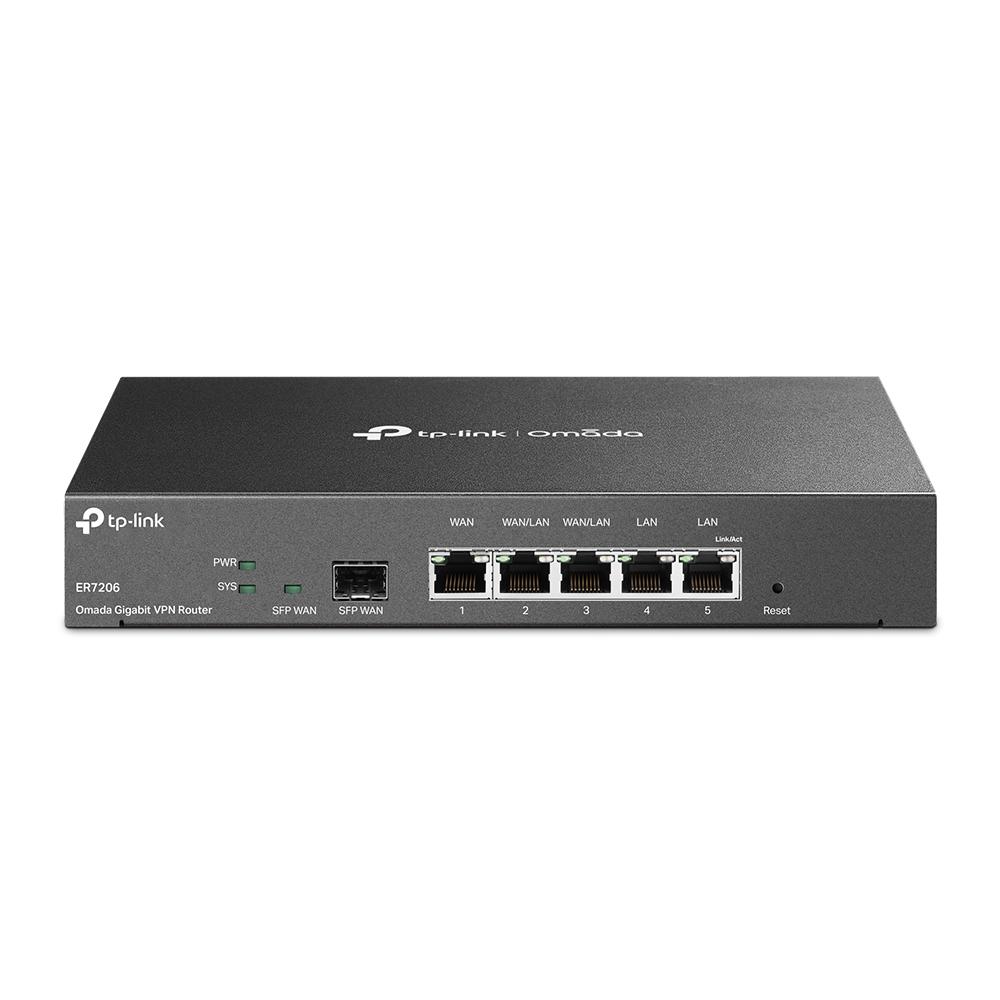

TP-Link SafeStream Gigabit Multi-WAN VPN Router
- SKU: ER7206
$192.47
Product Information
SafeStream™ Gigabit Multi-WAN VPN Router PORT: 1× Gigabit SFP WAN Port, 1× Gigabit RJ45 WAN Port, 2× Gigabit WAN/LAN RJ45 Ports, 2× Gigabit RJ45 LAN port FEATURE: Integration with Omada SDN Controller, Support 100 IPsec VPN Tunnels, 50 PPTP/L2TP VPN Tunnels, 50 OpenVPN Tunnels, 150000 Concurrent Sessions, Load Balance, Link Backup, Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, Guest Portal, VLAN
Specifications
Specifications ER7206
| HARDWARE | |
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| Interface | • 1 Fixed Gigabit SFP WAN Port • 1 Fixed Gigabit RJ45 WAN Port • 2 Fixed Gigabit RJ45 LAN Ports • 2 Changeable Gigabit RJ45 WAN/LAN Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Button | Reset Button |
| Power Supply | 100–240 V~50/60 Hz |
| Flash | SPI 4MB + NAND 128MB |
| DRAM | 512MB |
| LED | PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in. (226 × 131 × 35 mm) |
| PERFORMANCE | |
| Concurrent Session | 150,000 |
| IPsec VPN Throughput | 291.6 Mbps |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static/Dynamic IP • PPPoE • PPTP • L2TP |
| DHCP | • DHCP Server • DHCP Address Reservation • Multi-IP Interfaces* • Multi-Net DHCP* |
| MAC Clone | Modify WAN/LAN MAC Address† |
| IPTV | IGMP v2/v3 Proxy |
| VLAN | 802.1Q VLAN |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing • Policy Routing |
| Bandwidth Control | • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security | • SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2* • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • 10 PPTP VPN Clients • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • 10 L2TP VPN Clients • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server* • 10 OpenVPN Clients* • 50 OpenVPN Tunnels* |
| SECURITY | |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| Filtering | WEB Group Filtering URL Filtering Web Security |
| ARP Inspection | • Sending GARP Packets§ • ARP Scanning • IP-MAC Binding |
| Access Control | Source/Destination IP Based Access Control |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password* • Hotspot（Local User / Voucher* / SMS* / Radius*） • External Radius Sever • External Portal Sever* • Facebook* |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Syslog Support |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning)** |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
