Tachyon Networks 60GHz Outdoor Client
- SKU: TNA-302
$348.81
- Manufacturer: Tachyon Networks
- Data Sheet: Download
Product Information
Product Features
- 60GHz PTP+PTMP AP / Client
- Default operating mode: Client
- Beamforming antenna range: 40° x 40°
- Operation mode options: Access Point/Client (software controllable)
- Channels 1-6 (57-71 GHz)
- 1x Tachyon Networks TNA-302 60GHz unit w/ attached mounting back plate
- 1x 48V 0.5A PoE adapter and power cable
- Quick start guide insert
Specifications
Specifications
| Operating modes | Station, Access Point (software configurable). Default mode for the TNA-302 is station. |
| Max STA count / AP | Up to 32 stations |
| TX Power | 40 EIRP |
| Link encryption | AES+GCMP |
| Frequency & supported channels | Full band: 57-71 GHz Channels: 1-6 Half channels: 1-11 (see notes here about half channel support) |
| Channel size options | Full (2 GHz) Half (1 GHz) |
| Station scheduling | TDMA: dynamic scheduling mechanism |
| TNA-302 Antenna | 22 dBi 3D beamforming phased array with +/- 20° azimuth (40° total) and +/- 20° elevation (40° total). Beam size is: 12° azimuth x 12° elevation. |
| Antenna polarization | Vertical |
| Duplex | TDD |
| Software | |
| Max MTU size | 7900 b |
| Networking mode | Transparent bridge |
| VLAN passthrough | Yes |
| Data VLAN | Yes - when operating in station mode |
| Management VLAN | Yes |
| IPv4 support | Yes |
| IPv6 support | Yes |
| Traffic shaping | Yes - when operating in station mode |
| DHCP snooping | Yes - when operating in station mode: DHCP Option 82 injection, and rogue DHCP server blocking. |
| Management | Web interface, SNMP v2 & v3, SNMP traps, & Restful API (SSH available upon request). |
| Services | Ping watchdog, remote syslog, local log, device discovery, speedtest, ping, traceroute, NTP |
| Bootbanks | Dual bootbanks |
| Hardware | |

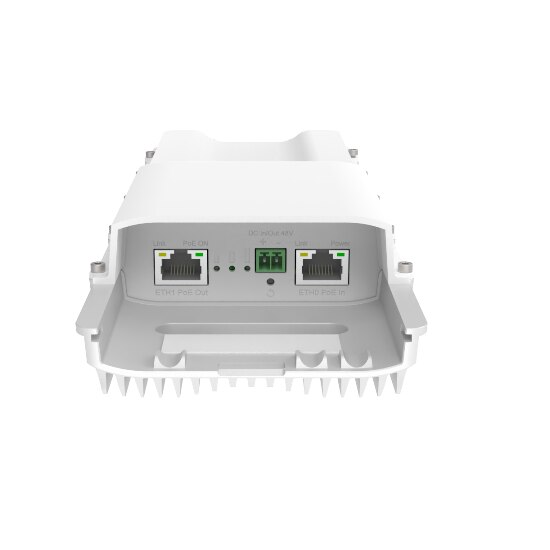

| Interfaces | 1 x 2.5G ethernet, 1 x 1G ethernet, & 1 DC input screw terminal |
| LEDs | Ethernet link status, wireless status and signal level, & power |

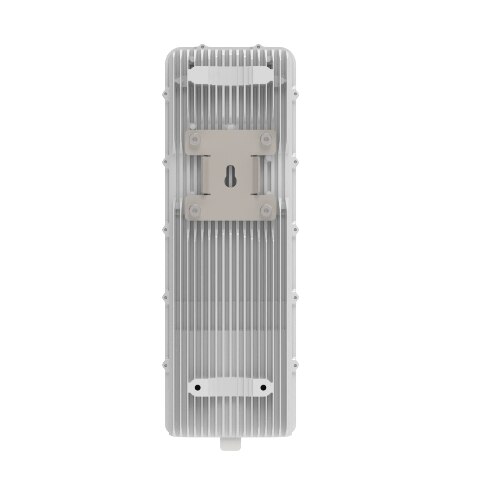

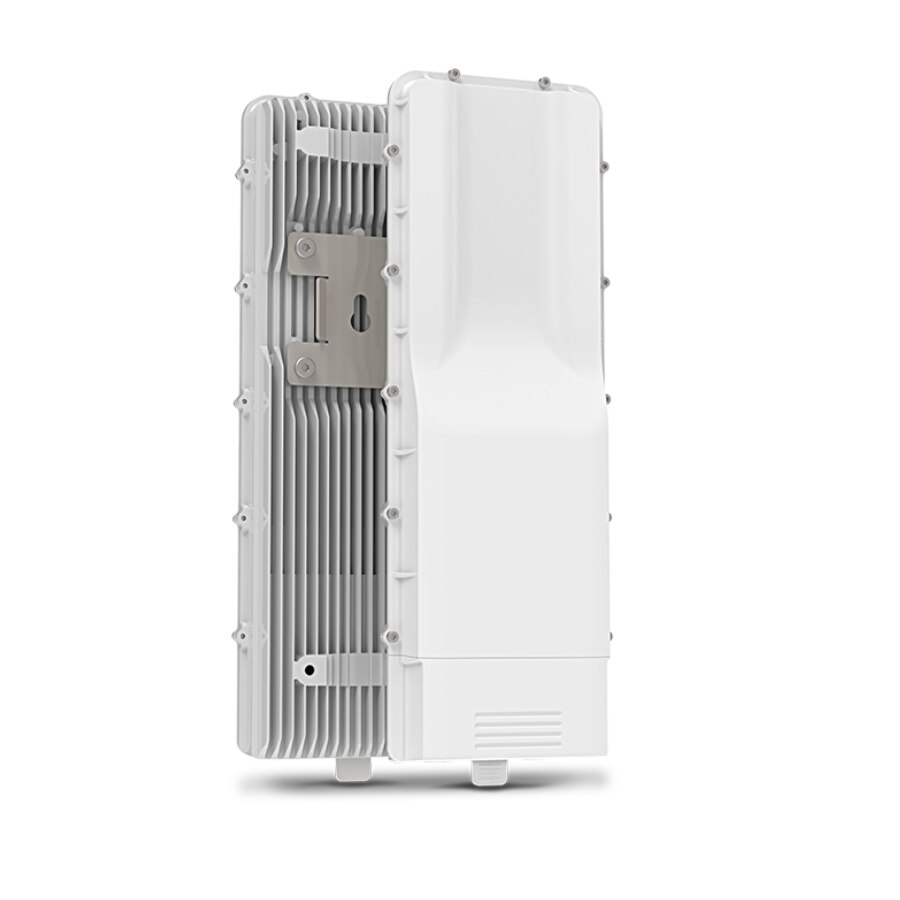

| Mount | Pole or wall mountable via mounting backplate |
| Input power | Passive PoE 24-52V or via DC input screw terminal Devices support 2 or 4 pair power, expecting positive on 4/5 and negative on 7/8 |
| Output power | On 1G port: passive PoE out w/max .5A |
| PoE adapter included | Yes - 48V .5A PoE adapter and cable |
| Max power consumption | 17W without PoE out being used, and 41W with PoE out being used |
| Certifications | FCC: Z9W-TNA-301, Z9W-TNA-302 IC: 11468A-TNA301, 11468A-TNA302 CE: Coming Soon |
| Operating temperature | -30°C - 60°C |
| Unit dimensions | Height: 11" / 28cm, Width: 4" / 10.2 cm, Depth: 2" / 5.1cm |
| Unit weight | 24.5 oz / 695 g |
Reviews
Ratings & Reviews
1 review
Good CPE radio at a good price
by Moose
Very similar to the TNA-301 - a bit more gain and a much tighter pattern. So like the 302
Easy to mount, with a keyhole hook or hose clamp to a pipe.
It is helpful to have a protractor or a piece of paper with lines or cut to the +-20 degrees because there is nothing of the case shape to guide visual aiming.
60 GHz is susceptible to rain fade and oxygen absorption. Here in the mid-west US in is short duration rain that limits my link lengths as we will get 600 mm/hr for a couple minutes. Plan accordingly.
Notches in the connector cover are just barely big enough for Schireen cable, so I usually use a rasp and make it a little bit bigger.
I appreciate that it has provision for 2-wire DC power and not just passive PoE.
