Tycon Power RemotePro 12V 2.5W Continuous Remote Power System, 15W integrated Solar Panel
- SKU: RPPL12-18-15
Product Information
RemotePro 12V 2.5W Continuous Remote Power System, 15W integrated Solar Panel, Polycarbonate Enclosure, 12V 18Ah Battery, 12V 20A Output Voltage - unregulated
The RemotePro® PL-SM series (RPPL) outdoor power systems from Tycon Power® are meticulously designed for applications that require a primary off-grid or backup power source to run various electronics. These robust systems feature sealed and weatherproof 11x7x6” polycarbonate enclosures capable of holding up to two 12V 9AH batteries. The hinged and gasket-sealed enclosures protect internal components from the elements, ensuring they remain safe and dry. You can secure the enclosures with a padlock or tamper seal, providing peace of mind in remote or unattended locations.
Versatile Mounting Options

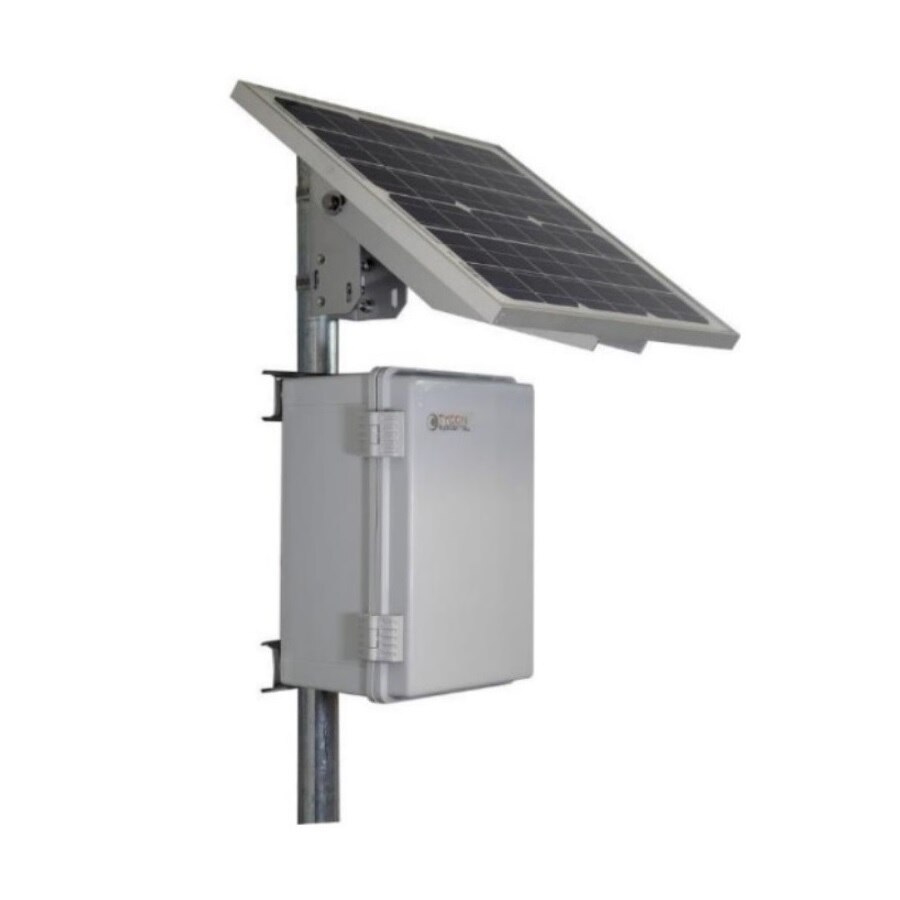

Straightforward and Versatile Mounting: Mount the RPPL systems easily to a wall or pole using the included mounting bracket system. This flexibility allows for various installation options, catering to different site requirements.
High-Quality Solar Panels: The high-quality 30W and 35W solar panels, which come with a 25-year power output guarantee, can be mounted to poles with diameters ranging from 51mm to 101mm (2″ to 4″). Alternatively, use the included bracket kit to mount them directly to a wall. Position the solar panels for optimal sunlight exposure to maximize their efficiency.
Advanced Battery Protection

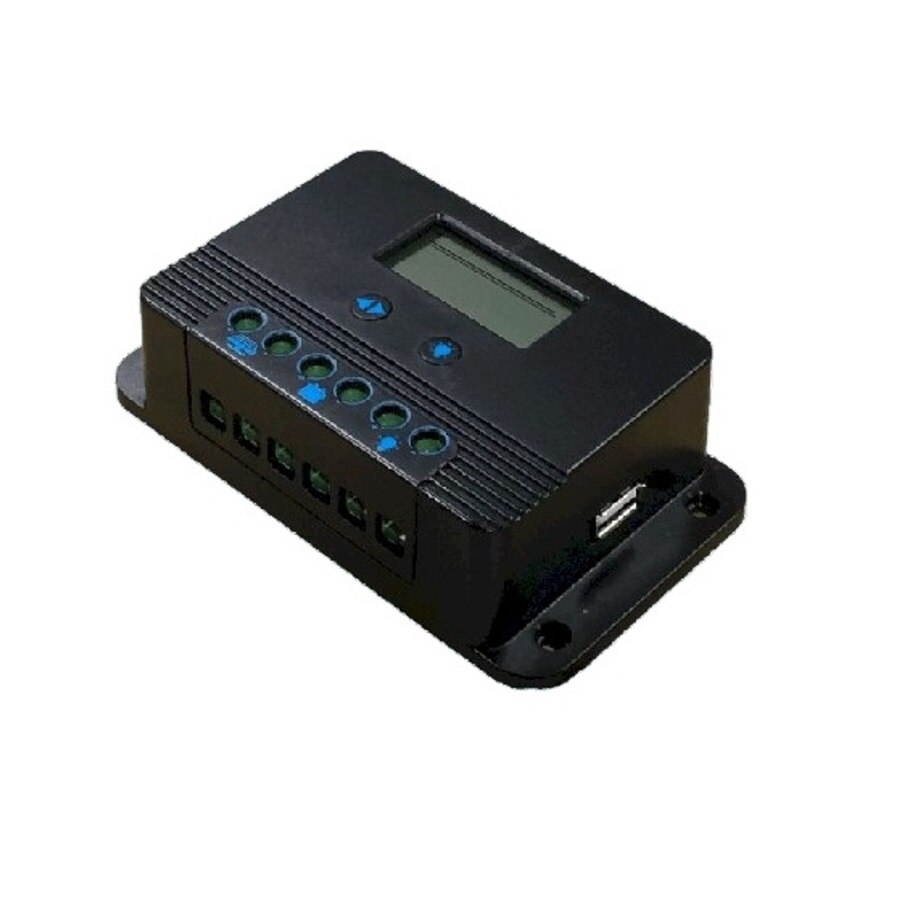

Battery Charge Controllers: The advanced battery charge controller protects the valve-regulated sealed lead-acid batteries from over-charging or over-discharging. This essential feature extends the batteries’ lifespan, ensuring reliable performance over time.
Built-In PoE Inserter and DC-DC Converter: Some of the RPPL-SM systems include a controller with a built-in PoE inserter and DC-DC converter, supplying 24V or 48V PoE from the 12V battery system. Other models use a 20A PWM controller with a parametric LCD display, catering to a range of equipment requirements.
Flexible and Safe Operation

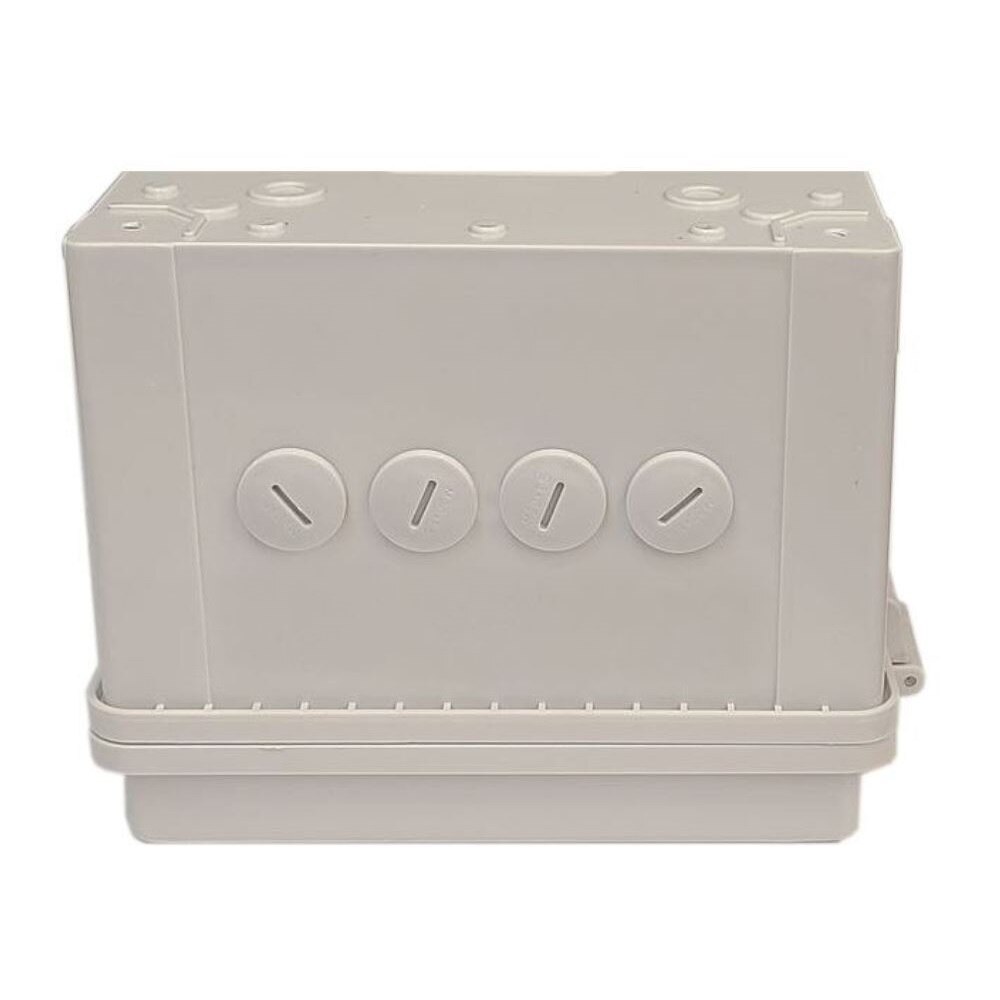

Multiple Ports for Various Cabling Needs: The enclosures feature multiple ports for CAT5/6 cables, antenna cables/connectors, or other cabling, providing flexibility for various wiring needs. This design ensures the systems can accommodate different setups and configurations.
Reliable Battery Performance

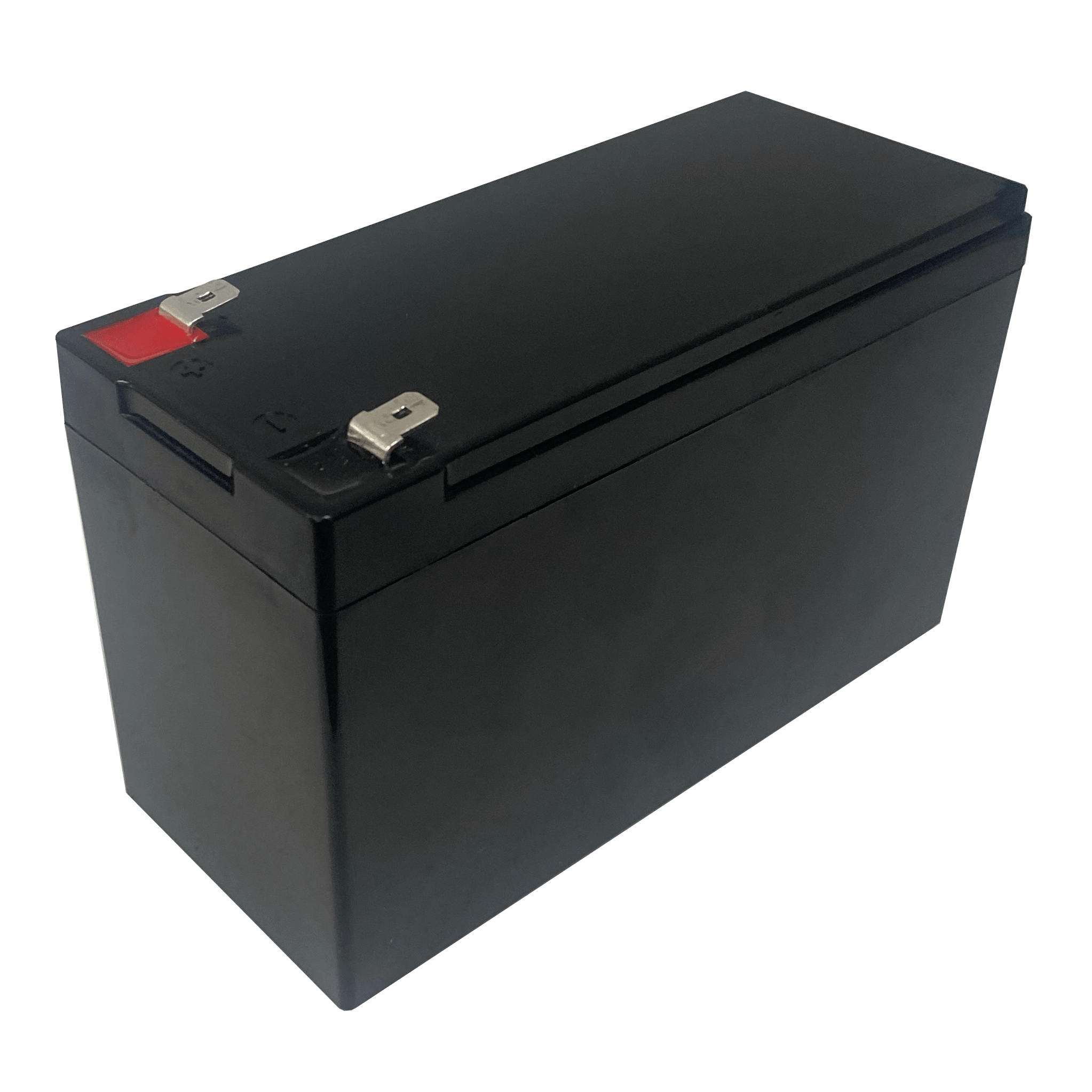

Absorbed Glass Mat (AGM) Batteries: The RPPL systems use Absorbed Glass Mat (AGM) batteries, which offer excellent temperature and deep discharge performance. These batteries ensure consistent and dependable power supply for various applications.
Features:
- Complete Remote Power Solution for Off-Grid operation
- Weatherproof, UV resistant, outdoor enclosures
- Enclosures can be Wall or Pole Mounted
- High Performance Valve Regulated Sealed Lead Acid Batteries
- Advanced battery charge controller protects against overcharge and over discharge
Applications:
- Wireless Base Stations and Clients
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Remote Sensors
- Remote Lighting
- Backup Power Systems
Specifications
Specifications RPPL12-18-15
| Secondary Volts Out (DC) | 12V 20A |
| Battery Capacity (Amp Hrs) | 18Ah |
| Battery Voltage (DC) | 12V |
| Battery Type | Valve Regulated Sealed Lead Acid / Absorbed Glass Mat (AGM) |
| Battery Life | 5 Years |
| Controller Type | PWM |
| Overcharge Protection | 14.4V |
| Over-discharge protection | 11.0V |
| Over-discharge recovery volts | 12.5V |
| Controller Self Consumption | < 0.5W |
| Enclosure Type | UV Protected Polycarbonate |
| Enclosure External Size | 12 x 8.5 x 7" (305 x 216 x 178mm) |
| Enclosure Internal Size | 11 x 7 x 6" (279 x 178 x 152mm) |
| Solar Panel Dims | 14.6 X 14” (371 x 356mm) |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| System Weight (no batteries) | 11lb (5kg) |
| Battery Weight | 11lb (5kg) |
| Wind Speed Rating | 110MPH (49m/s) |
| Warranty | 3 Years |
