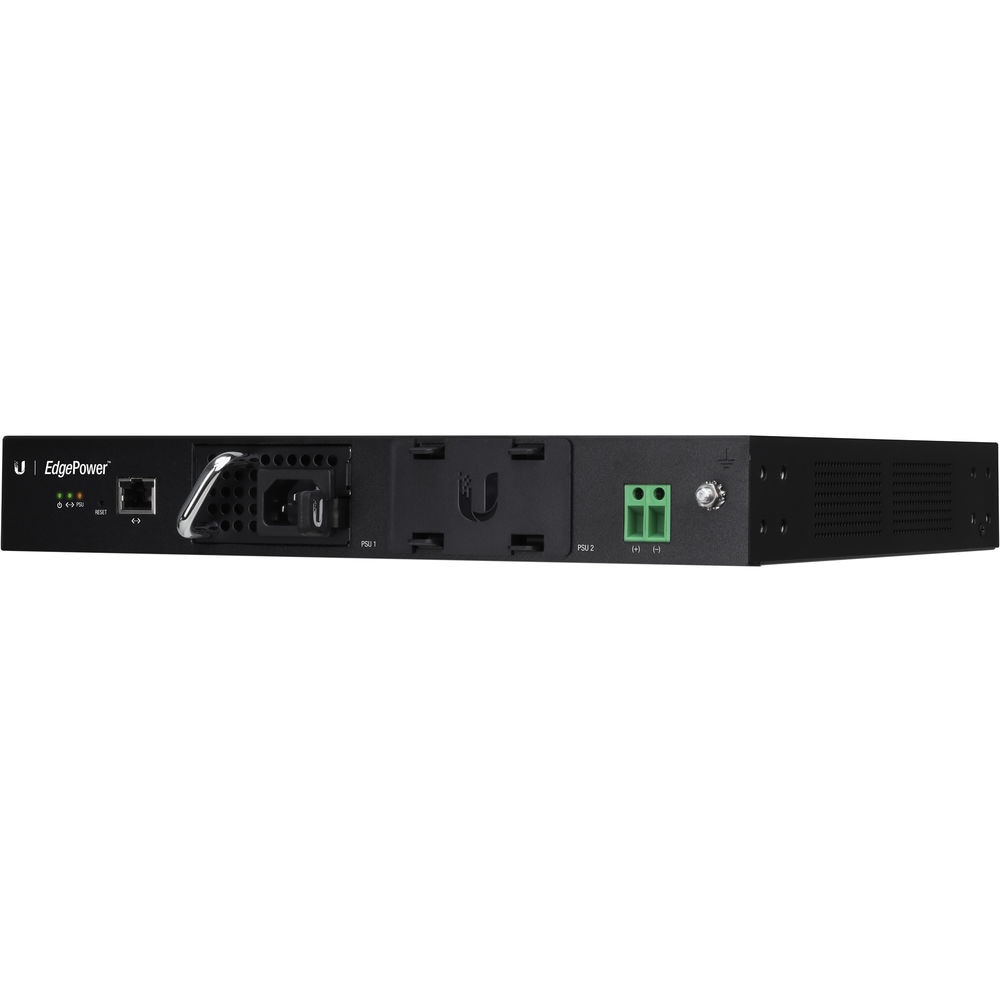

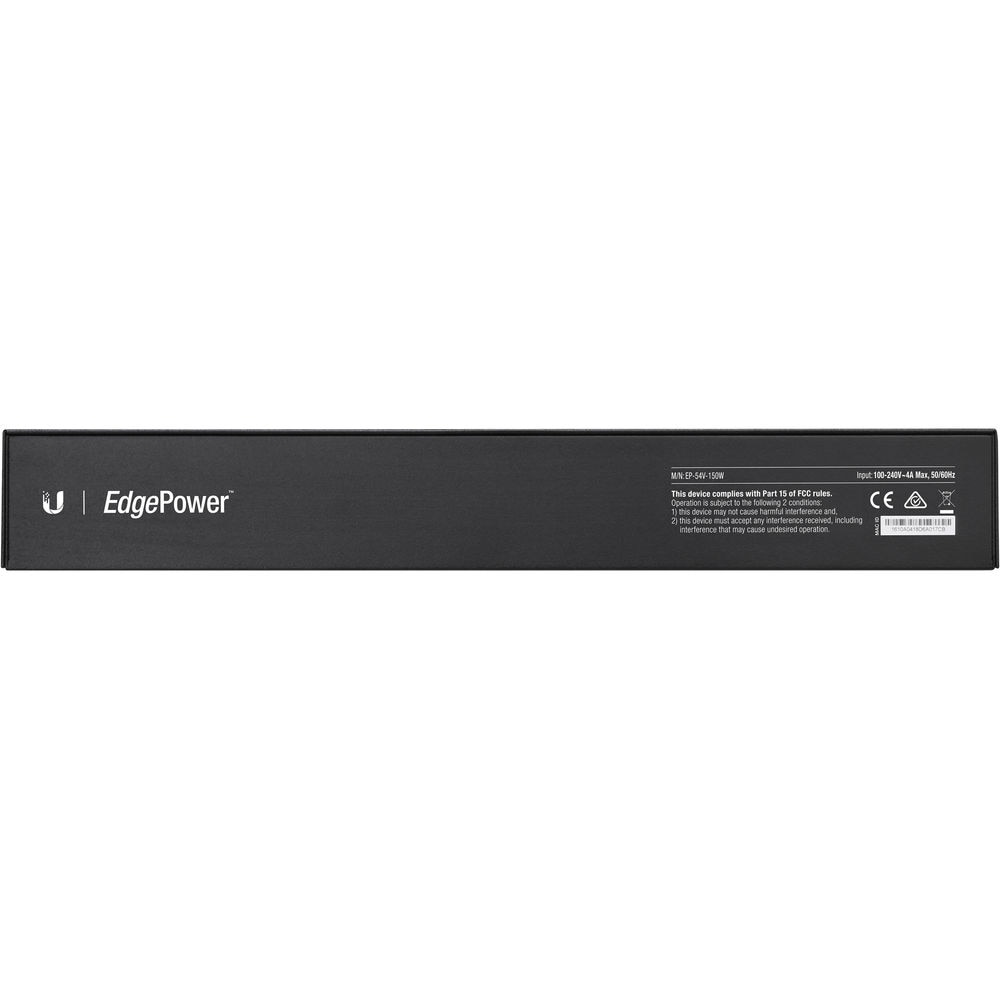

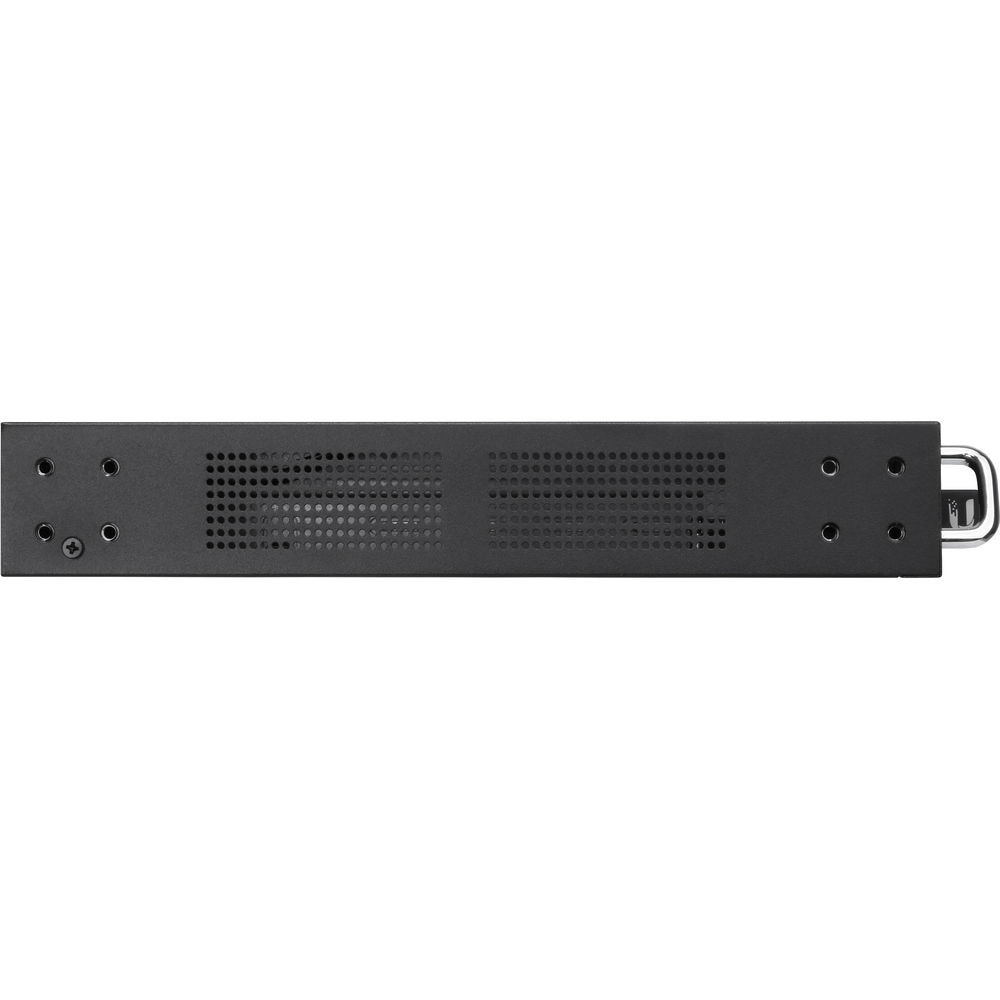

Ubiquiti UniFi EdgePower Module (150W)
- SKU: EP-54V-150W
$266.35
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
PSU module designed for use with the EdgePower EP-Supply (54V 150W model)
Specifications
Specifications EP-54V-150W
| Dimensions without Mount Brackets | 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.675") |
| Weight without Mount Brackets | 2.7 kg (5.95 lb) |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply Module | 54V, 150W AC/DC, Model EP-54V-150W-AC, Installed in PSU 1 |
| Maximum Power Output | 150W (1 PSU Module) 300W (2 PSU Modules @ 150W Each) |
| LEDs Power, Ethernet, PSU | System On/Off Management Port Link PSU1+PSU2, PSU1/PSU2 |
| Networking Interface | (1) 10/100 RJ45 Ethernet |
| Management Interface | Ethernet In-Band, Web UI |
| Rack-Mount | Yes, 1U High |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% RH |
| ESD/EMP Protection | Air ± 24KV; Contact ± 24KV |
| Certifications | CE, FCC, IC |
