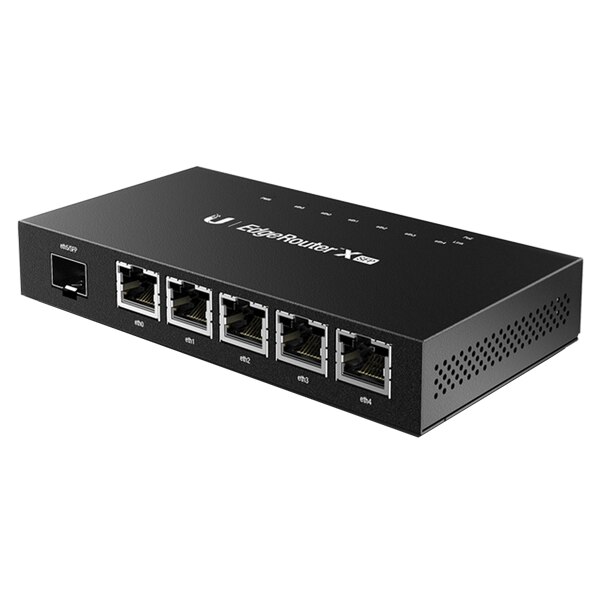

Ubiquiti UISP EdgeRouter X SFP Gigabit Router
- SKU: ER-X-SFP
$136.21
Product Information
Compact but powerful router sporting (5) Gigabit RJ45 ports with passive PoE support and an SFP port.
Specifications
Specifications ER-X-SFP
| Dimensions | 142 x 75 x 23 mm (5.59 x 2.95 x 0.91") |
| Weight | 215 g (7.58 oz) |
| Max Power Consumption | 5W |
| Max total PoE Output | 50W @ 24V |
| PoE Output | Passive 24V (Pins 4, 5+; 7, 8- |
| Power Input | 24VDC, 2.5A Power Adapter (Included) |
| Power Supply | External AC/DC Adapter |
| Supported Voltage Range | 9 to 26VDC |
| Button | Reset |
| LED | Power, Link/Activity (6), PoE (5) |
| Processor | Dual-Core 880 MHz, MIPS1004Kc |
| System Memory | 256 MB DDR3 RAM |
| Code Storage | 256 MB NAND |
| Certifications | CE, FCC, IC |
| Wall-Mount | Yes |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Data/PoE Output Port | (5) 10/100/1000 RJ45 Ports |
| Data Port | (1) 100/1000 SFP Port |
| Poe Out Voltage Range | 22-24VDC |
| Max PoE Wattage Per Data/PoE Output Port | 12W (24V) |
| Max PoE Wattage Combined (All Ports) | 50W |
| PoE Method | Passive |
Software Specs
| Interface/Encapsulation | Ethernet 802.1q VLAN PPPoE GRE IP in IP Bridging Bonding (802.3ad) |
| Addressing | Static IPv4/IPv6 Addressing DHCP/DHCPv6 |
| Routing | Static Routes OSPF/OSPFv3 RIP/RIPng BGP (with IPv6 Support) IGMP Proxy |
| Security | ACL-Based Firewall Zone-Based Firewall NAT |
| VPN | IPSec Site-to-Site and Remote Access OpenVPN Site-to-Site and Remote Access PPTP Remote Access L2TP Remote Access PPTP Client |
| Services | DHCP/DHCPv6 Server DHCP/DHCPv6 Relay Dynamic DNS DNS Forwarding VRRP RADIUS Client Web Caching PPPoE Server |
| QoS | FIFO Stochastic Fairness Queueing Random Early Detection Token Bucket Filter Deficit Round Robin Hierarchical Token Bucket Ingress Policing |
| Management | Web UI CLI (SSH, Telnet) SNMP NetFlow LLDP NTP UBNT Discovery Protocol Logging |
