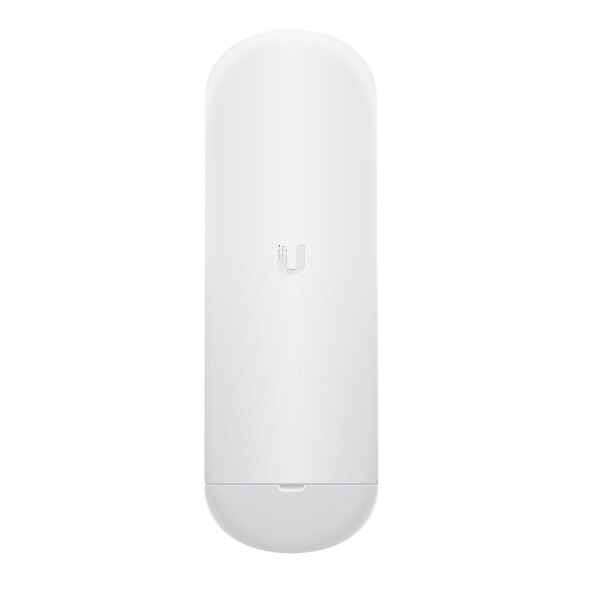

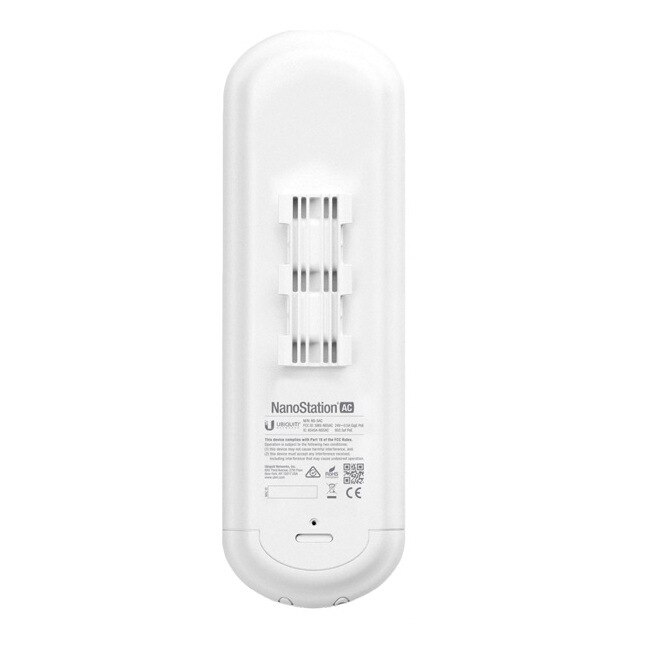

Ubiquiti UISP airMAX NanoStation 5AC Radio
- SKU: NS-5AC-US
$179.61
Product Information
UISP-supported WiFi radio designed for point-to-point and customer-premises applications.
Specifications
Specifications NS-5AC-US
| Dimensions With Mount Without Mount | 257 x 84 x 30 mm (10.12 x 3.31 x 1.18") 257 x 84 x 41 mm (10.12 x 3.31 x 1.61") |
| Weight | 233 g (8.22) oz |
| Power Supply | 24V, 0.5A Gigabit PoE Supply (Included) |
| Max. Power Consumption | 8.5W |
| Power Method | 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Gain | 16 dBi |
| Networking Interface | (2) 10/100/1000 Mbps Ethernet Ports |
| Channel Bandwidths | 10/20/30/40/50/60/80 MHz |
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2 |
| Cross-pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.6:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual Linear |
| Enclosure | UV Resistant Polycarbonate |
| LEDs | (1) Power, Eth1, Eth2; (1) Signal Strength |
| Mounting | Pole-Mount (Kit Included) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| RoHS Compliance | Yes |
| ESD/EMP Protection | ±24kV Contact/Air |
| Shock & Vibration | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC |
