Ubiquiti Networks LTU-XR-US
- SKU: LTU-XR-US
$177.29
Product Information

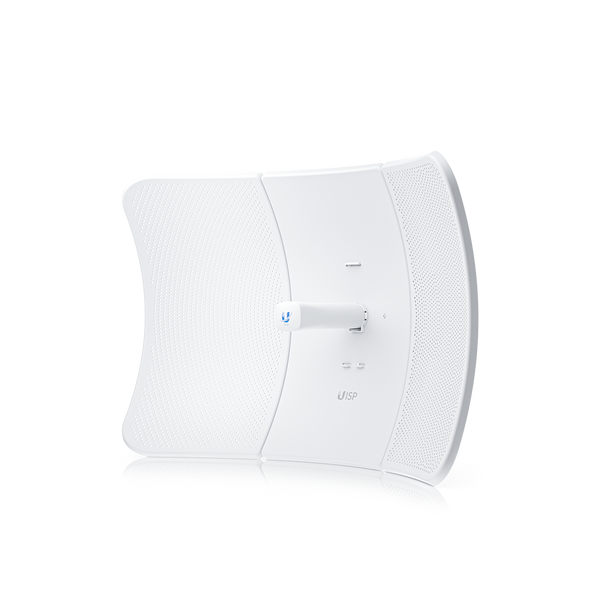

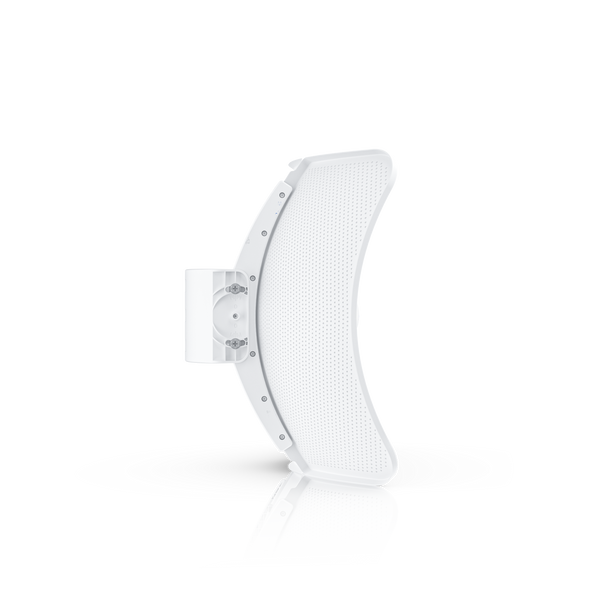

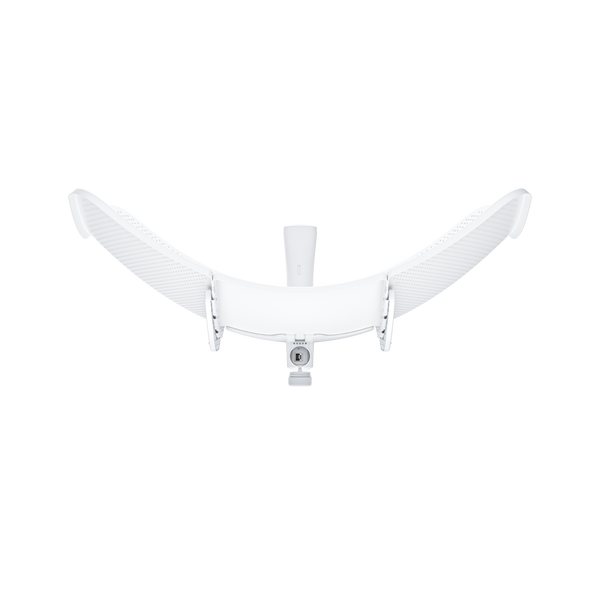

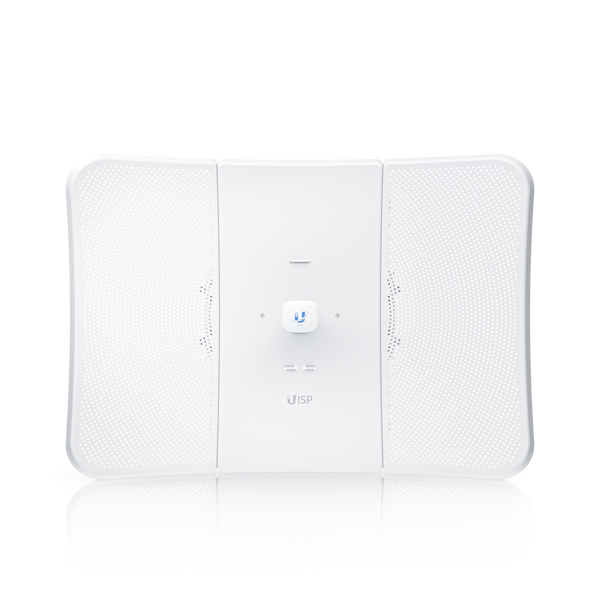

29dBi 5GHz LTU XR CPE PtMP Wireless Antenna
Specifications
Specifications LTU-XR-US
| Dimensions | 747 x 525 x 347 mm (29.41 x 20.67 x 13.66") |
| Weight | 3.2 kg (7.06 lb) |
| Enclosure materials | Aluminum alloy, UV stabilized polycarbonate |
| Mount material | UV stabilized polycarbonate |

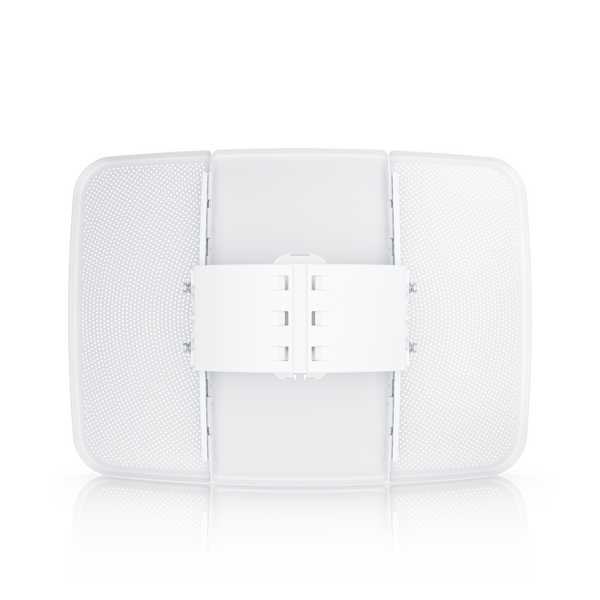

| Mount | Integrated pole mount (included) |
| Pole compatibility | Ø35-60 mm (Ø1.38-2.36") |
| Wind loading | 1100 N at 200 km/h (247.29 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interfaces | (1) GbE RJ45 port |
| Button | Factory reset |
| LEDs | Power/ethernet |
| RF connections | Internal |
| Max. power consumption | 8.5W |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24VDC, 0.5A Gigabit PoE adapter (included) |
| Supported voltage range | 22 to 26VDC |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | FCC, IC, CE |
| System | |
| Maximum throughput | 550 Mbps |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| Software | |
| OS | airOS® |
| Modes | PtMP CPE only |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Network | Router mode |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Modern Web browser or Android/iOS smartphone |
| RF | |
| Operating frequency* | 5.15 to 5.95 GHz * Depends on regulatory region. |
| Max. conducted TX power | 25 dBm |
| Channel bandwidth | 10/20/30/40/50 MHz |
| Antenna Gain | 29 dBi |
| Isolation | 20 dB |
| Beamwidth | HPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5° |
| Electrical downtilt | 0° |
