Ubiquiti Networks U7-Pro-Max-US
- SKU: U7-Pro-Max-US
- Manufacturer: Ubiquiti Networks
Product Information

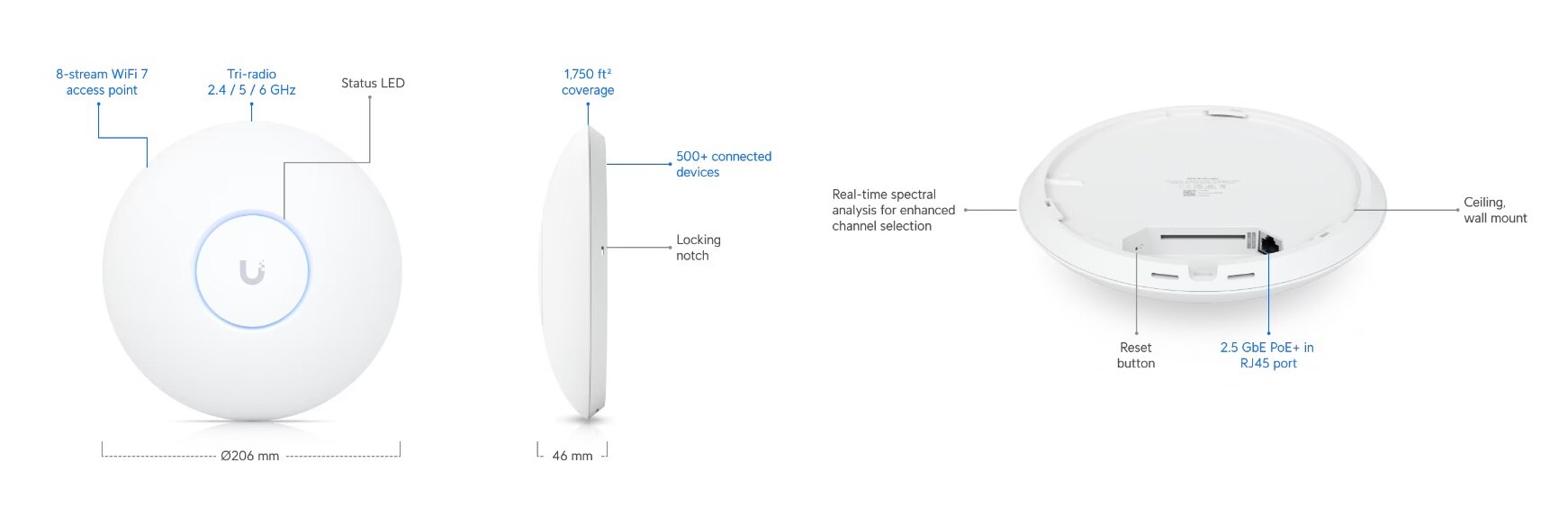

Ubiquiti Networks U7-Pro-Max
UniFi WiFi 7 AP with 8 Spatial Streams 6GHz
Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
Features:
- WiFi 7 with 6 GHz support
- 8 spatial streams
- Real-time spectral analysis for enhanced channel selection*
- 160 m² (1,750 ft²) coverage
- 500+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
Specifications
Specifications U7-Pro-Max
| Mechanical | |
| Dimensions | Ø206 x 46 mm (Ø8.1 x 1.8") |
| Weight | 680 g (1.5 lb) |
| Enclosure material | Polycarbonate, aluminum |
| Mount material | Stainless steel (SUS304), galvanized steel (SGCC) |
| Hardware | |

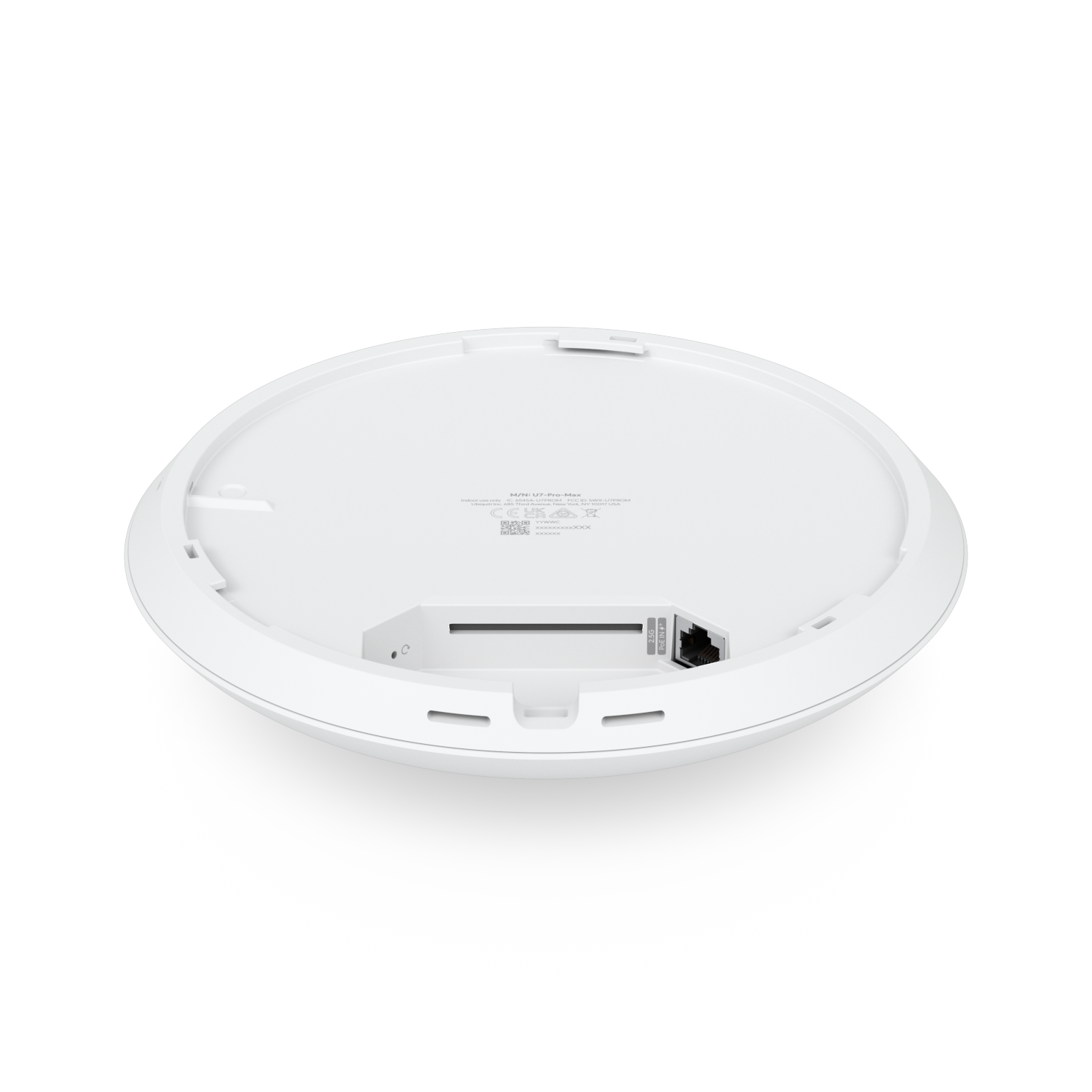

| Networking interface | (1) 1/2.5 GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE+ |
| Power supply | UniFi PoE switch |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 22W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 23 dBm 29 dBm 23 dBm |
| MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 4 x 4 2 x 2 |
| Throughput rate 2.4 GHz 5 GHz 6 GHz | 688 Mbps 8648 Mbps 5765 Mbps |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 4 dBi 6 dBi 5.9 dBi |
| LEDs | White/blue |
| Button | Factory reset |

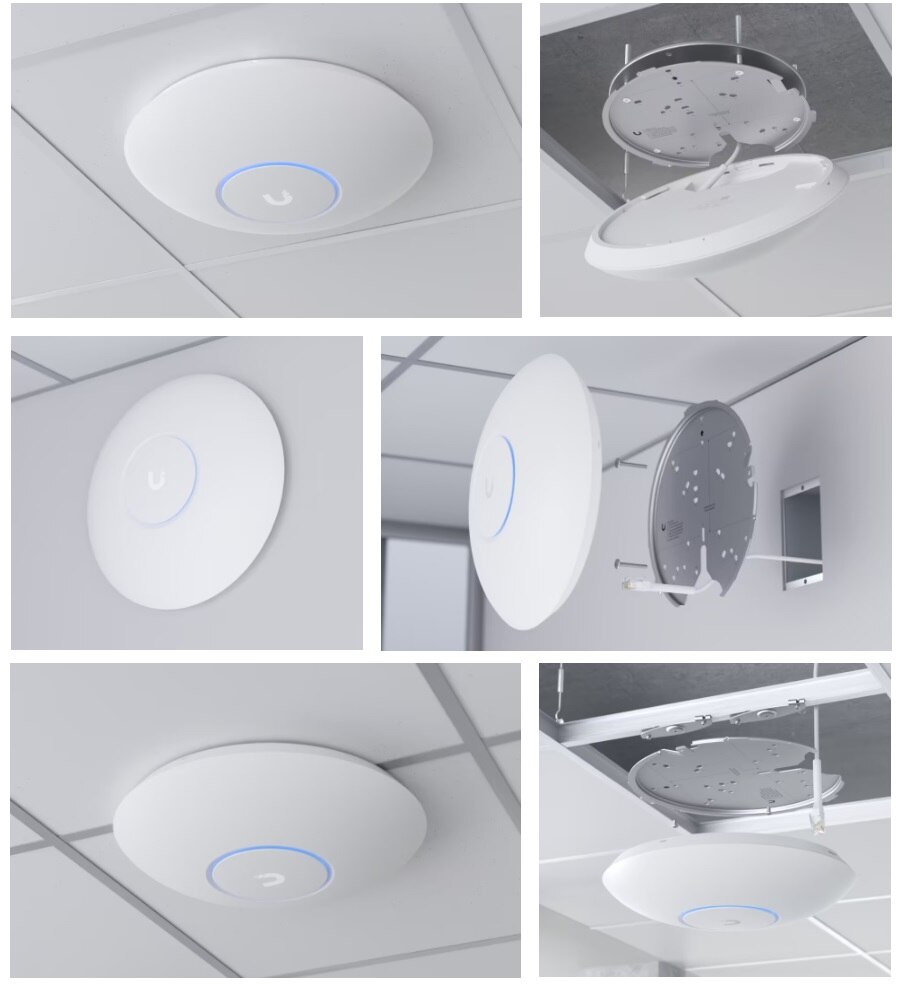

| Mounting | Wall, ceiling (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax/be |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 500+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11be (WiFi 7) 5 GHz 6 GHz | 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Application Requirements | |
| UniFi Network | Version 8.2.93 and later |
