Ubiquiti UniFi Flex Utility
- SKU: USW-Flex-Utility
$68.72
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information

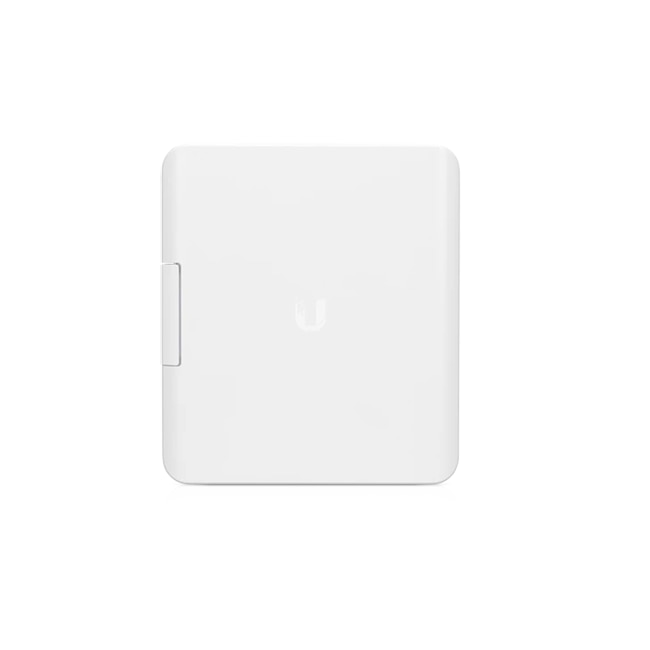

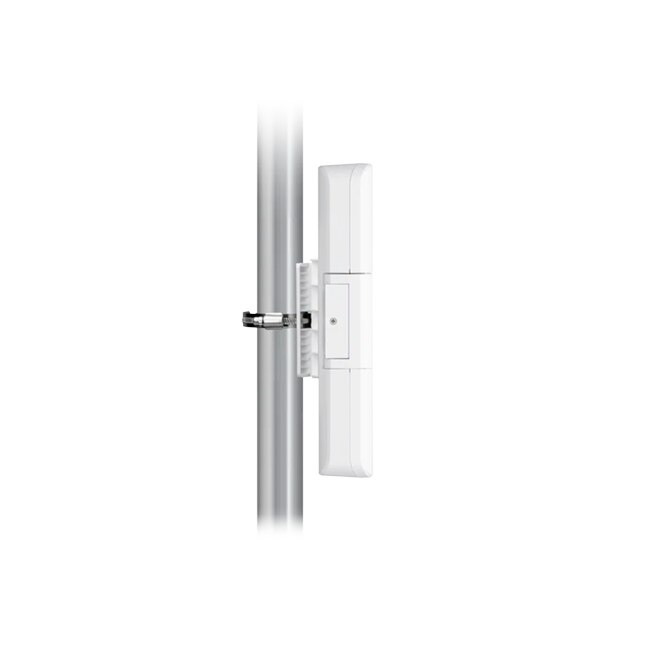

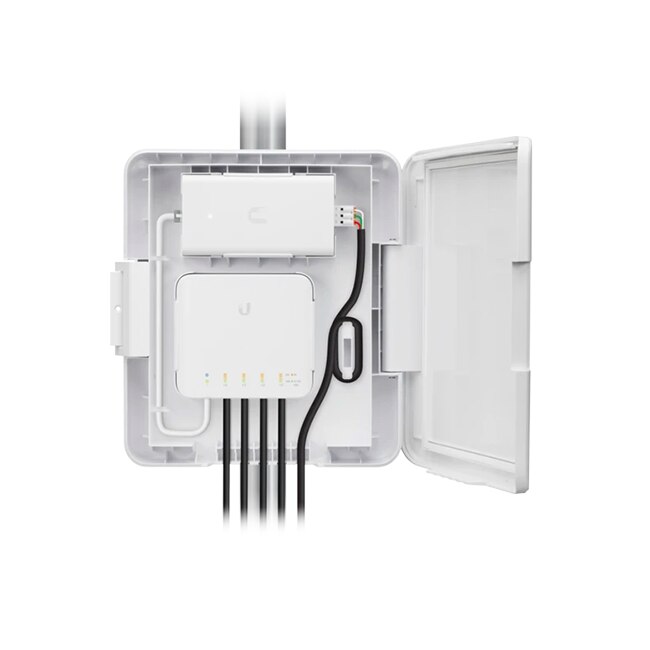

The Ubiquiti Switch Flex Utility is an outdoor weatherproof enclosure designed for use with the Switch Flex.
Specifications
Specifications USW-FLEX-UTILITY
| Dimensions | 118.5 x 63 x 34.7 mm (4.66 x 2.48 x 1.36") |
| Weight | 206 g (7.27 oz) |
| Output Voltage | 54V, 1.11A |
| Rated Voltage | 100-240VAC |
| Input Current | 1.5A (Max.) |
| Efficiency | > 86% |
| Output Ripple | 200mVpp |
| Line Regulation | < 1% |
| Load Regulation | < 3% |
| 4-Pair Powering | Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8- |
| Operating Temperature | -20 to 60˚ C (-4 to 140˚ F) |
| Storage Temperature | -30 to 70˚ C (-22 to 158˚ F) |
| Operating Humidity | 5 to 90%, Noncondensing |
| Surge Immunity | 4kV Difference and Common Mode |
