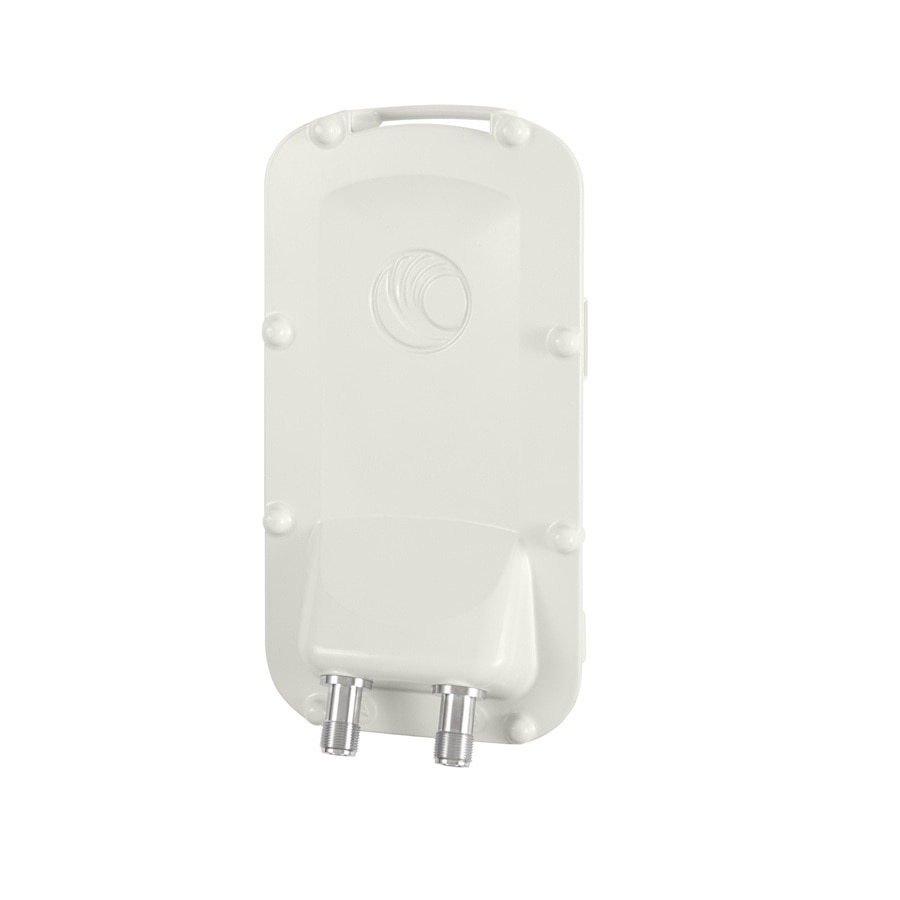

Cambium Networks PMP 450 5GHzi Connectorized SM N-Type Antenna
- SKU: C050045C001B
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
ISP Supplies supplies the Cambium Networks 5 GHz PMP 450i connectorized subscriber module (SM), containing an N-Type antenna connection. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.
Product Features:
• An ultra-wide band radio supports 4900 MHz to 5925 MHz with dynamic interference filtering, improved transmit power and better receive sensitivity.
• Rugged metal enclosure designed to meet IP-66 and IP-67 standards to withstand harsh environments.
• Dynamic Interference Filtering to provide industry leading noise isolation for improved performance.
• Updated FPGA and SoC architecture triples the processing power compared to PMP 450.
• Multifunction AUX port allows for greater flexibility for deployment by adding a camera or other PoE directly.
Specifications
Specifications C050045C001B
| Frequency | 4900 - 5925MHz |
| Channel Spacing | Configure on 2.5MHz increments |
| Channel Width | 5, 10, or 20MHz |
| Physical Layer | 2x2 MiMO OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
| Protocols | IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | HTTP, HTTPS, Telnet, FTP, SNMP v3 |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Max Range | 40mi (64km) |
| Latency | 3-5ms |
| Antenna Connection | 50ohm, N-Type |
| Gain | 23dBi external |
| Transmit Power Range | 40dB dynamic range |
| Maximum Transmit Power | 27dBm |
| Surge Supression | EN61000-4-5: 1.2us/50us, 500 V voltage waveform |
| Operating Temperature | -40 to 140deg F (-40 to 60deg C) |
| Power Consumption | 15W, 25W max, 55W max with Aux port PoE out |
| Input Voltage | 48-59 V DC, 802.3at compliant |
| Encryption | 56-bit DES, FIPS-197 128-bit AES |
